A/T System Description - System Diagram

For locations of each component on the vehicle, refer to Component Location Index.

• TCM, SBW Shifter Assembly, Paddle Shifter
• PCM
• Gauge Control Module

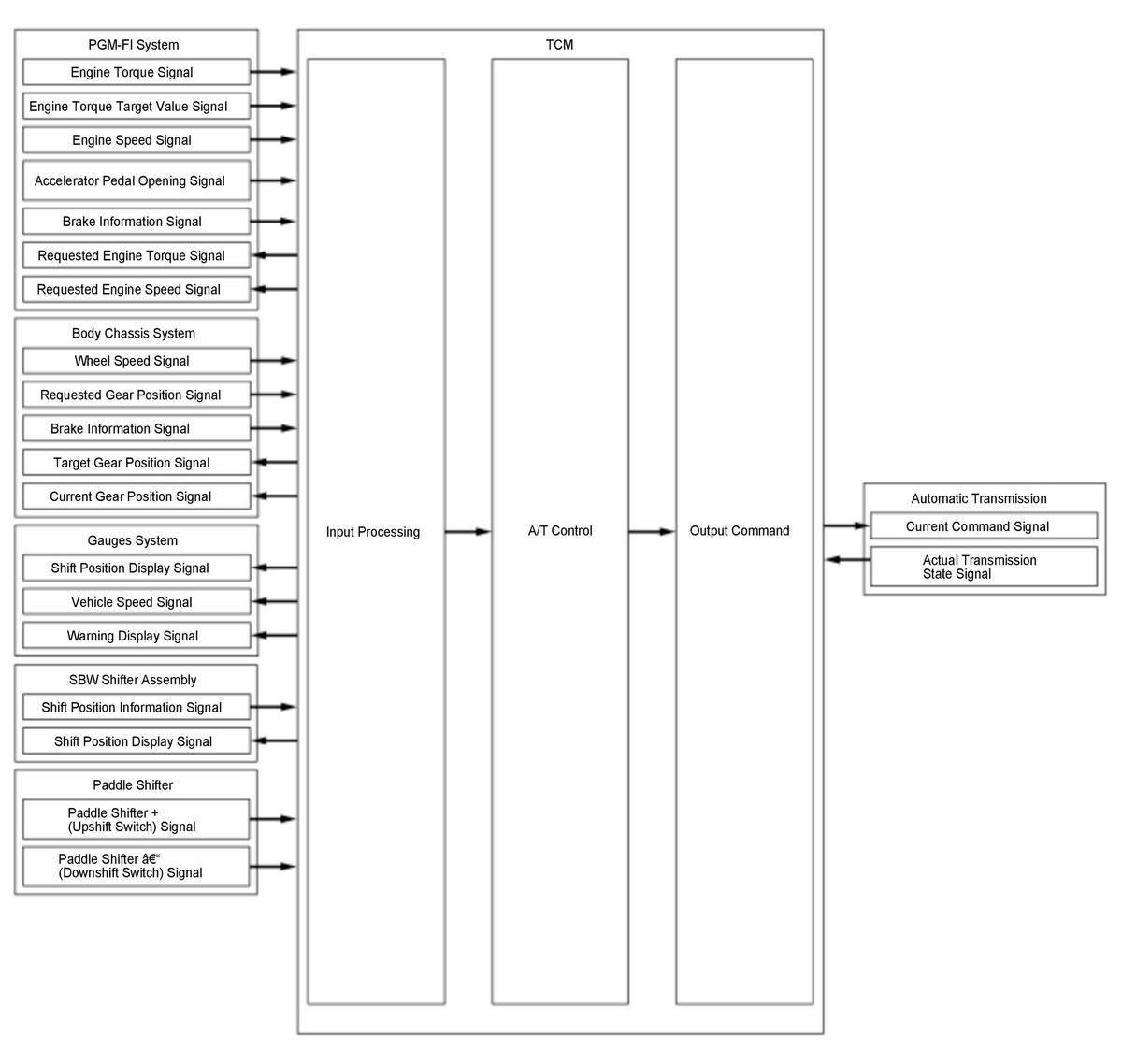

Electronic Control

Courtesy of HONDA, U.S.A., INC.

Hydraulic Control

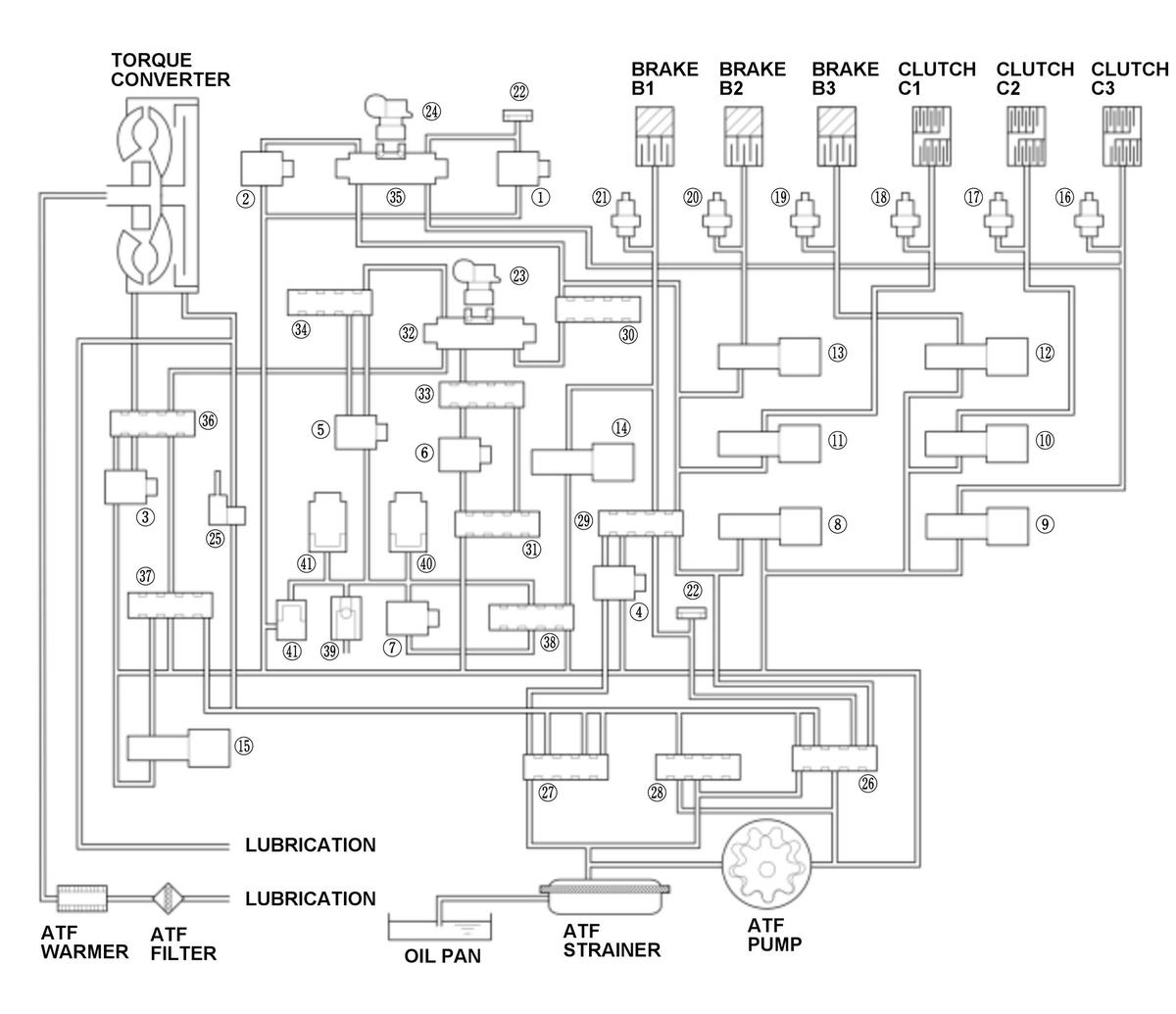

Circuit Diagram

Courtesy of HONDA, U.S.A., INC.

: Shift Solenoid Valve A	: Transmission Fluid Pressure Switch
: Shift Solenoid Valve B	: Parking Actuator Valve Stroke Sensor
: Shift Solenoid Valve C	: Two-Way Clutch Actuator Valve Stroke Sensor
: Shift Solenoid Valve D	: ATF Temperature Sensor
: Shift Solenoid Valve E	: Main Regulator Valve
: Shift Solenoid Valve F	: Lubrication Regulator Valve
: Shift Solenoid Valve G	: Torque Converter Regulator Valve
: Clutch Pressure Control Solenoid Valve A	: B1 Cut Valve
: Clutch Pressure Control Solenoid Valve B	: SD Cut Valve
: Clutch Pressure Control Solenoid Valve C	: SF Cut Valve
: Clutch Pressure Control Solenoid Valve D	: Parking Actuator Valve
: Clutch Pressure Control Solenoid Valve E	: Parking Inhibitor Valve
: Clutch Pressure Control Solenoid Valve F	: Parking Ball Valve
: Clutch Pressure Control Solenoid Valve G	: Two-Way Clutch Actuator Valve
: Clutch Pressure Control Solenoid Valve H	: Lock-Up Shift Valve
: Transmission Fluid Pressure Sensor A	: Lock-Up Control Valve
: Transmission Fluid Pressure Sensor B	: Idle Stop Ball Valve
: Transmission Fluid Pressure Sensor C	: Accumulator Relief Valve
: Transmission Fluid Pressure Sensor D	: Accumulator
: Transmission Fluid Pressure Sensor E	: Reducer
: Transmission Fluid Pressure Sensor F

Operation Chart
