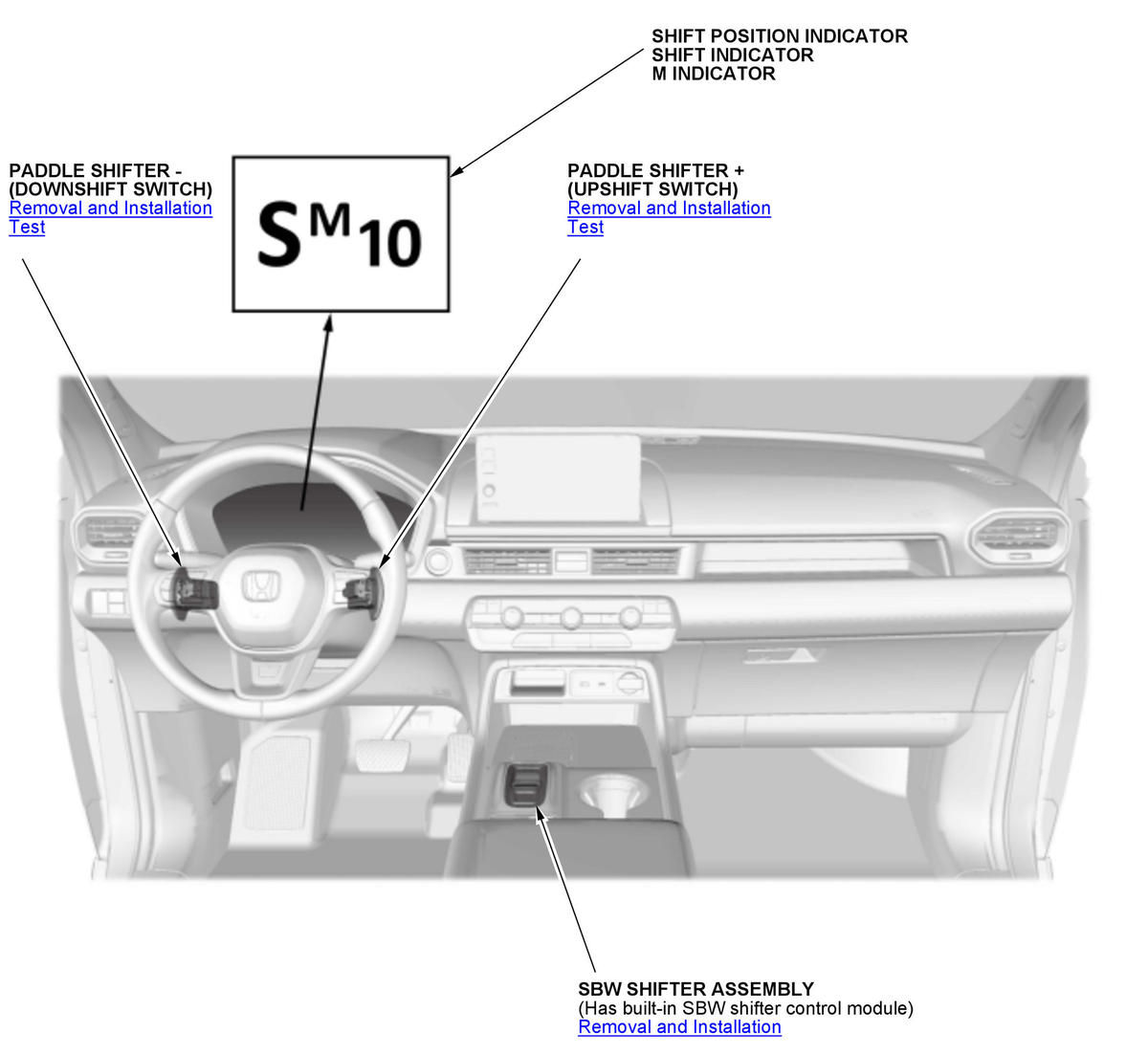

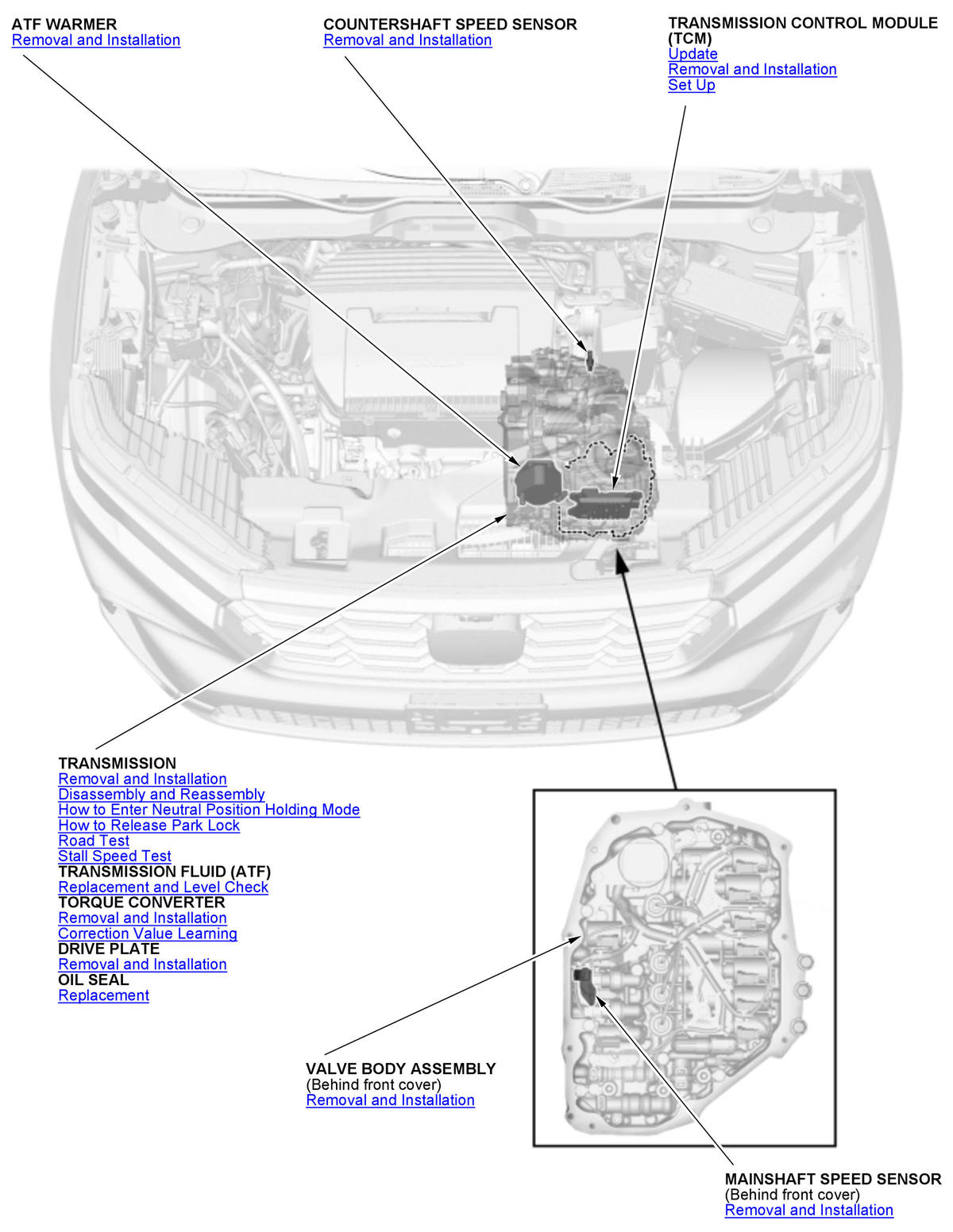

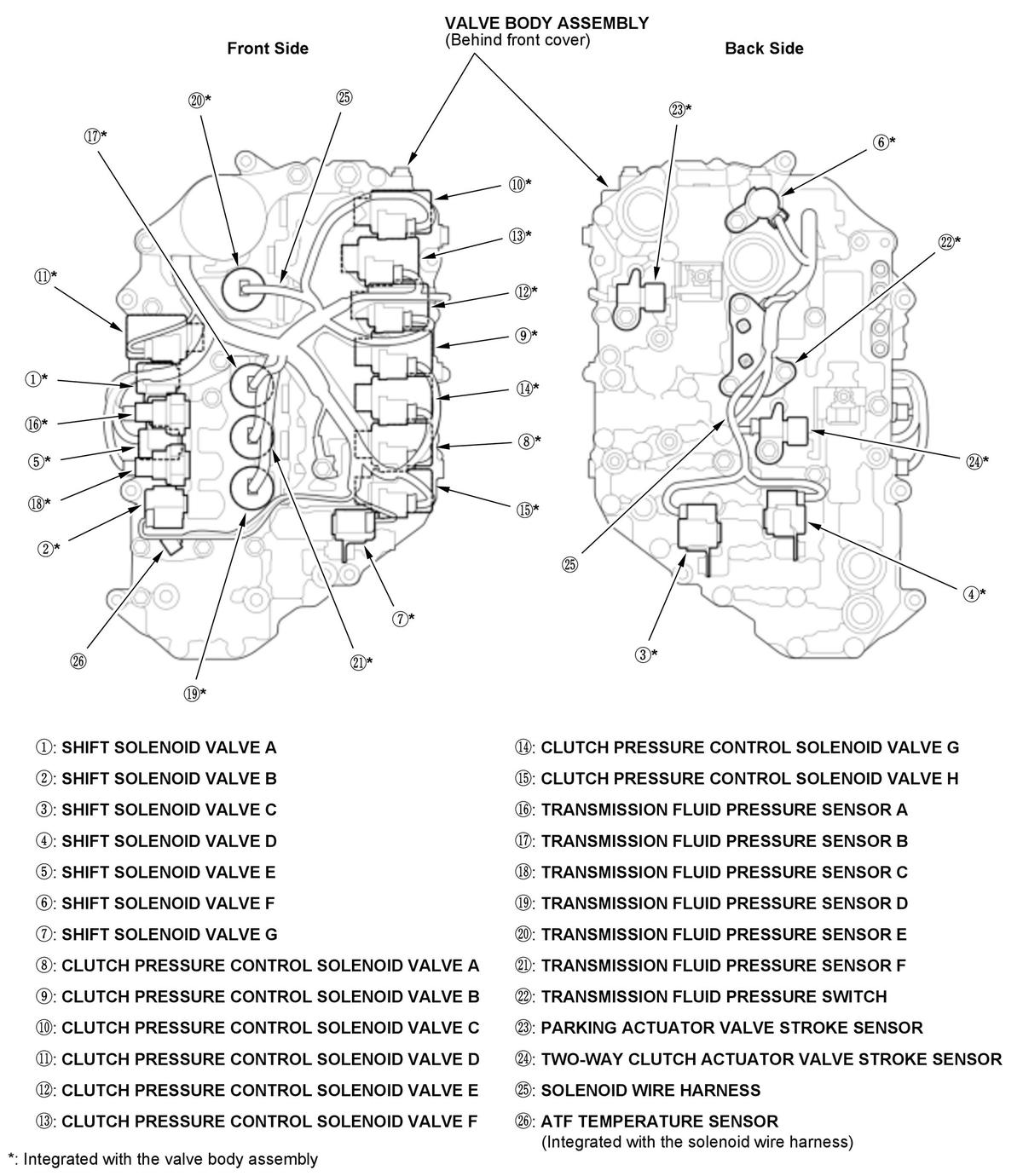

Automatic Transmission Component Location Index

For relationships between signals in a system, refer to System Diagram.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
