Fuel and Emissions Systems Component Location Index

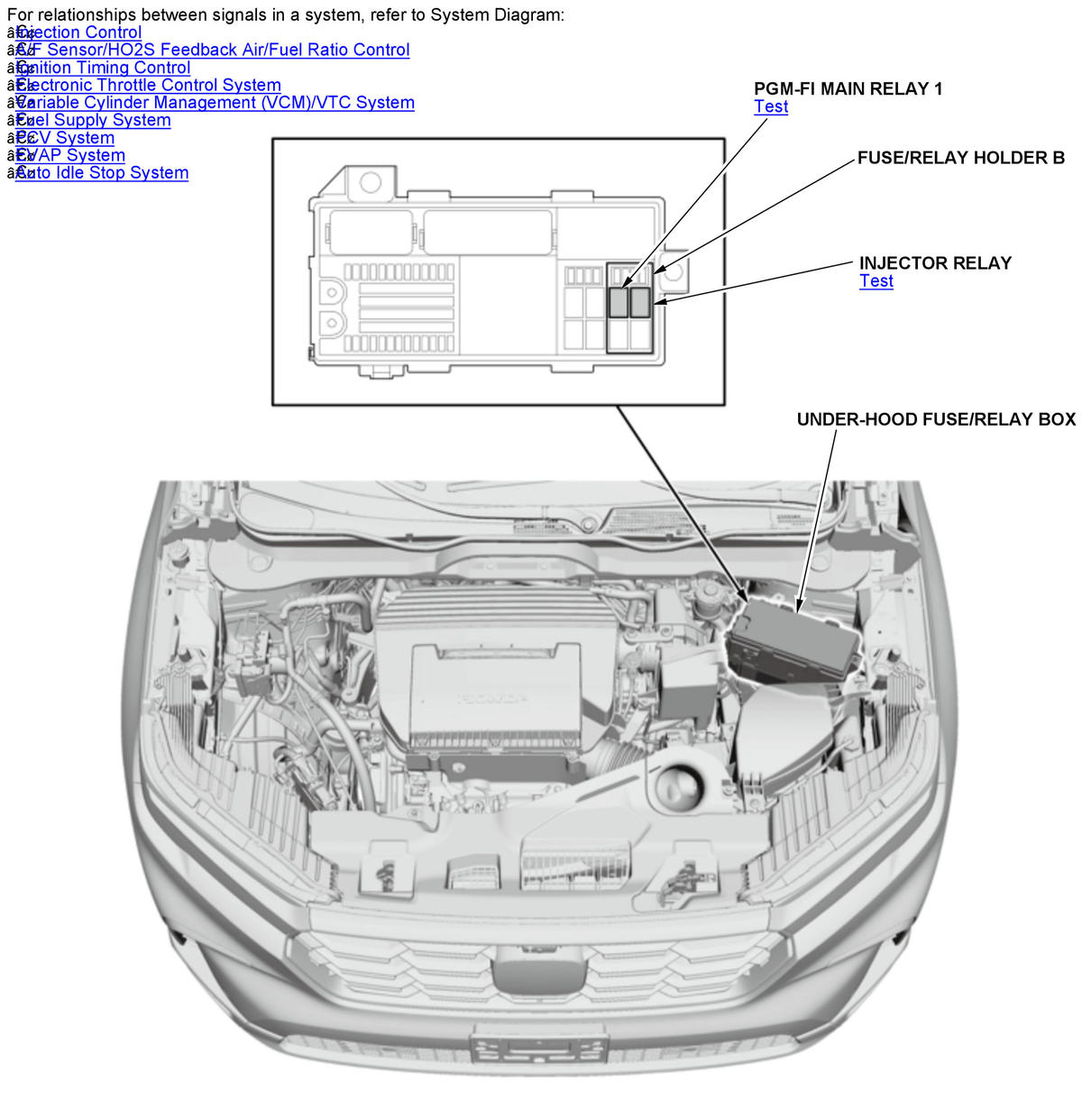

GHH578894Courtesy of HONDA, U.S.A., INC.

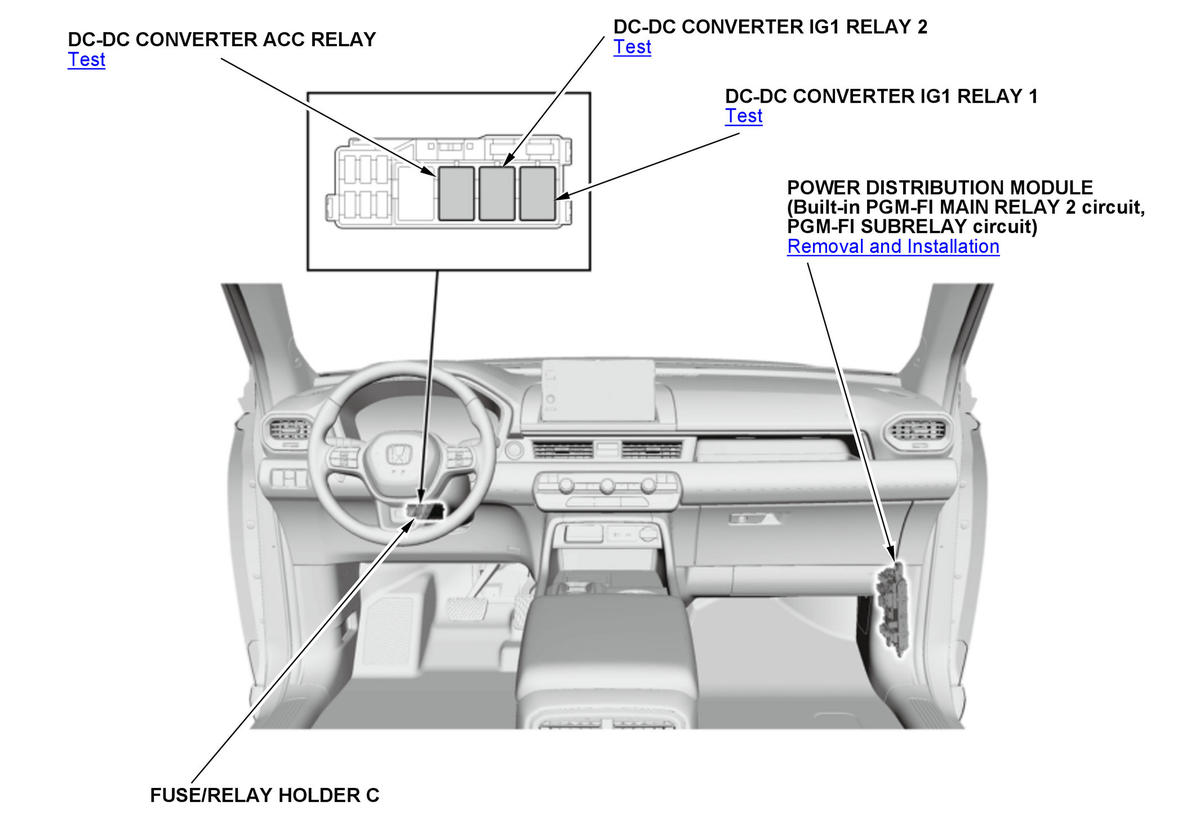

GHH578895Courtesy of HONDA, U.S.A., INC.

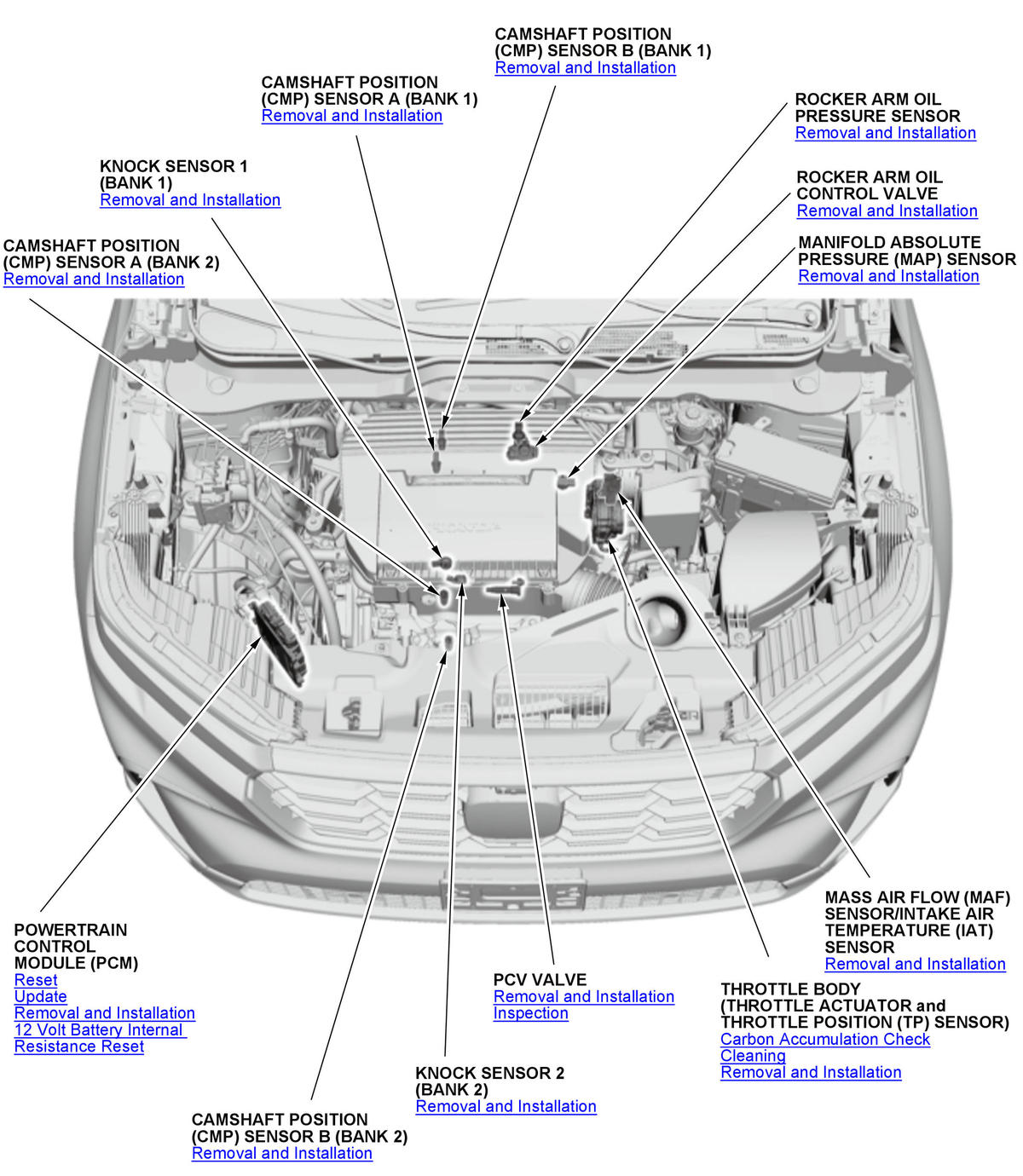

GHH578896Courtesy of HONDA, U.S.A., INC.

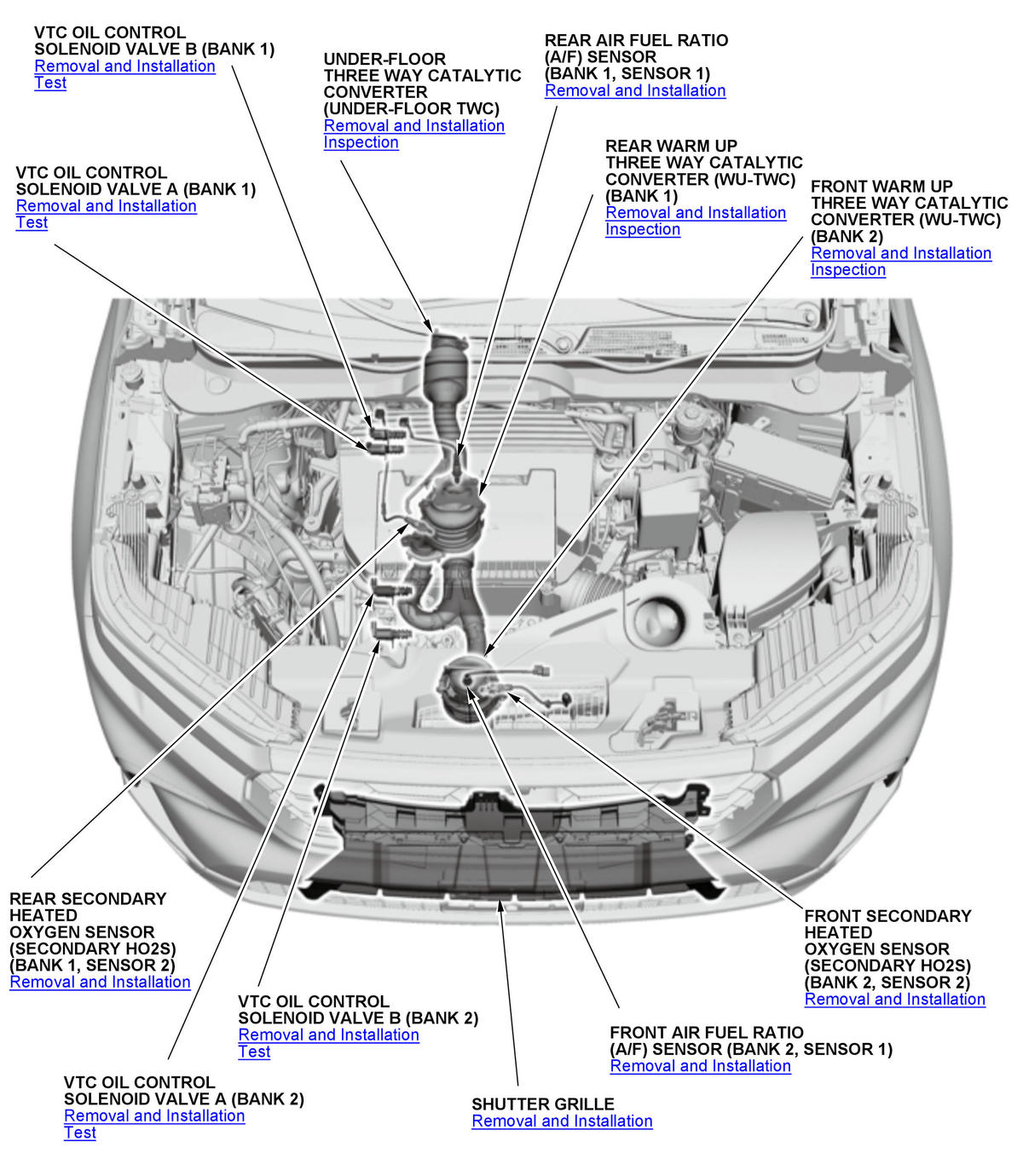

GHH578897Courtesy of HONDA, U.S.A., INC.

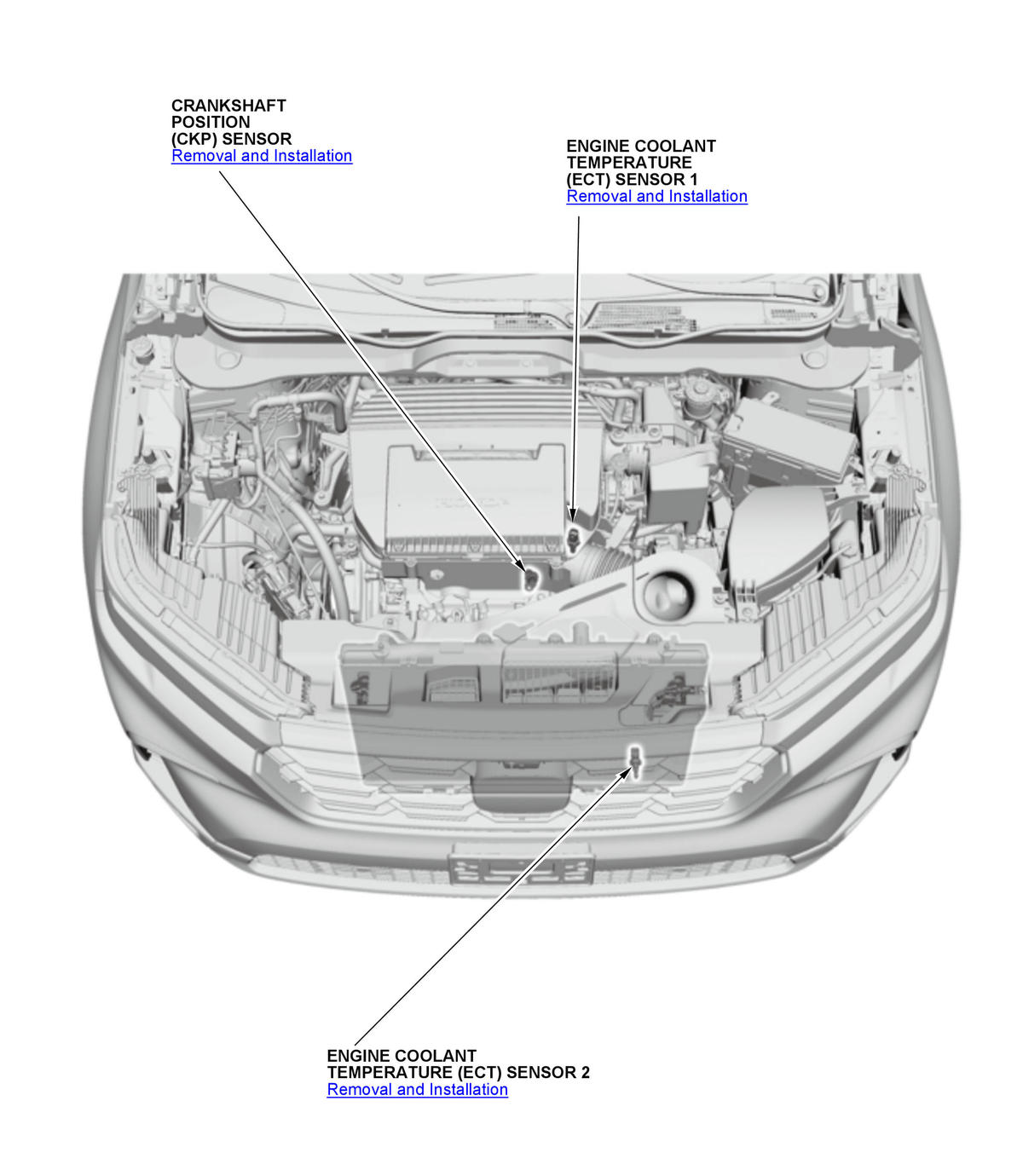

GHH578898Courtesy of HONDA, U.S.A., INC.

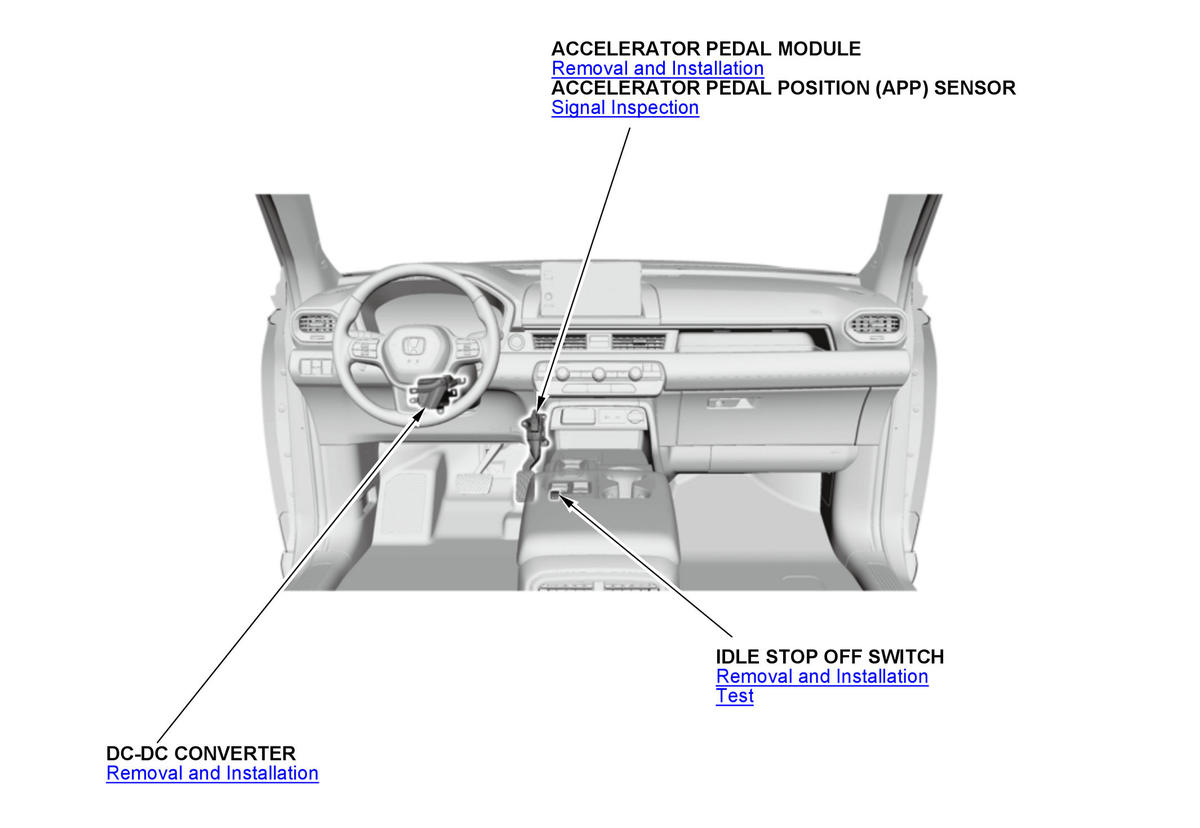

GHH578899Courtesy of HONDA, U.S.A., INC.

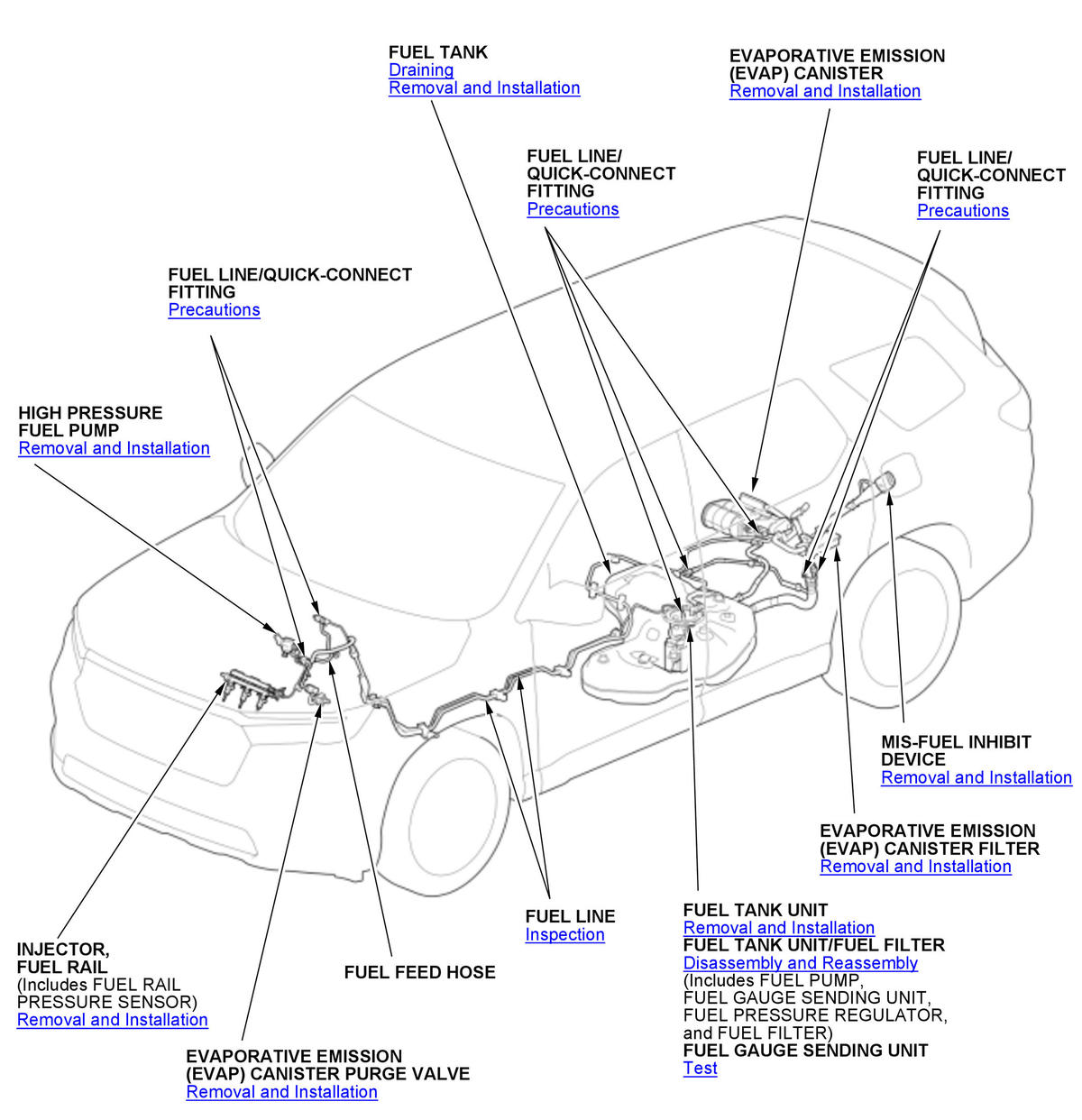

GHH578900Courtesy of HONDA, U.S.A., INC.

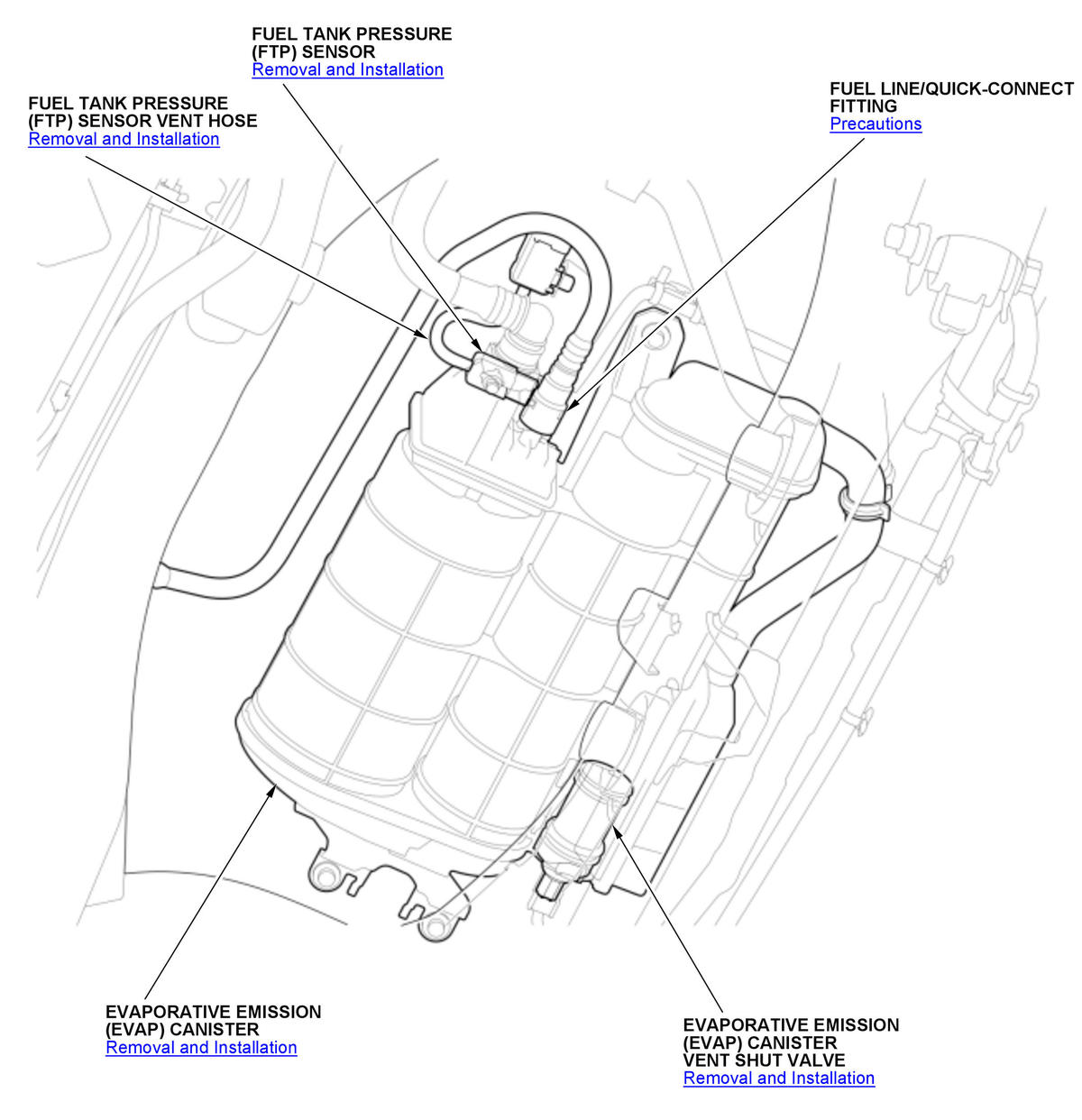

GHH578901Courtesy of HONDA, U.S.A., INC.
