Repair Procedure

How to use this manual .

WARNING:

SRS components are located in this area. Before doing repairs or service:
- Review the SRS component locations .
- Review the precautions and procedures .

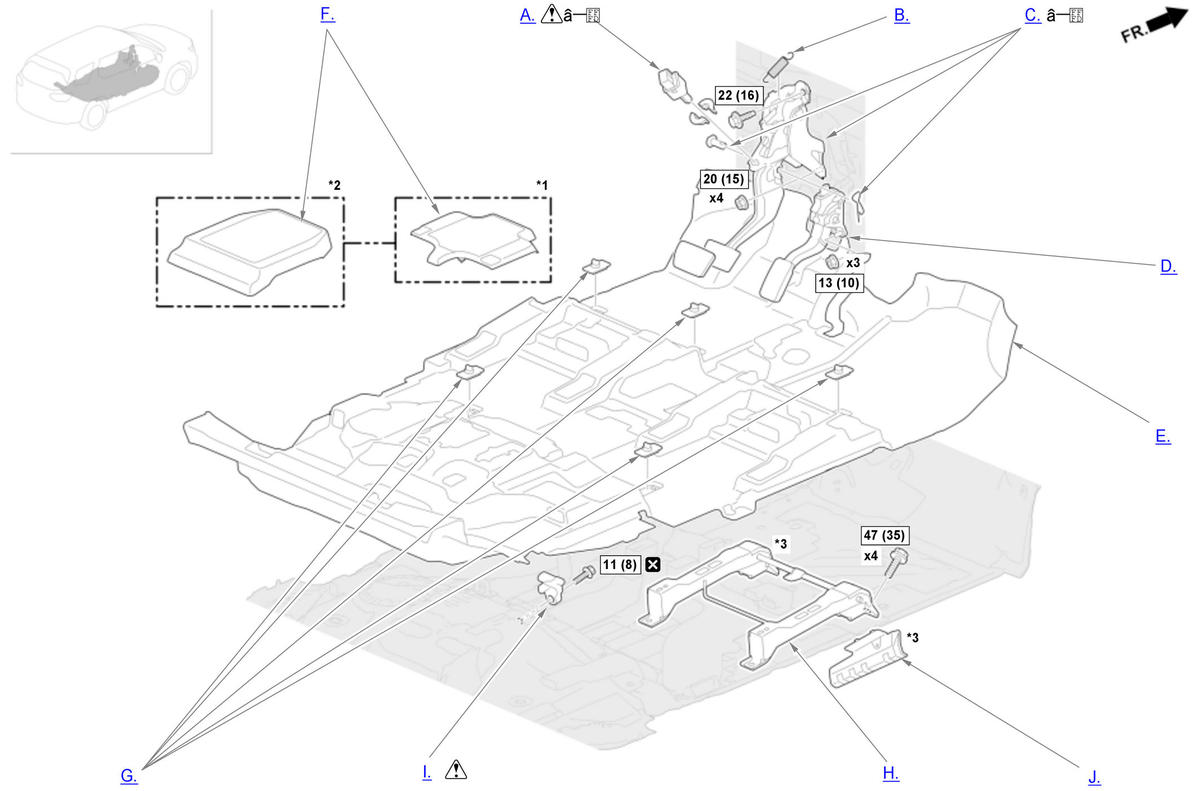

Fig 1: Pedals Area Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: With Second Row Center Seat
*2: Without Second Row Center Seat
*3: Part(s) are shown for one side only as the procedure is the same for both sides.

A.-
WARNING:

Do not connect the brake pedal position switch connector with the brake pedal position switch removed. The engine may start if the start/stop button is pressed as the system interprets that the brake pedal is depressed. Unintended starting of the engine is dangerous.

Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

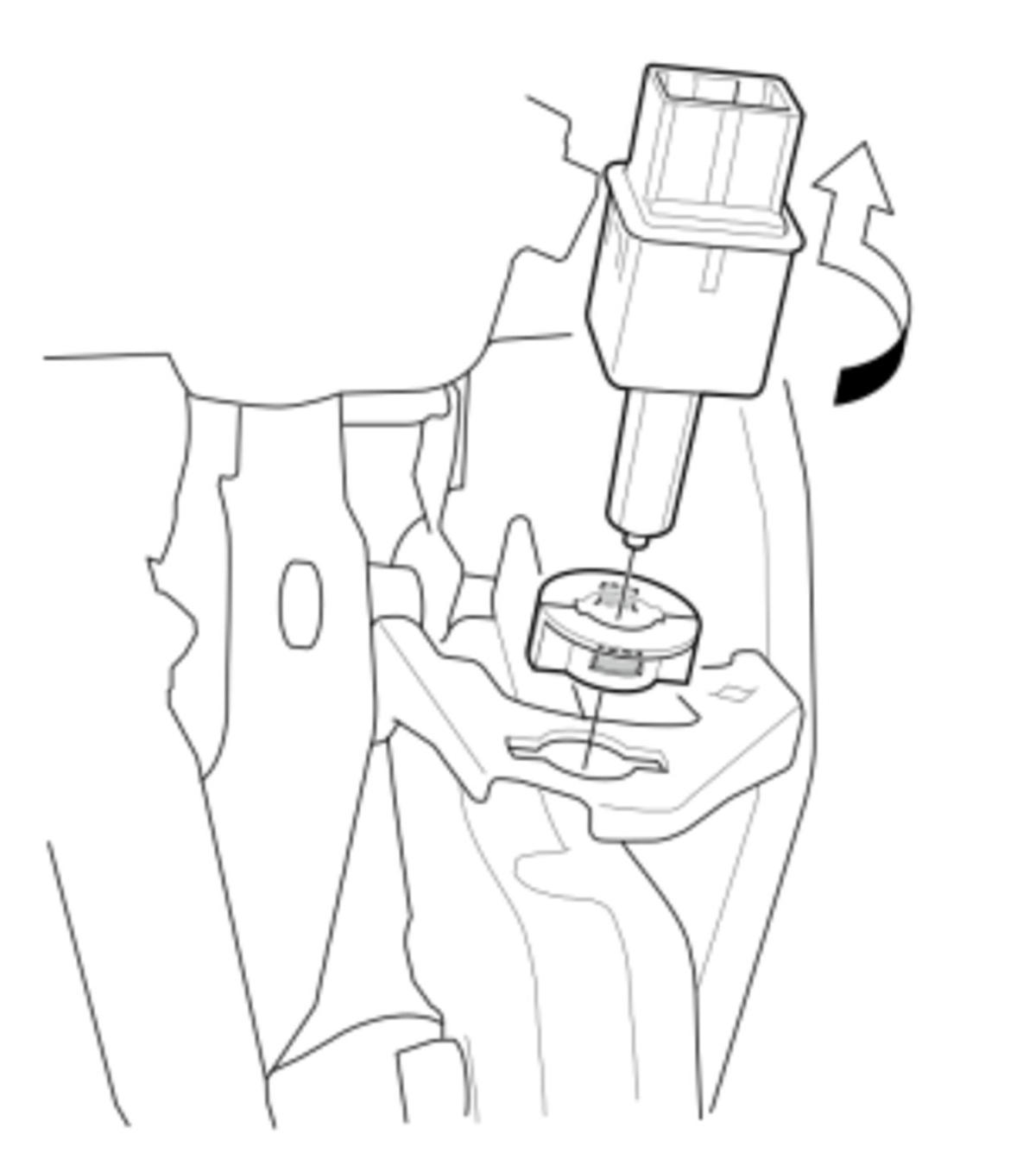

Removal
- Refer to the figure.
After Installation
- Brake Pedal Position Switch Adjustment

B.-

Key Information

Do the following before starting your work.

Remove:

Driver's Knee Airbag

Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Installation

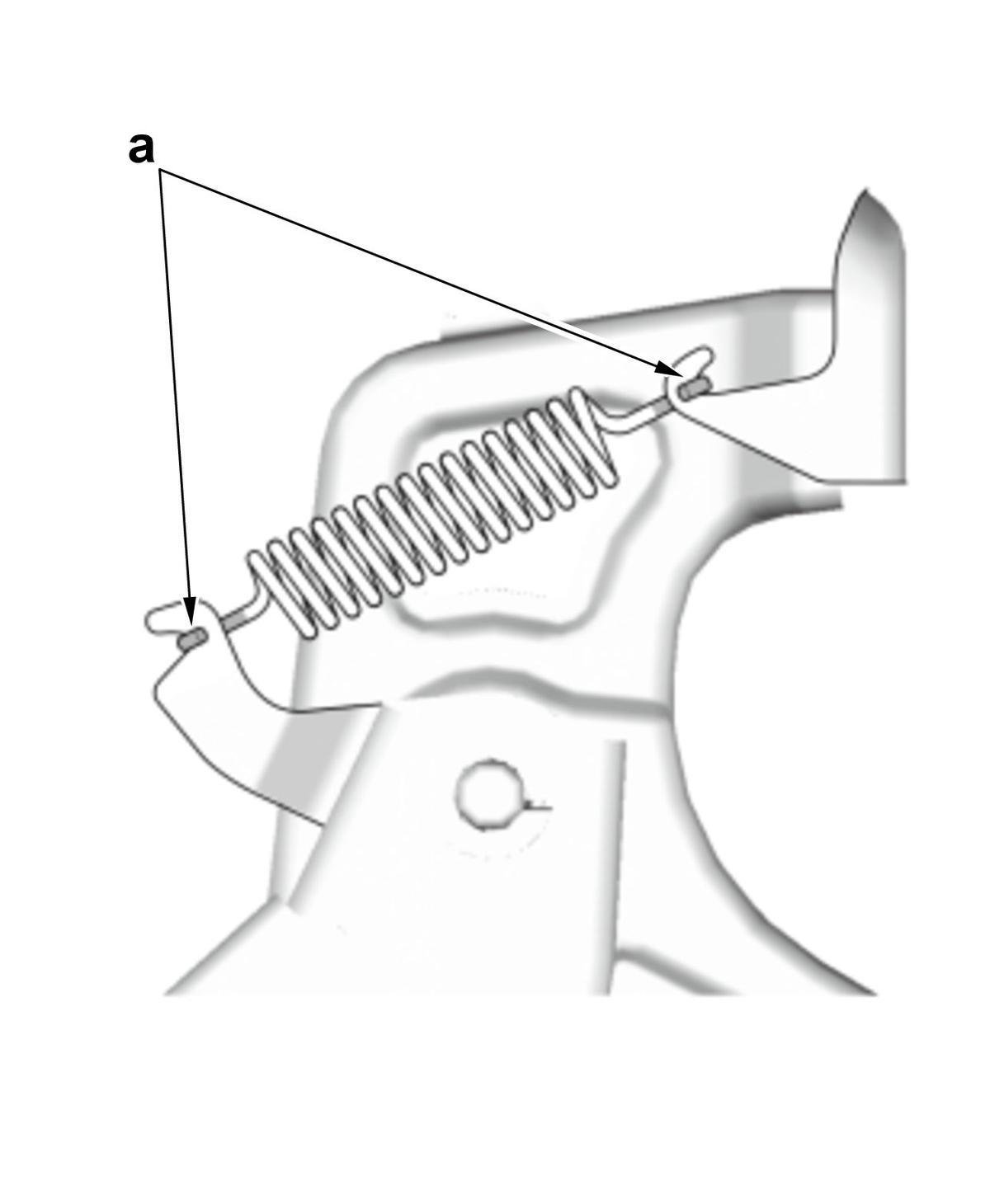

Lubricant Specifications

Position	Type
a	Multipurpose Grease

C.-

Key Information

Do the following before starting your work.

Remove:

Sub-Procedure

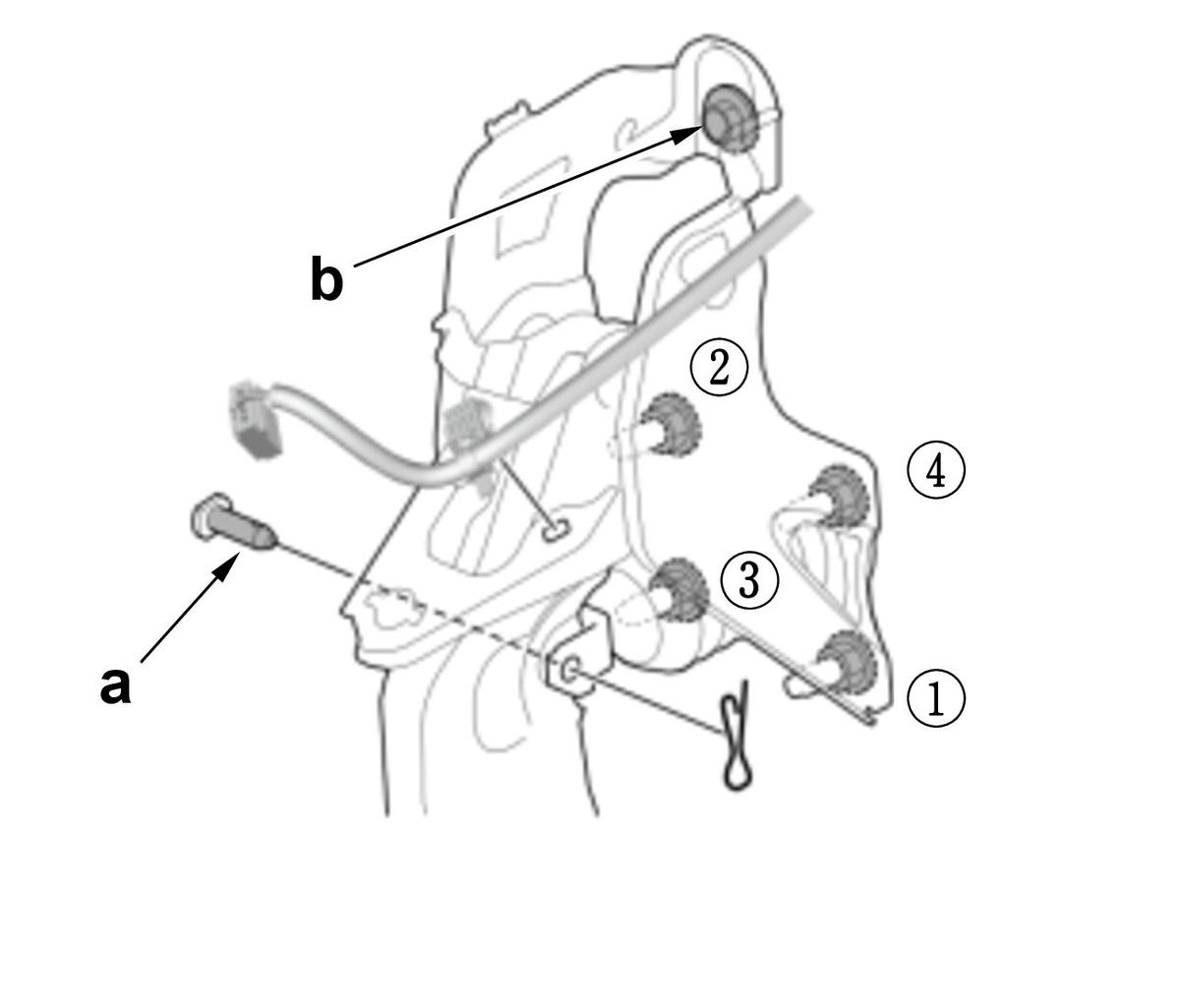

Figure 1

Courtesy of HONDA, U.S.A., INC.

Installation

Lubricant Specifications (Figure 1)

Position	Type
a	Multipurpose Grease

Tightening Procedure (Figure 1)

Step	Operation	Object	Specification
1	Tighten	All nuts	→ → →
2	Tighten	Bolt (b)	-

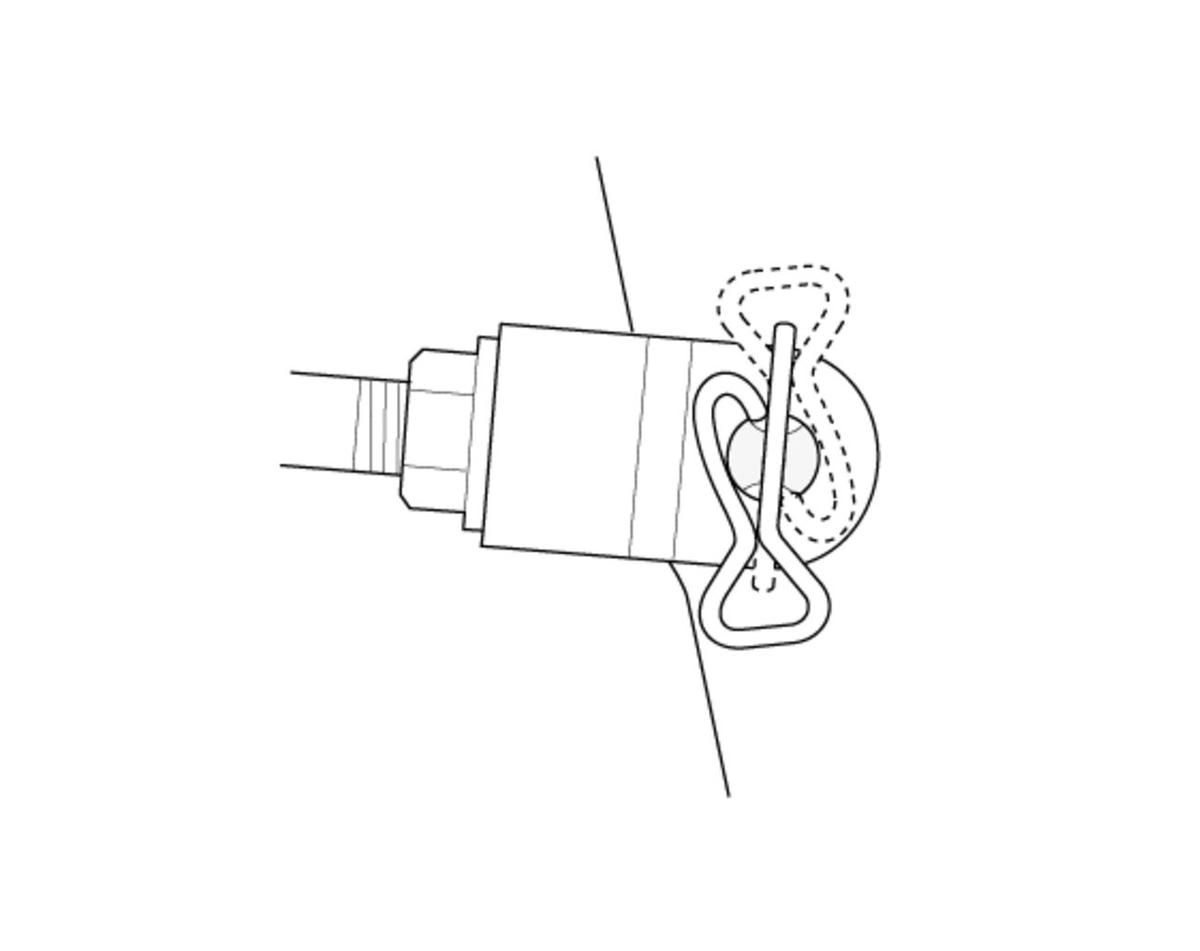

Figure 2

Courtesy of HONDA, U.S.A., INC.

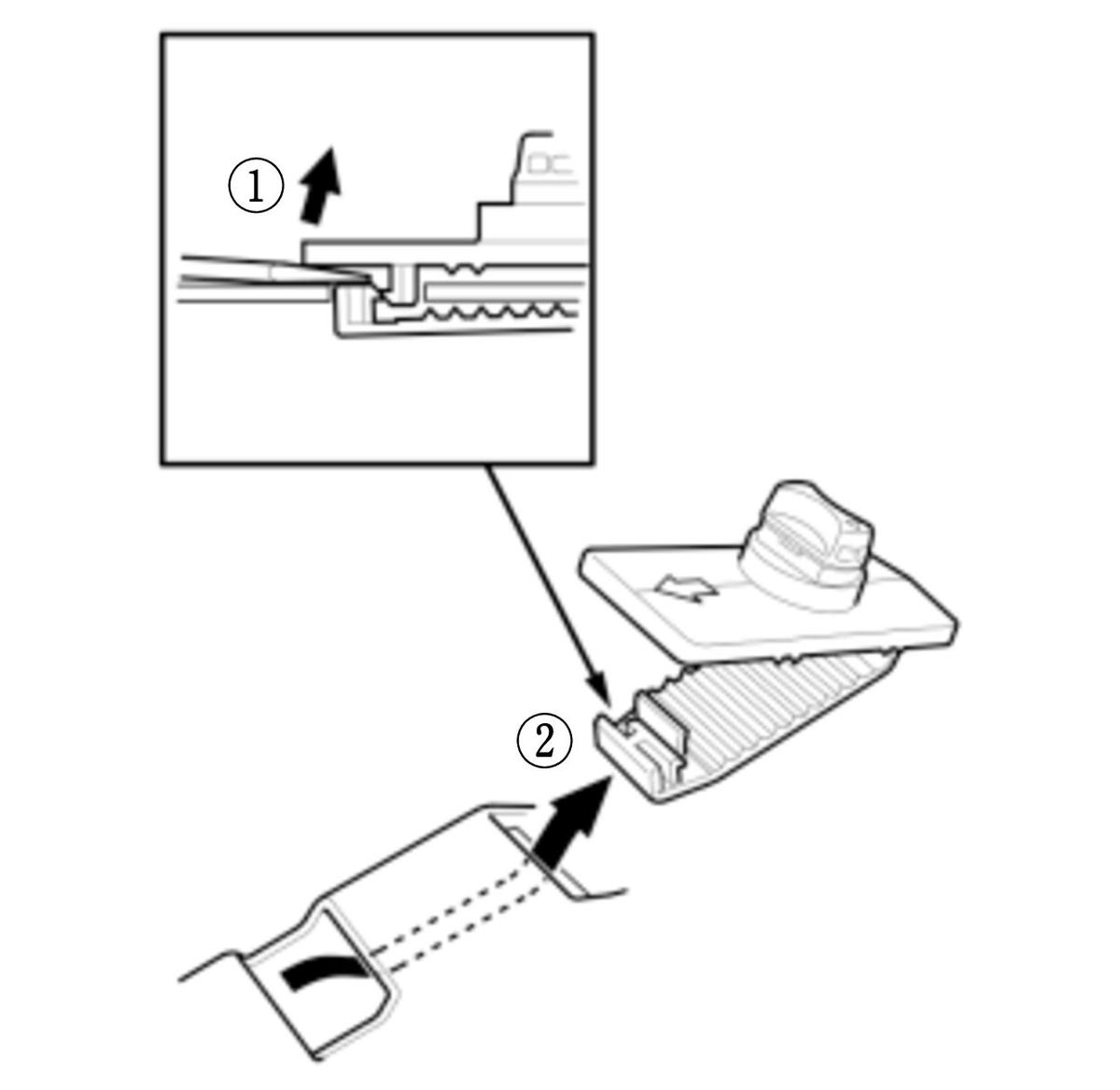

Install the lock pin as shown. (Figure 2)

After Installation

Brake Pedal Position Switch Adjustment

D.-
Sub-Procedure

Removal

NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
E.-
Key Information

Do the following before starting your work.

Remove:
- Driver's Seat
- Passenger's Seat
- Second Row Seat Area Parts
  - Both Second Row Seats
  - Second Row Center Seat (With Second Row Center Seat)
  - Center Rear Step Garnish
- Third Row Seat Cushion Cover/Pad/Frame
- Steering Joint Cover
- Center Console Area Parts
  - Both Rear Heater Joint Ducts
  - Console Duct
- Interior Trim Area Parts
  - Front Door Opening Seal (as needed)
  - Rear Door Opening Seal (as needed)
  - Both Rear Side Trim Panels
  - Both Kick Panels
  - Both B-Pillar Lower Trims

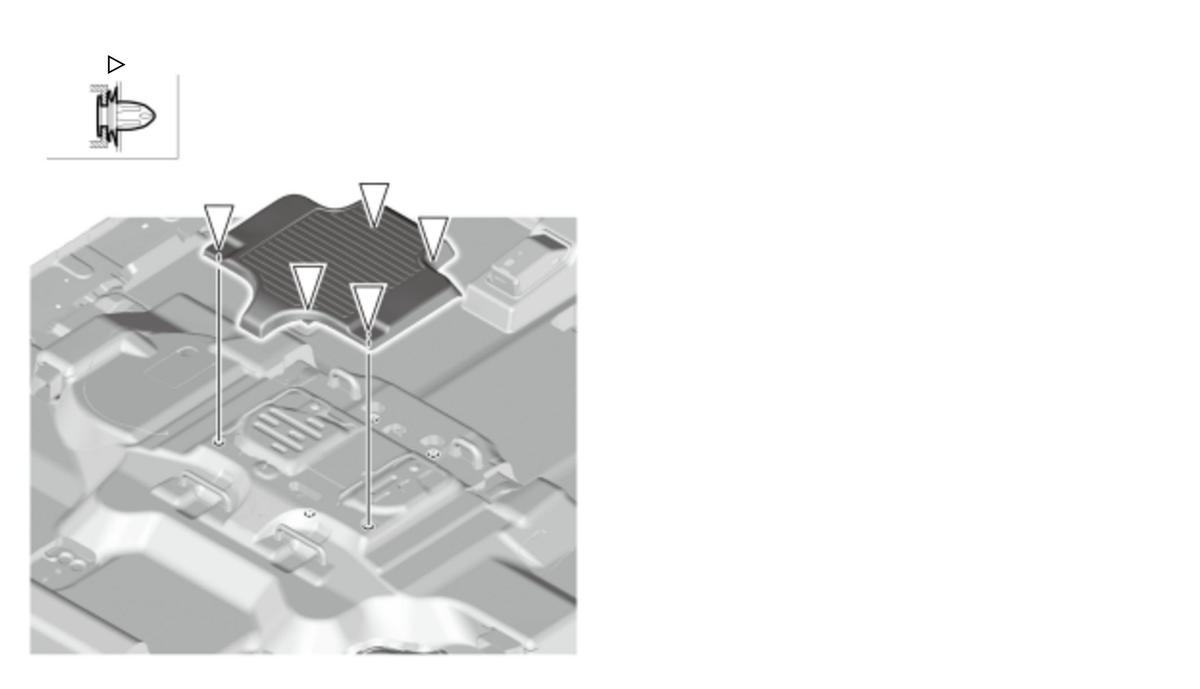

Removal

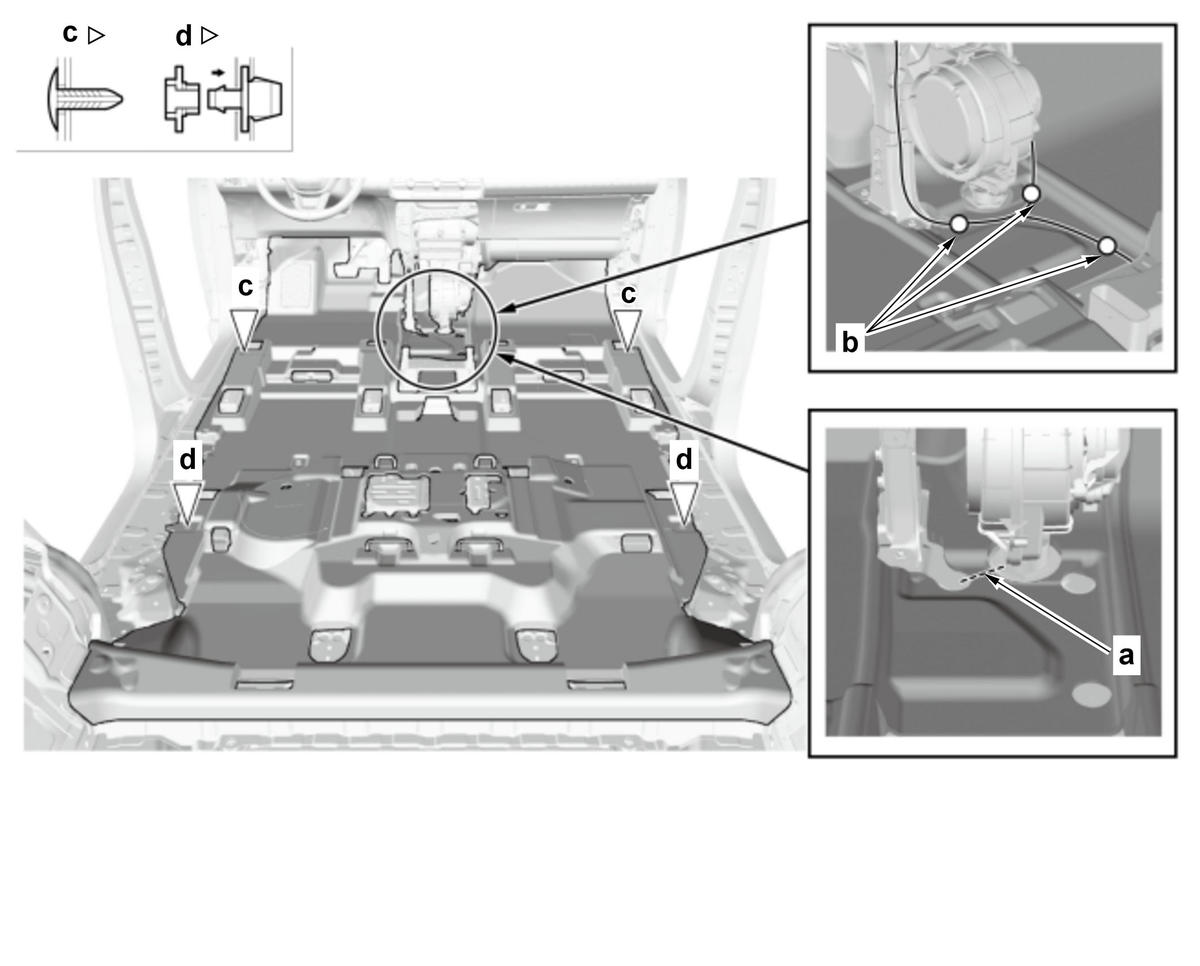

- Cut the carpet in the area (a) as shown.
- Remove the harness clips (b).
Courtesy of HONDA, U.S.A., INC.
F.-
Sub-Procedure

? Removal
- Refer to figure 1 and 2.

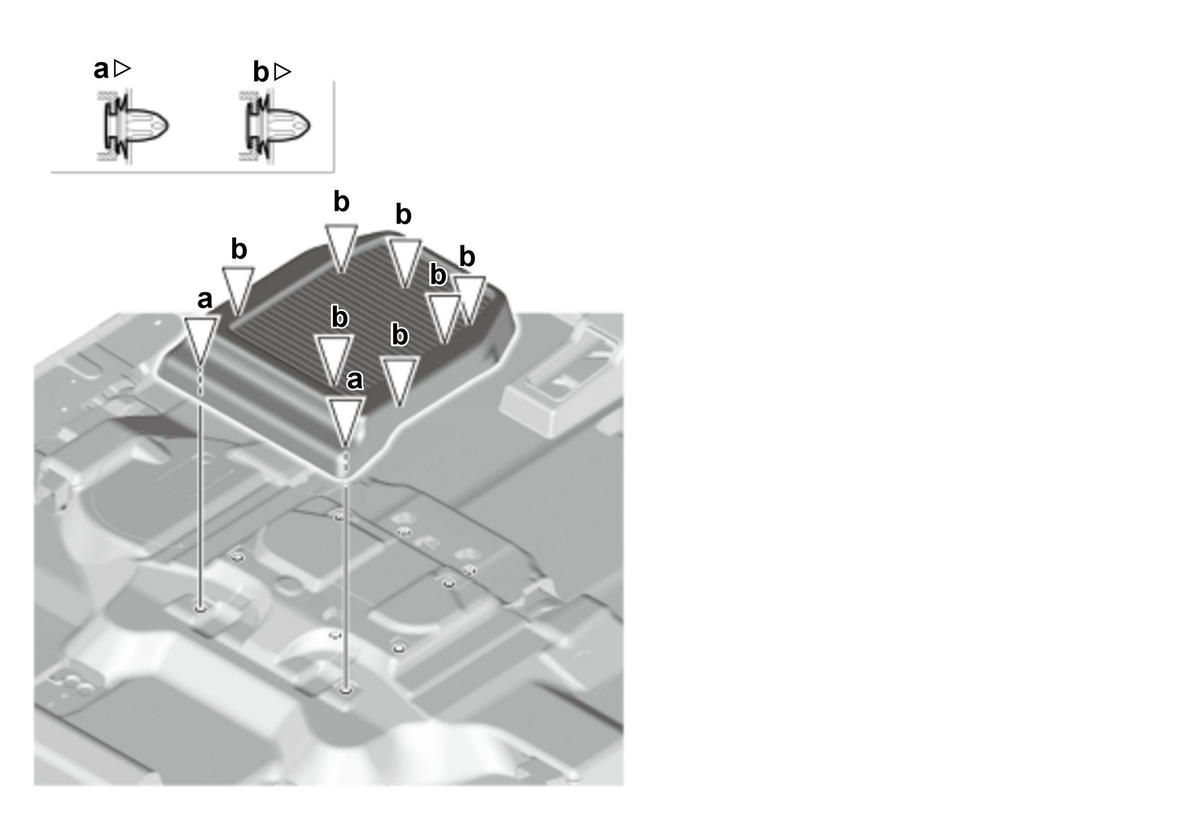

Figure 1 (Without Second Row Center Seat)

Courtesy of HONDA, U.S.A., INC.

Figure 2 (With Second Row Center Seat)

Courtesy of HONDA, U.S.A., INC.

G.-

Sub-Procedure

Figure 1

Courtesy of HONDA, U.S.A., INC.

? Removal

Refer to figure 1.

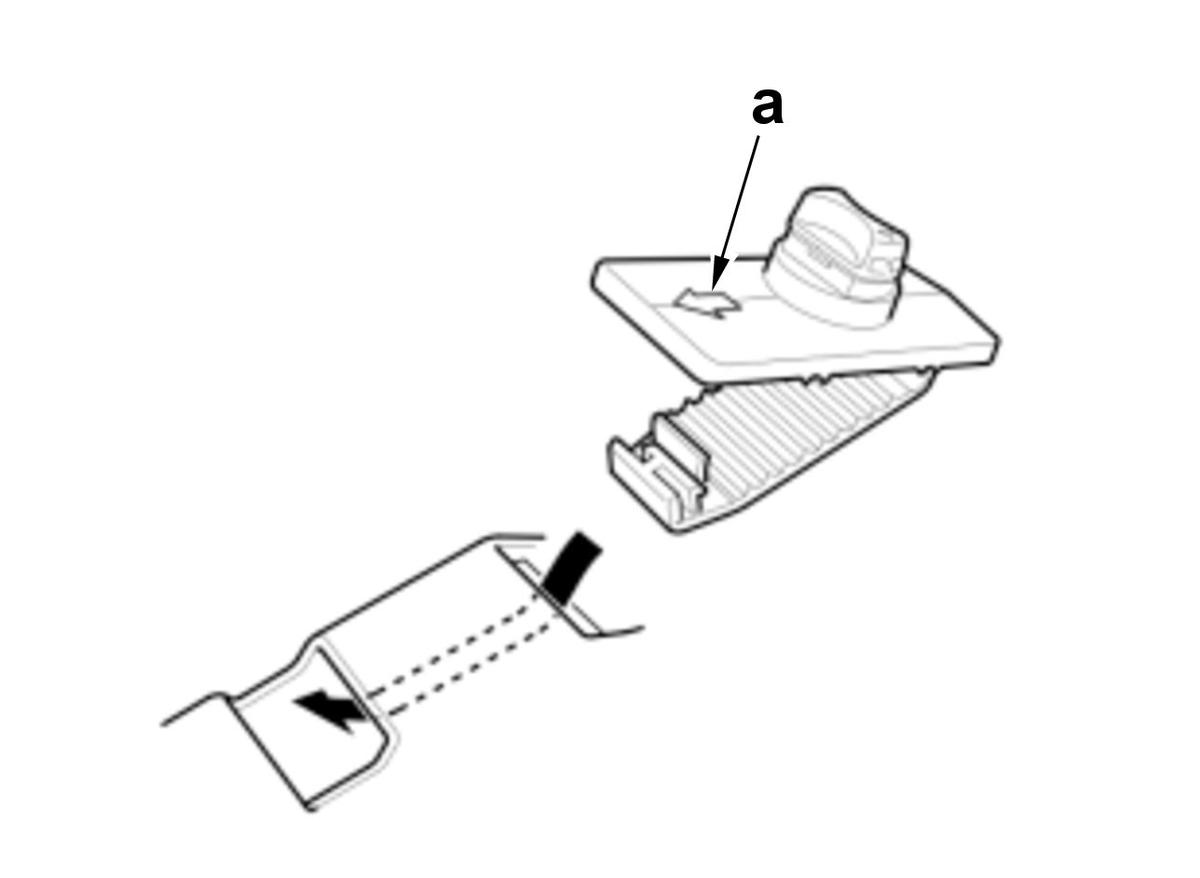

Figure 2

Courtesy of HONDA, U.S.A., INC.

Installation

Refer to figure 2.

Installation Directions

Position	Direction
a	Vehicle Front Side

H.-

Key Information

Do the following before starting your work.

Remove:

Steering Joint Cover (Front Seat Riser Left Side)
Driver's Seat (Front Seat Riser Left Side)
Passenger's Seat (Front Seat Riser Right Side)
Second Row Seat
Interior Trim Area Parts
- Front Door Opening Seal (as needed)
- Rear Door Opening Seal (as needed)
- Kick Panel
- B-Pillar Lower Trim
- Rear Side Trim Panel
Carpet (as needed)

Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Installation

Refer to the figure.

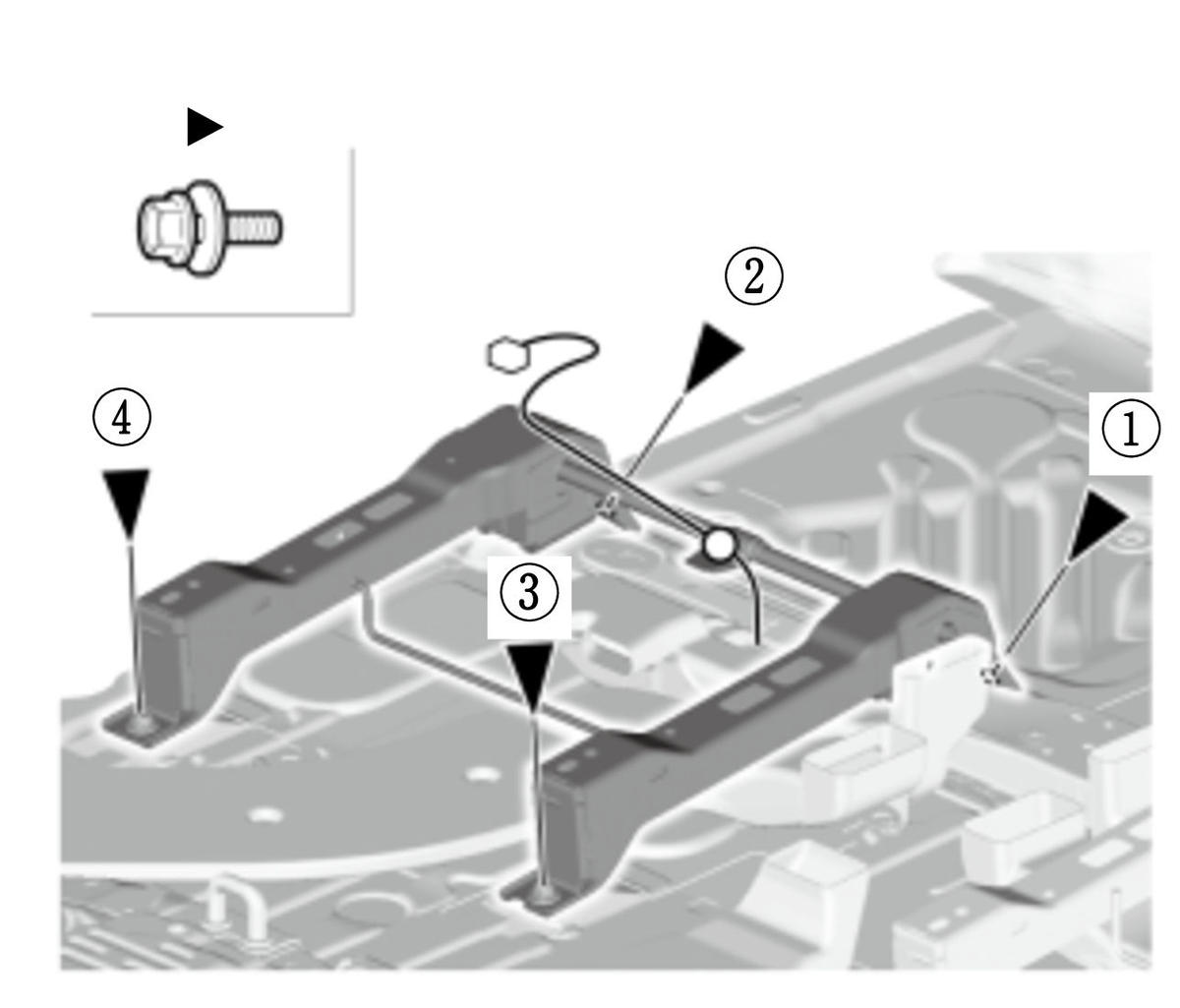

Tightening Procedure

Step	Operation	Object	Specification
1	Hand Tighten	All Bolts	→ → →
2	Tighten	All Bolts	→ → →

I.-
WARNING:
- Review the precautions and procedures before doing repairs or service .
- Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
NOTICE:

If you are replacing the rear safing sensor after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal () or SRS Component Replacement/Inspection After Deployment () for a complete list of other parts that must also be replaced.

Key Information

Do the following before starting your work.

Remove:
- Second Row Seat Area Parts
  - Both Second Row Seats
  - Second Row Center Seat (With Second Row Center Seat)
  - Center Rear Step Garnish
- Third Row Seat Cushion Cover/Pad/Frame
- Interior Trim Area Parts
  - Both Front Door Opening Seals (as needed)
  - Both Rear Door Opening Seals (as needed)
  - Both B-Pillar Lower Trims
  - Both Rear Side Trim Panels
- Carpet (as needed)
Preconditions
- 12 Volt Battery Negative Terminal Disconnected
Sub-Procedure

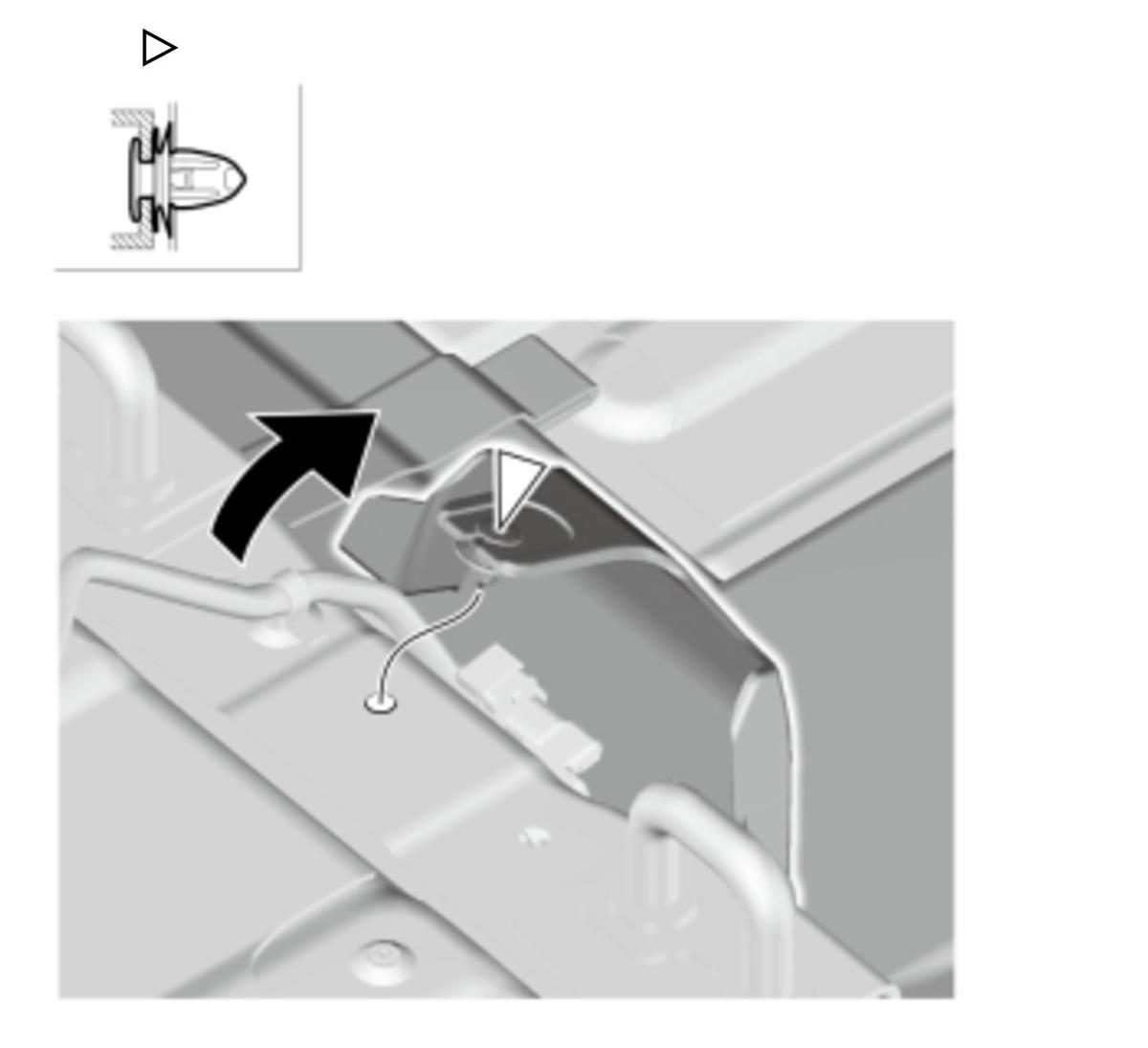

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.

Installation

NOTICE:

Be careful not to bump (by impact wrench, hammer, etc.) the area around the rear safing sensor.

After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
J.-
Key Information

Do the following before starting your work.

Remove:
- Steering Joint Cover (Front Seat Riser Left Side)
- Driver's Seat (Front Seat Riser Left Side)
- Passenger's Seat (Front Seat Riser Right Side)
- Second Row Seat
- Interior Trim Area Parts
  - Front Door Opening Seal (as needed)
  - Rear Door Opening Seal (as needed)
  - Kick Panel
  - B-Pillar Lower Trim
  - Rear Side Trim Panel
- Carpet (as needed)
Sub-Procedure

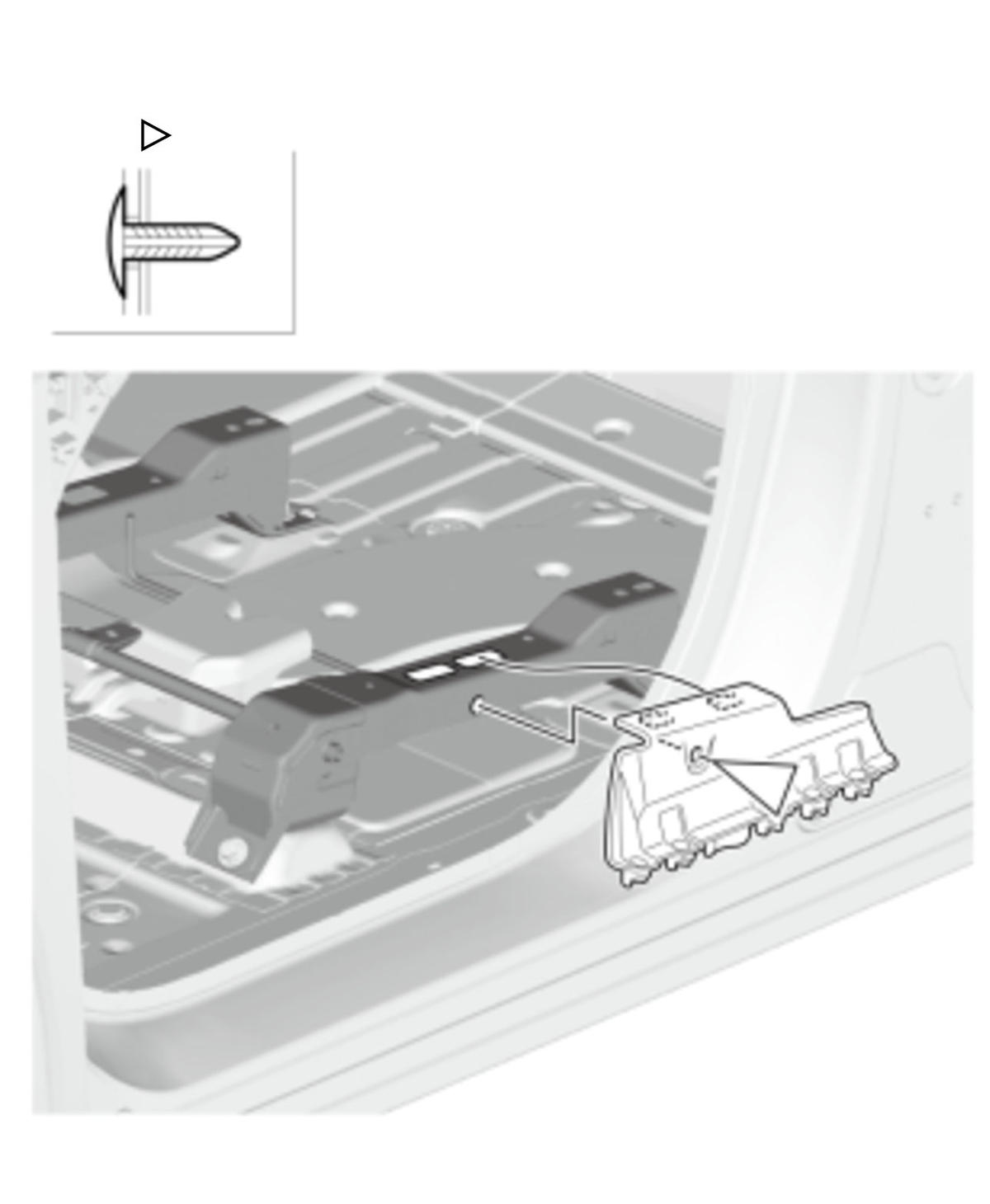

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
