SRS Component Location Index

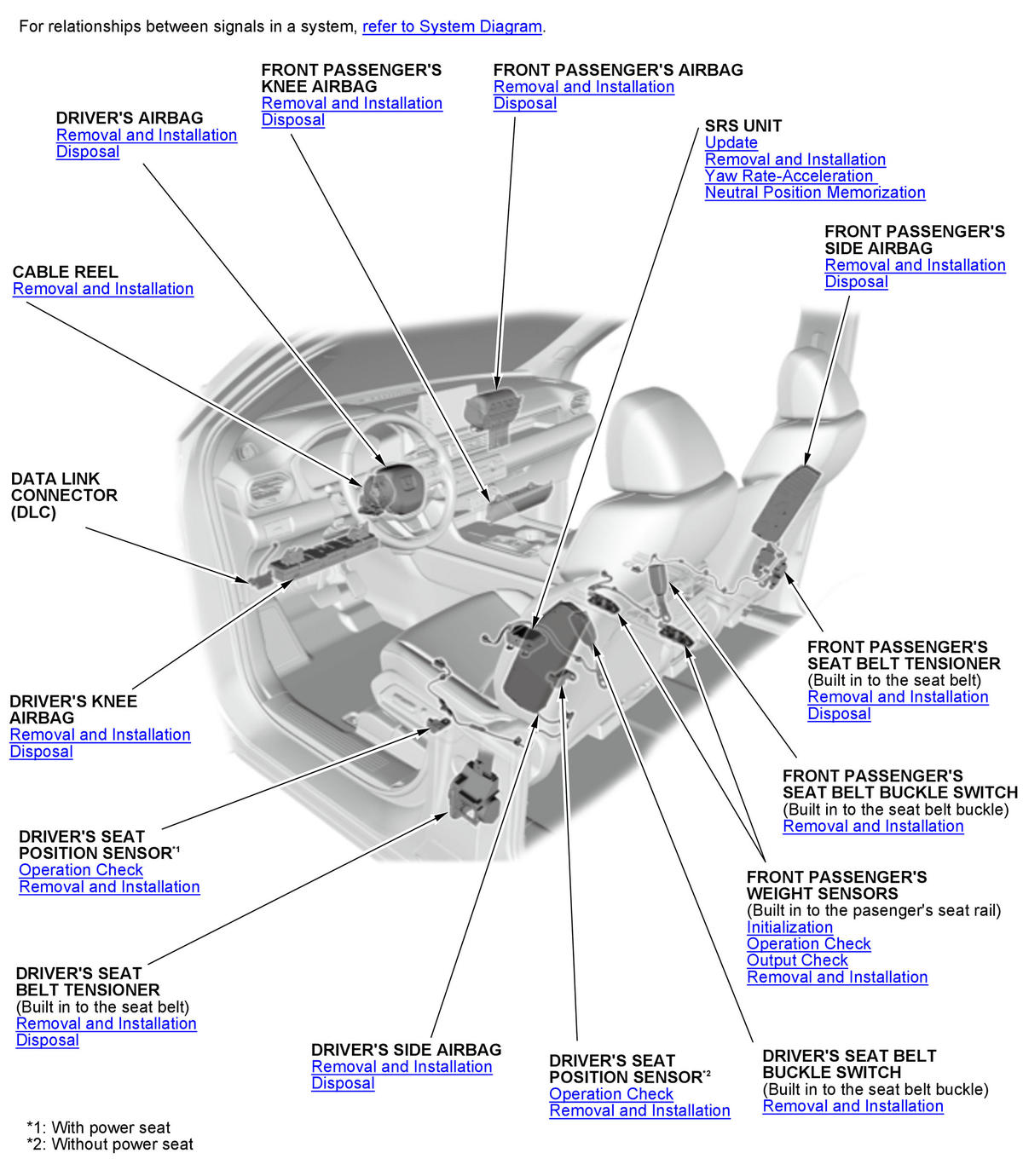

GHH582752

Courtesy of HONDA, U.S.A., INC.

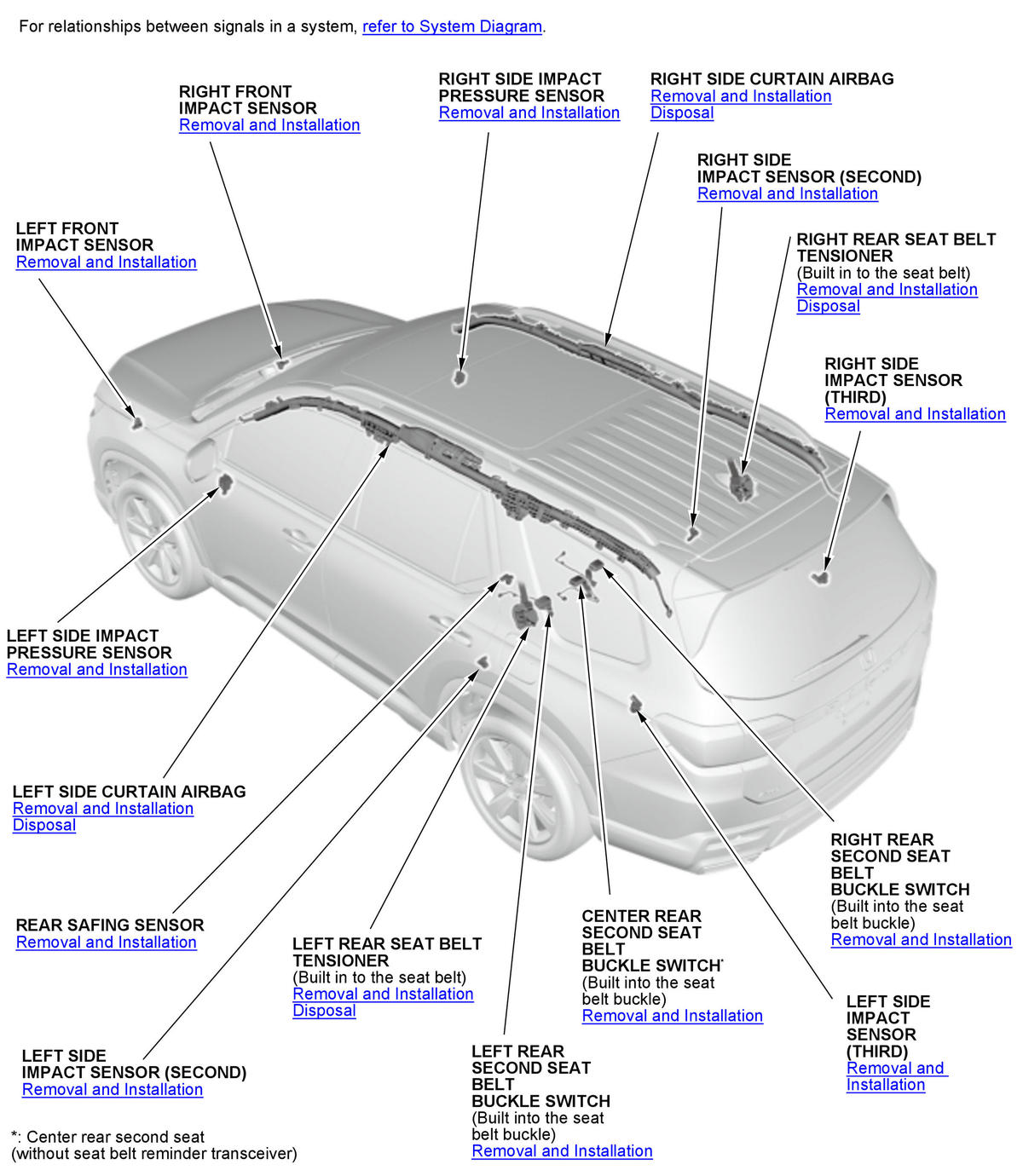

GHH582753

Courtesy of HONDA, U.S.A., INC.

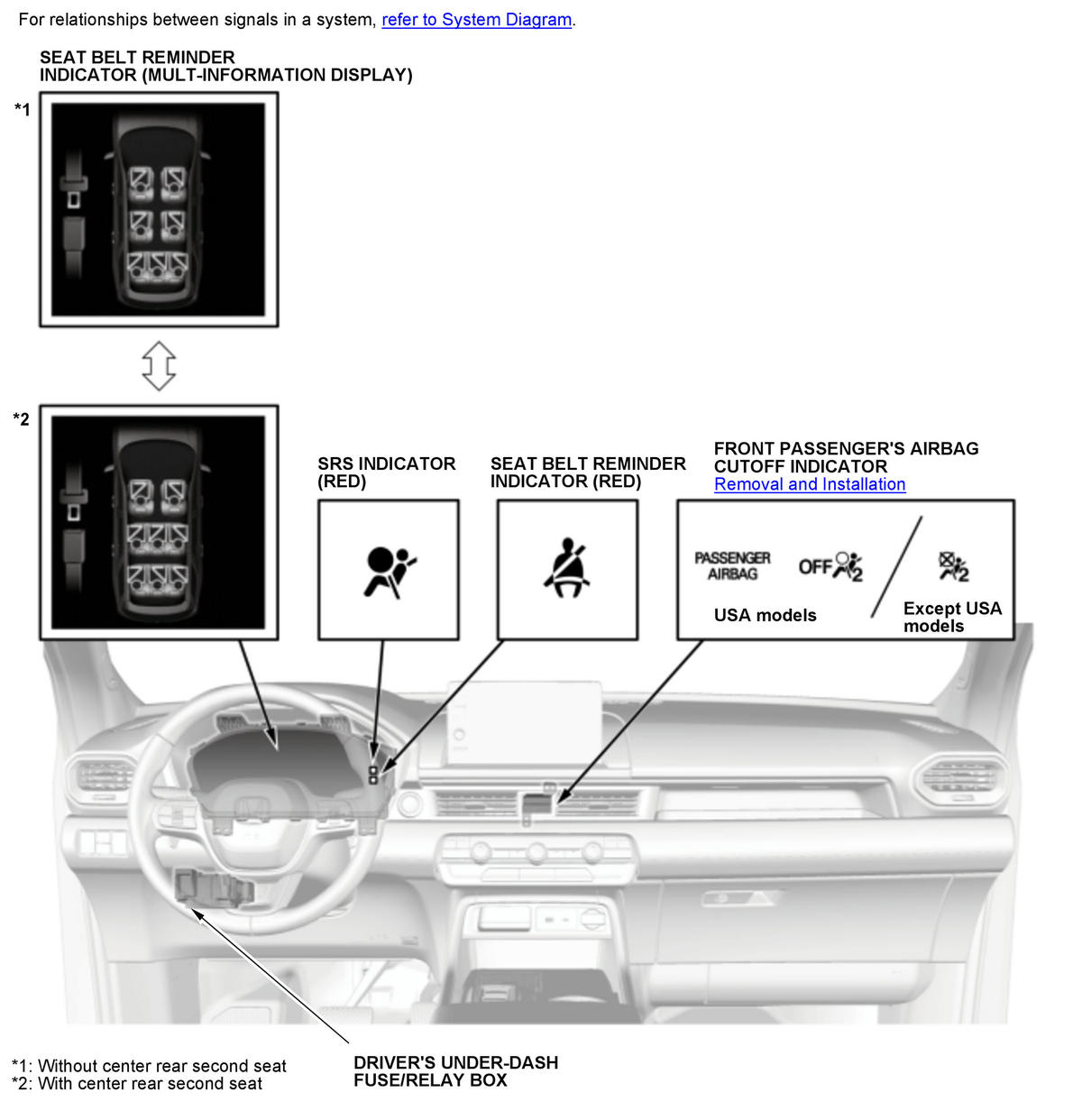

GHH582754

Courtesy of HONDA, U.S.A., INC.
