Dashboard/Steering Hanger Beam Area

For Replacement of components listed below, see Repair Procedure

Special Tools Required

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Relay Puller 07AAC-000A2A1 or 07AAC-000A1A0

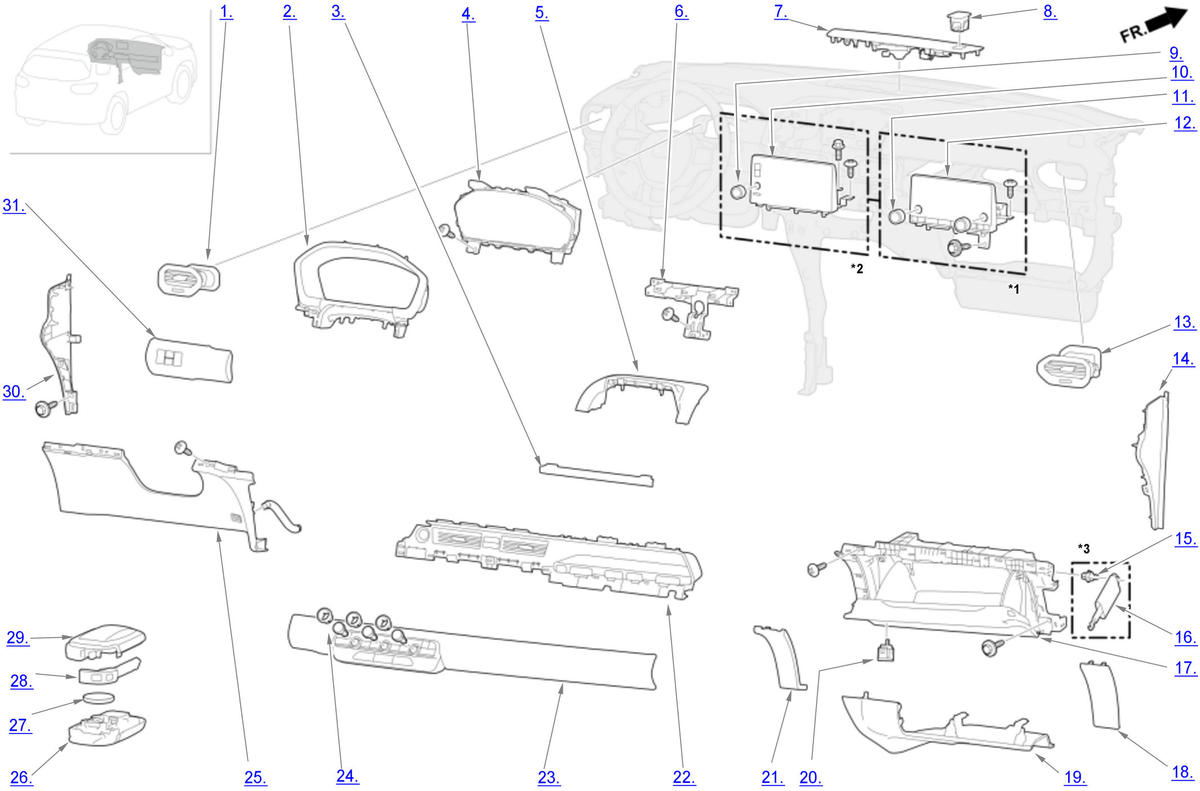

Exploded View Of Dashboard/Steering Hanger Beam Area (Items 1 thru 31)

Courtesy of HONDA, U.S.A., INC.

*1: With color audio type *2: With display audio type *3: With glove box damper

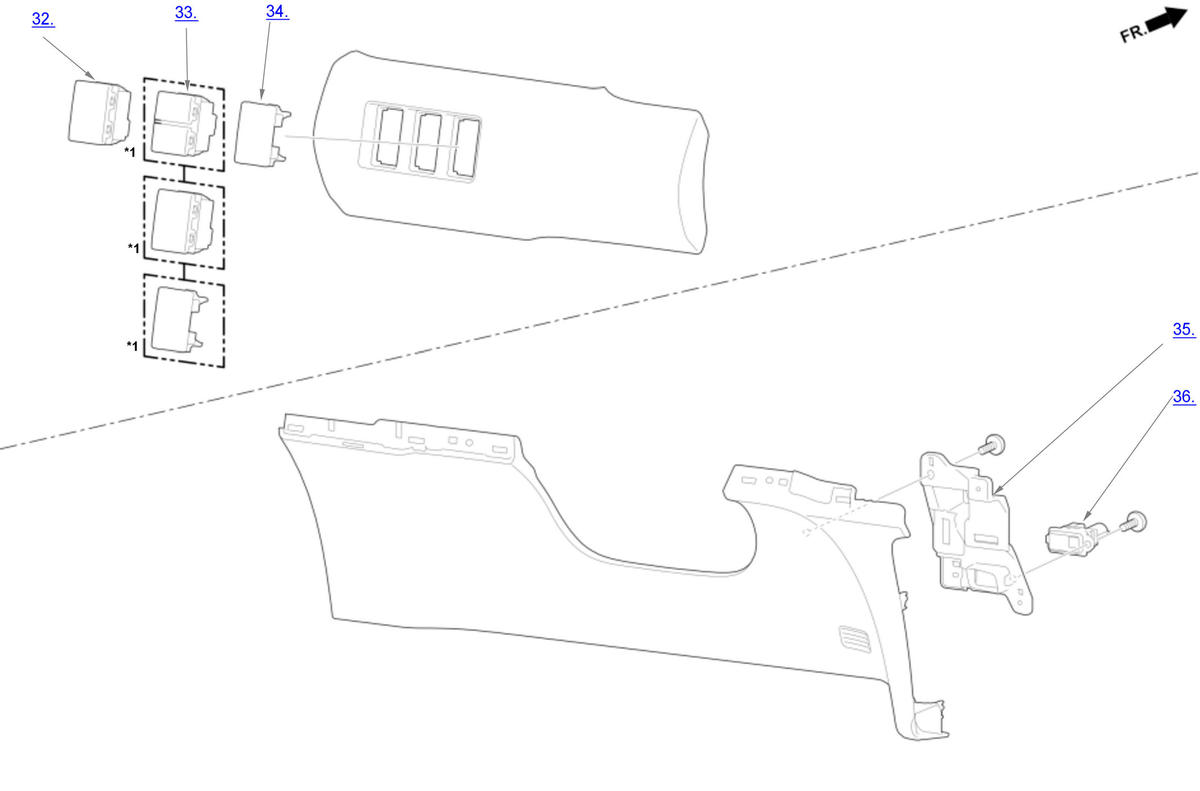

Exploded View Of Dashboard/Steering Hanger Beam Area (Items 32 thru 36)

Courtesy of HONDA, U.S.A., INC.

*1:For some models

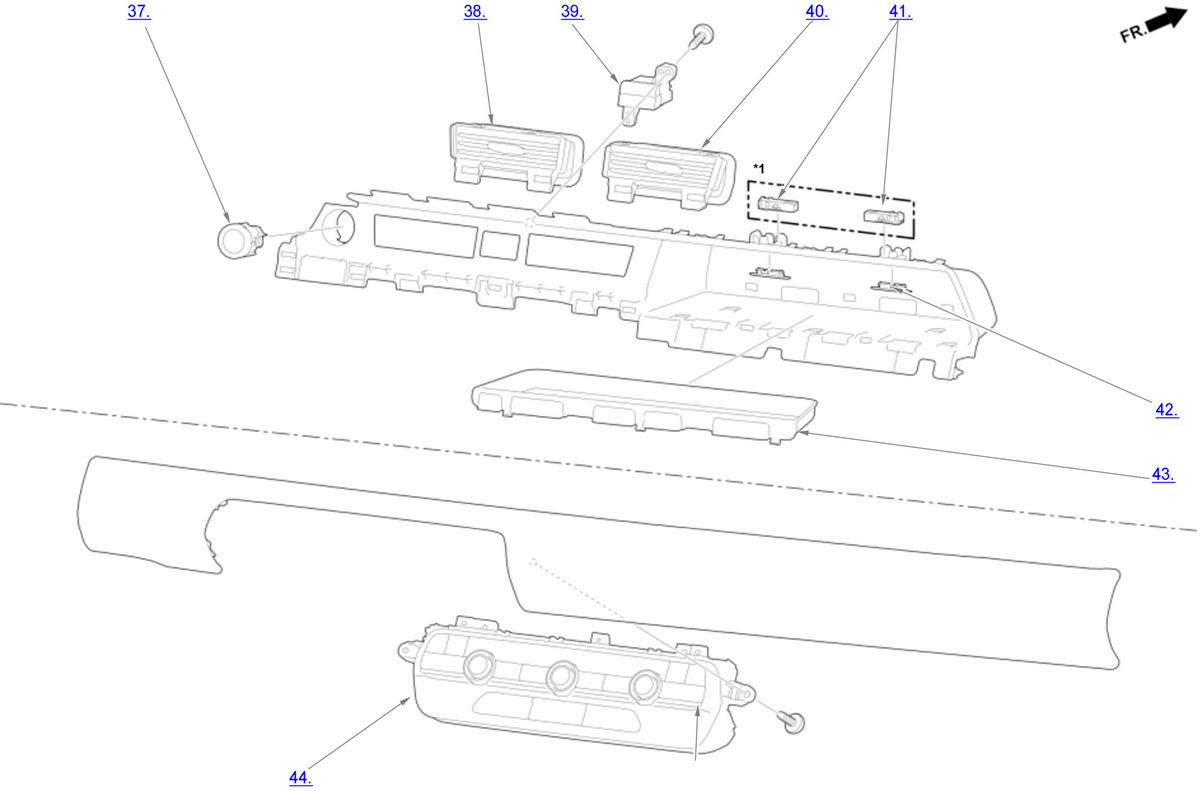

Exploded View Of Dashboard/Steering Hanger Beam Area (Items 37 thru 44)

Courtesy of HONDA, U.S.A., INC.

*1:With front passenger's tray light

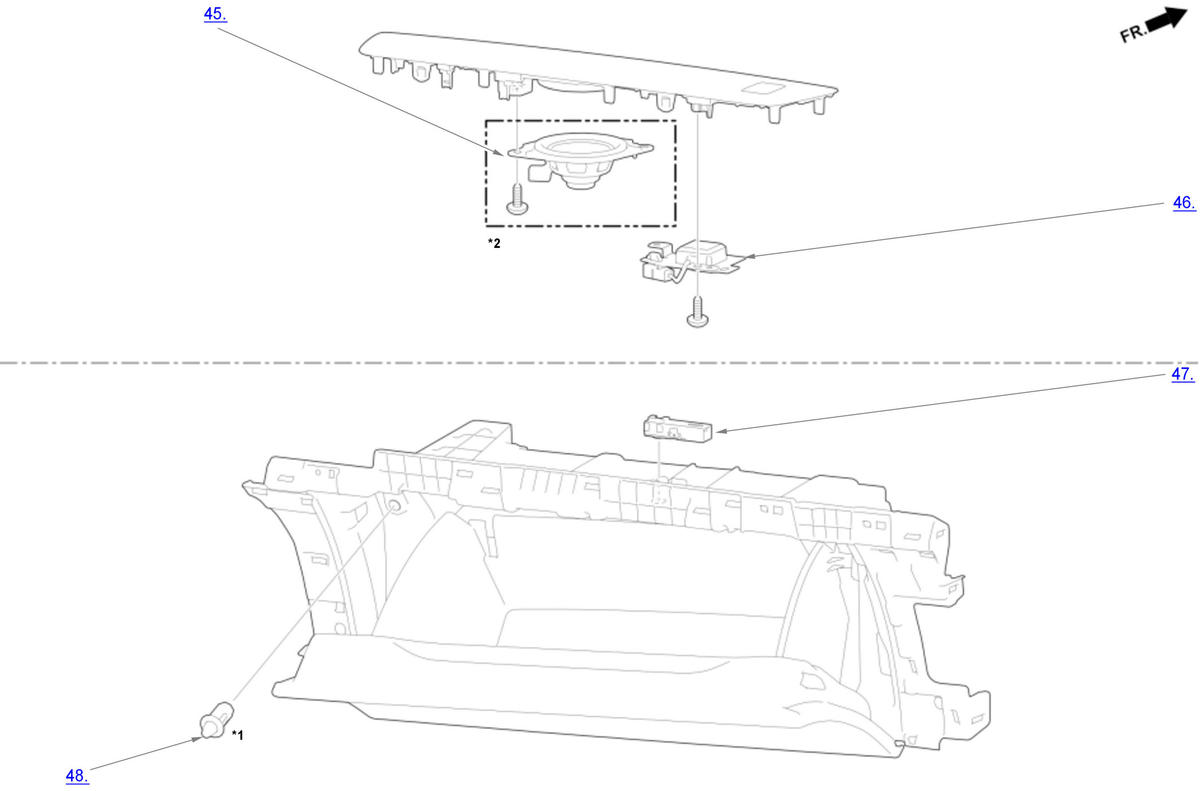

Exploded View Of Dashboard/Steering Hanger Beam Area (Items 45 thru 48)

Courtesy of HONDA, U.S.A., INC.

*1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: With front center speaker

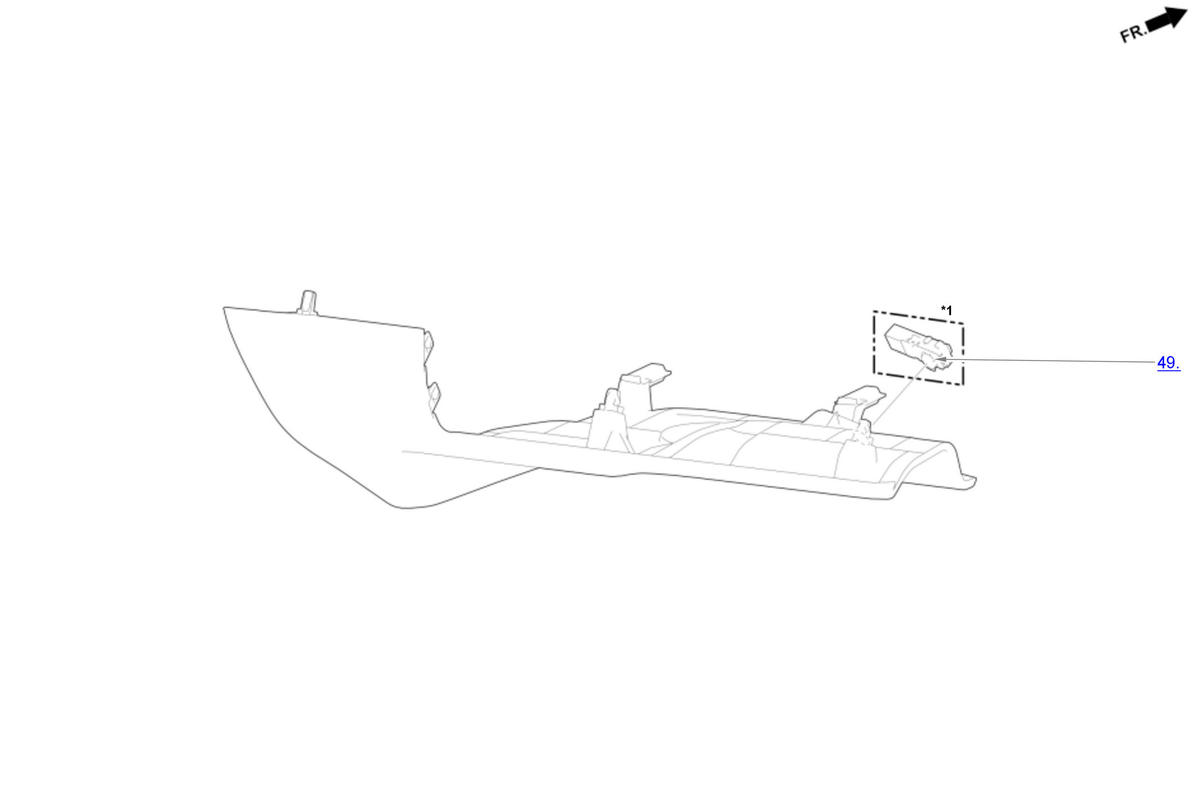

Exploded View Of Dashboard/Steering Hanger Beam Area (Items 49)

Courtesy of HONDA, U.S.A., INC.

*1: With footwell light

Exploded View Of Dashboard/Steering Hanger Beam Area

Courtesy of HONDA, U.S.A., INC.

*1: With color audio type *2: With display audio type

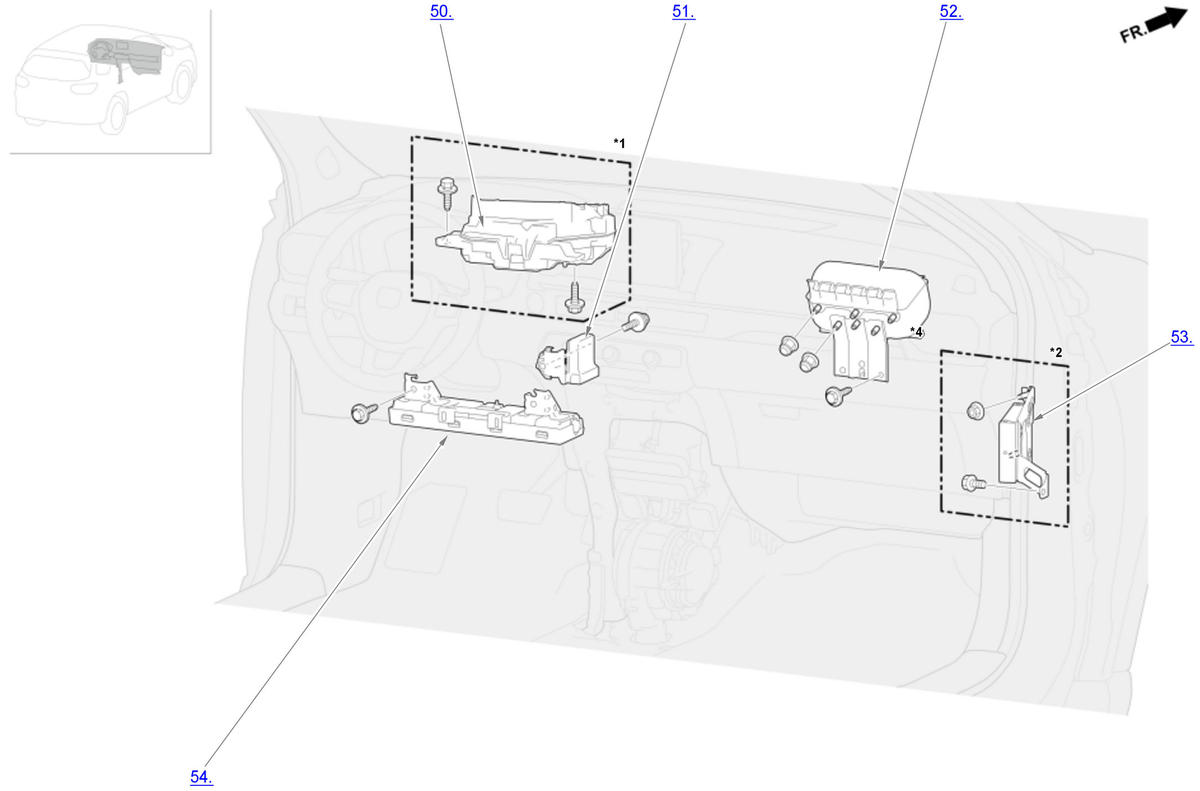

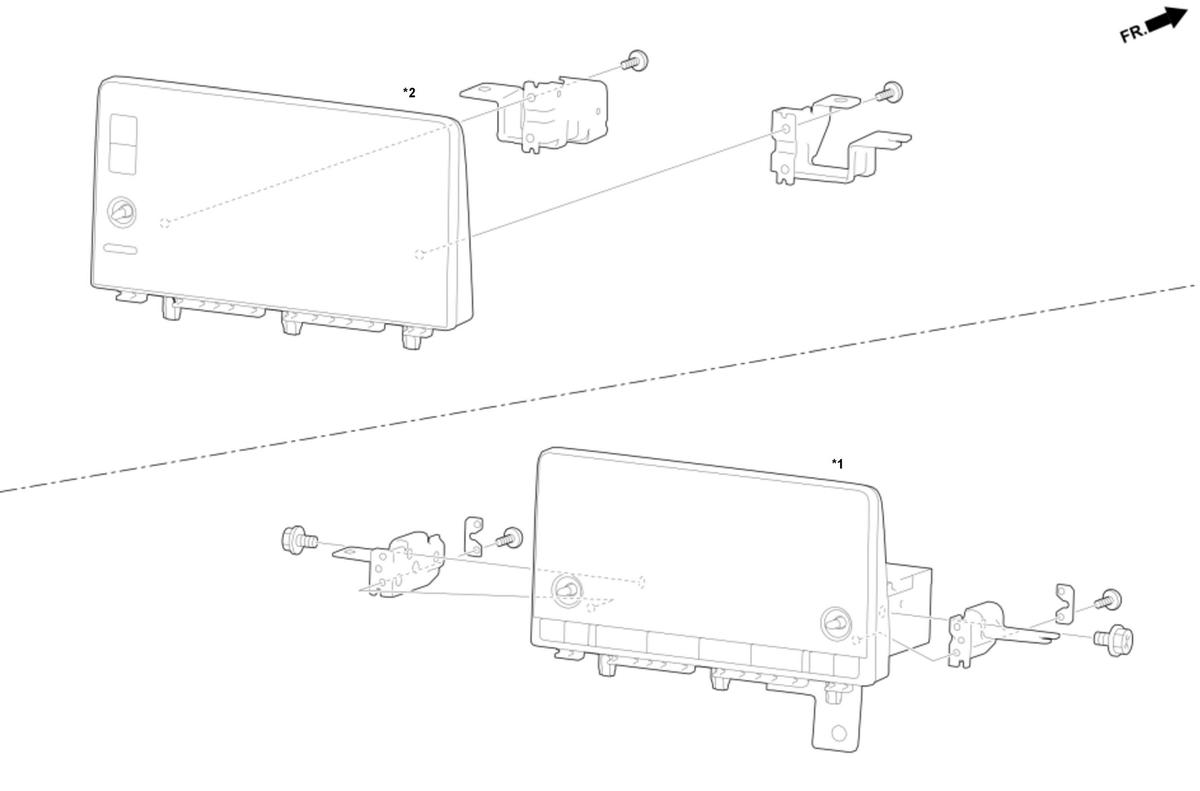

Exploded View Of Dashboard/Steering Hanger Beam Area (Items 50 thru 54)

Courtesy of HONDA, U.S.A., INC.

*1: With head up display *2: With multi view camera system

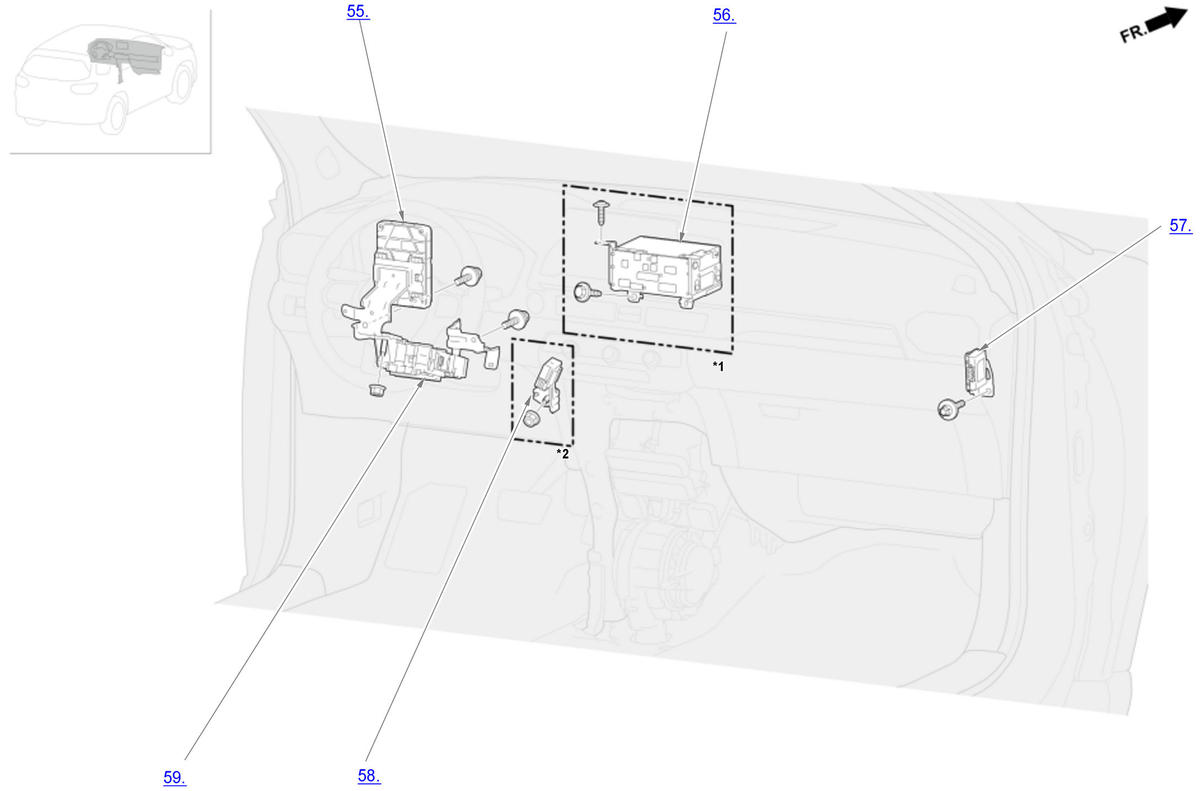

Exploded View Of Dashboard/Steering Hanger Beam Area (Items 55 thru 59)

Courtesy of HONDA, U.S.A., INC.

*1: With display audio type *2: With parking and back-up sensor control unit

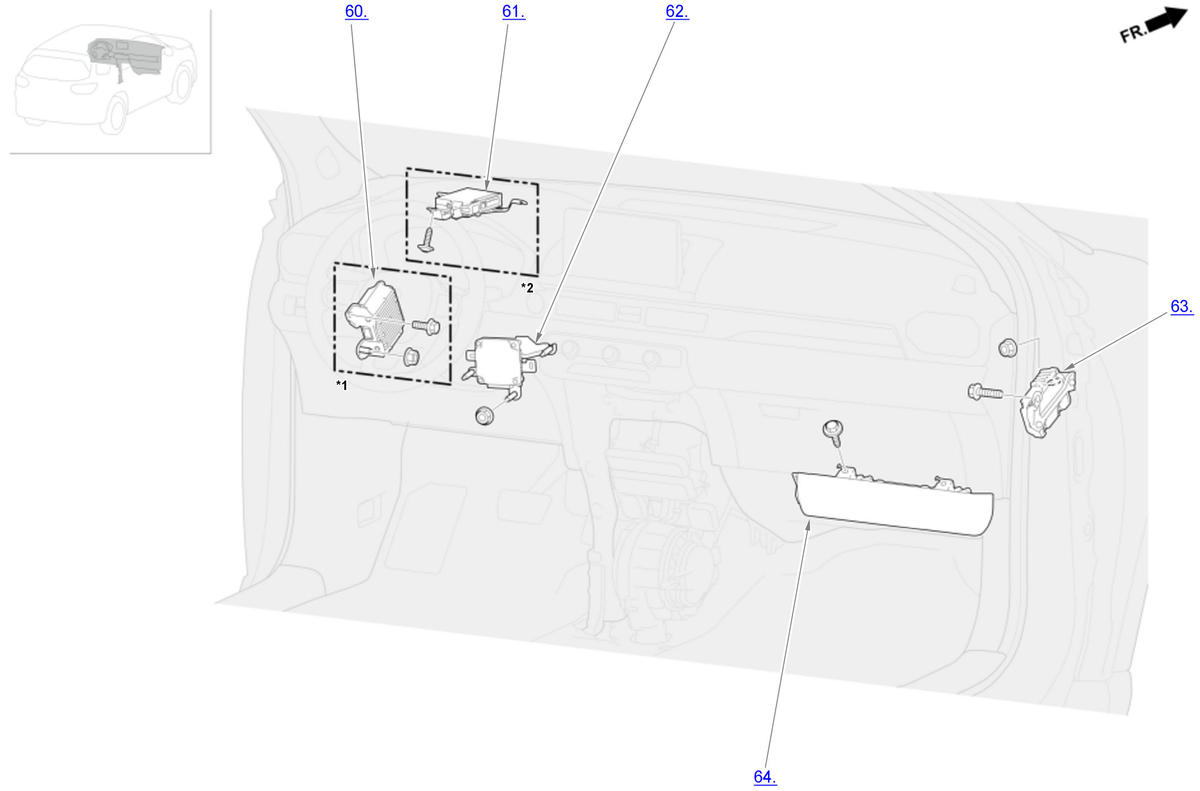

Exploded View Of Dashboard/Steering Hanger Beam Area (Items 60 thru 64)

Courtesy of HONDA, U.S.A., INC.

*1: With AC inverter unit *2: With telematics control unit

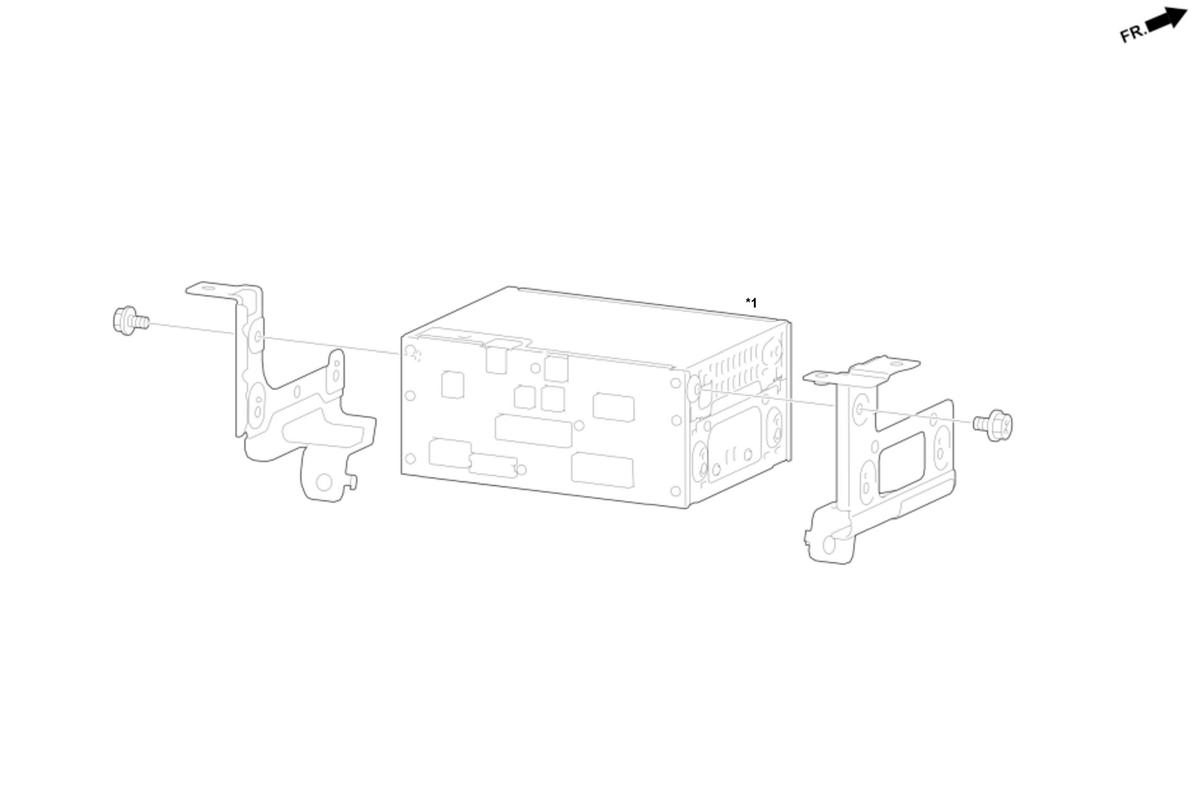

Exploded View Of Dashboard/Steering Hanger Beam Area (Items)

Courtesy of HONDA, U.S.A., INC.

*1: With display audio type

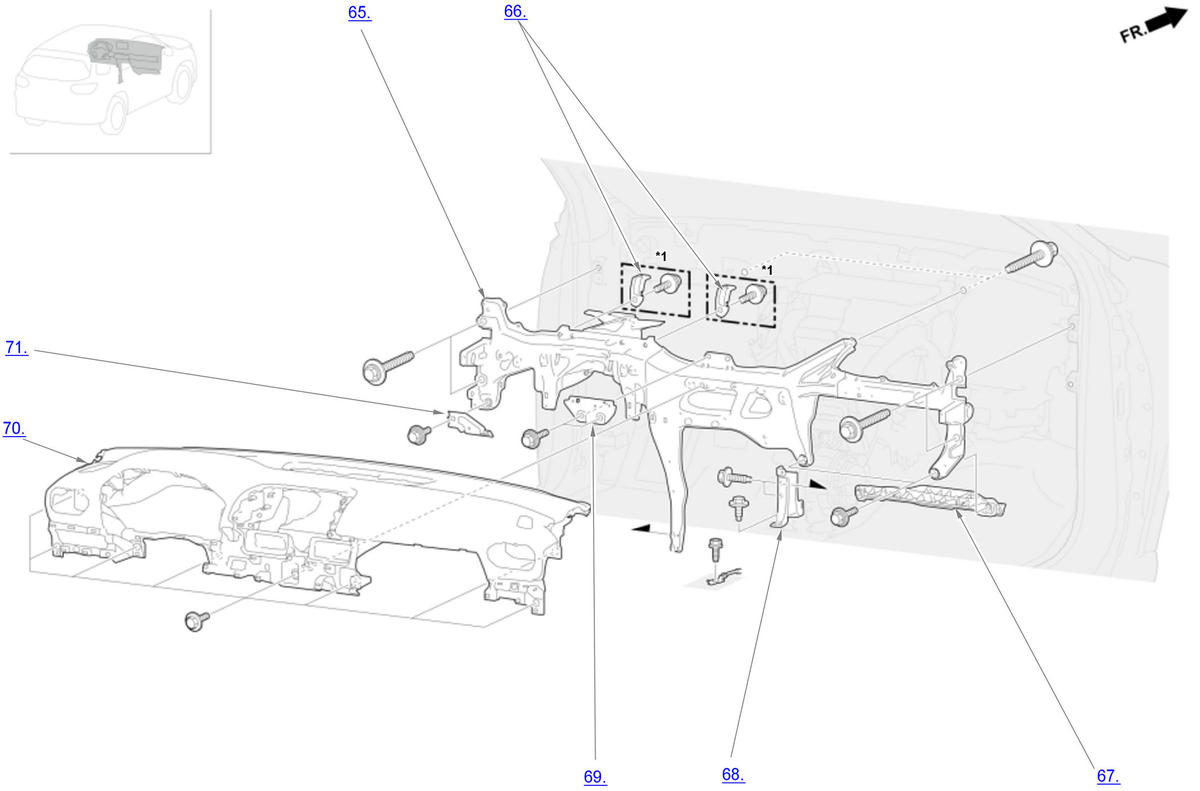

Exploded View Of Dashboard/Steering Hanger Beam Area (Items 65 thru 71)

Courtesy of HONDA, U.S.A., INC.

*1: With head up display

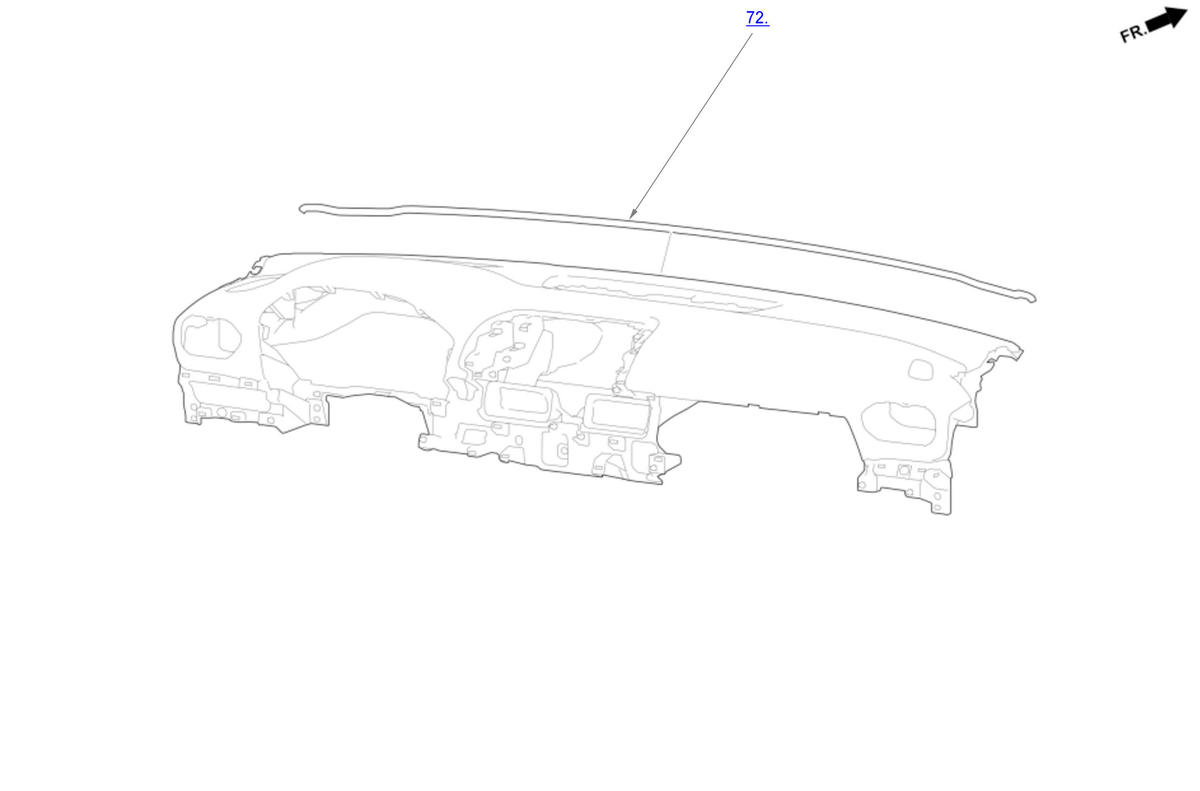

Exploded View Of Dashboard/Steering Hanger Beam Area (Item 72)

Courtesy of HONDA, U.S.A., INC.

Component Name	Callout
Driver's Side Outlet	1
Meter Panel	2
Finger Rest Panel	3
Gauge Control Module	4
Center Upper Panel	5
Dashboard Middle Bracket	6
Center Speaker Lid	7
Sunlight Sensor	8
Volume Knob	9
Center Display Unit (Display Audio Type)	10
Rotary Knob	11
Audio Unit (Color Audio Type)	12
Passenger's Side Outlet	13
Passenger's Dashboard Side Lid	14
Cylinder Clip	15
Glove Box Damper	16
Glove Box	17
Glove Box Outer Panel	18
Passenger's Under Cover	19
Glove Box Key Cylinder	20
Glove Box Inner Panel	21
Center Panel	22
Passenger's Middle Panel	23
Dial Knob	24
Driver's Lower Cover	25
Bottom Shell	26
Remote Battery	27
Emergency Key	28
Top Shell	29
Driver's Dashboard Side Lid	30
Driver's Switch Panel	31
VSA Off Switch/Driver's Power Tailgate Switch	32
Heated Windshield Wiper Area Switch/VSA Off Switch/Switch Hole Lid	33
Switch Hole Lid	34
Humidity/In-Car Temperature Sensor Bracket	35
Humidity/In-Car Temperature Sensor	36
Engine Start/Stop Switch	37
Driver's Center Outlet	38
Hazard Warning Switch/Front Passenger's Airbag Cutoff Indicator	39
Passenger's Center Outlet	40
Front passenger's tray light	41
Cap	42
Tray Mat	43
Climate Control Unit	44
Front Center Speaker	45
GNSS Antenna	46
Glove Box Light	47
Glove Box Stopper	48
Front Passenger's Footwell Light	49
Head Up Display	50
CAN Gateway	51
Front Passenger's Airbag	52
Multi View Camera Unit	53
Driver's Knee Airbag	54
Body Control Module	55
Audio Unit (Display Audio Type)	56
ANC/Active Sound Control Unit	57
Parking and Back-Up Sensor Control Unit	58
Under-Dash Fuse/Relay Box	59
AC Inverter Unit	60
Telematics Control Unit	61
DC-DC Converter	62
Engine Mount Control Unit	63
Front Passenger's Knee Airbag	64
Steering Hanger Beam	65
Head Up Display Bracket	66
Glove Box Frame	67
Center Lower Joint Bracket	68
Audio Secondary Bracket	69
Dashboard	70
OBD Bracket	71
Windshield Seal	72
