DTC : B2644

DTC B2644  : Rear right center sensor bus failure

DTC (Parking and Back-Up Sensor Control Unit)

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A - Go to: Body Electrical Troubleshooting - B-CAN System Diagnosis Test Mode A - Initial Communication and DTC Checks .

1. Problem verification

   - 1. Clear the DTCs with the HDS.

   Clear DTCs

   - 2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   - 3. Turn the parking and back-up sensor switch to ON.

   - 4. Wait for at least 5 seconds.

   - 5. Check for DTCs with the HDS.

   DTC Description	DTC
   B2644 Rear right center sensor bus failure

   Is DTC B2644 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. DTC check

   - 1. Check for DTCs with the HDS.

   DTC Description	DTC
   B2642 Rear left sensor bus failure
   B2643 Rear left center sensor bus failure
   B2644 Rear right center sensor bus failure
   B2645 Rear right sensor bus failure

   Is DTC B2642, B2643, B2644, and/or B2645 indicated?

   YES

   Go to step 3.

   YES

   Go to step 6.

   YES

   Go to step 7.

   YES

   Go to step 8.

   NO

   Check for loose or poor connections. If OK, replace the Parking and Back-Up Sensor Control Unit .

3. Right rear center sensor check

   - 1. Swap the right rear center sensor and the left rear center sensor.Rear Center Sensor

   - 2. Clear the DTCs with the HDS.

   Clear DTCs

   - 3. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   - 4. Turn the parking and back-up sensor switch to ON.

   - 5. Wait for at least 5 seconds.

   - 6. Check for DTCs with the HDS.

   DTC Description	DTC
   B2644 Rear right center sensor bus failure

   Is DTC B2644 indicated?

   YES

   Go to step 4.

   NO

   Replace the original right Rear Center Sensor .

4. Shorted wire check (SOR CR/RR R SIG line to power)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

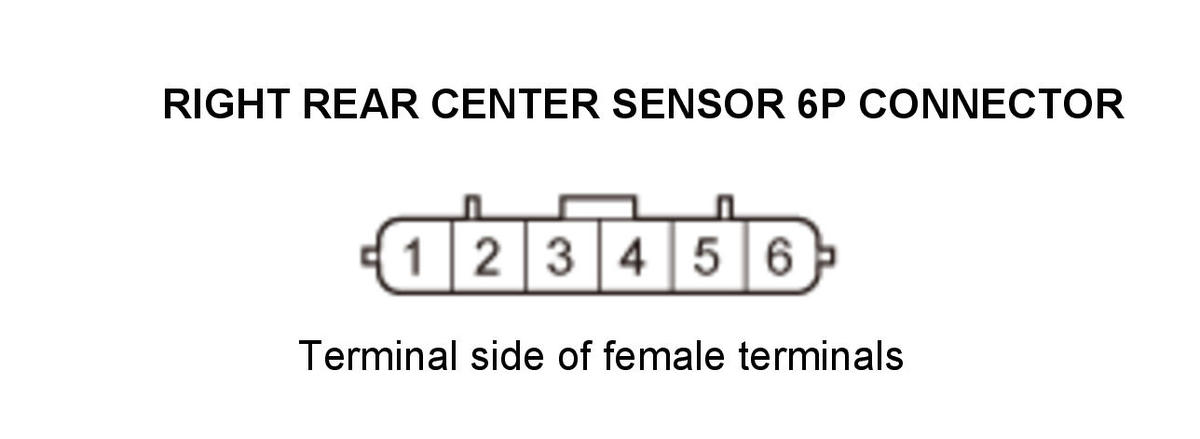

   Right rear center sensor 6P connector

   - 3. Turn the vehicle to the ON mode.

   - 4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode Right rear center sensor 6P connector: disconnected
   Test point 1	Right rear center sensor 6P connector No. 2
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Repair a short to power in the SOR CR/RR R SIG wire between the right rear center sensor and the parking and back-up sensor control unit.

   NO

   The SOR CR/RR R SIG wire is not shorted to power, go to step 5.

5. Shorted wire check (SOR CR/RR R SIG line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Parking and back-up sensor control unit 24P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Right rear center sensor 6P connector: disconnected Parking and back-up sensor control unit 24P connector: disconnected
   Test point 1	Right rear center sensor 6P connector No. 2
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in SOR CR/RR R SIG wire between the right rear center sensor and the parking and back-up sensor control unit.

   NO

   Repair an open or high resistance in SOR CR/RR R SIG wire between the right rear center sensor and the parking and back-up sensor control unit.

6. Open wire check (RR L CTR+, RR R CTR GND lines)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   Right rear center sensor 6P connector

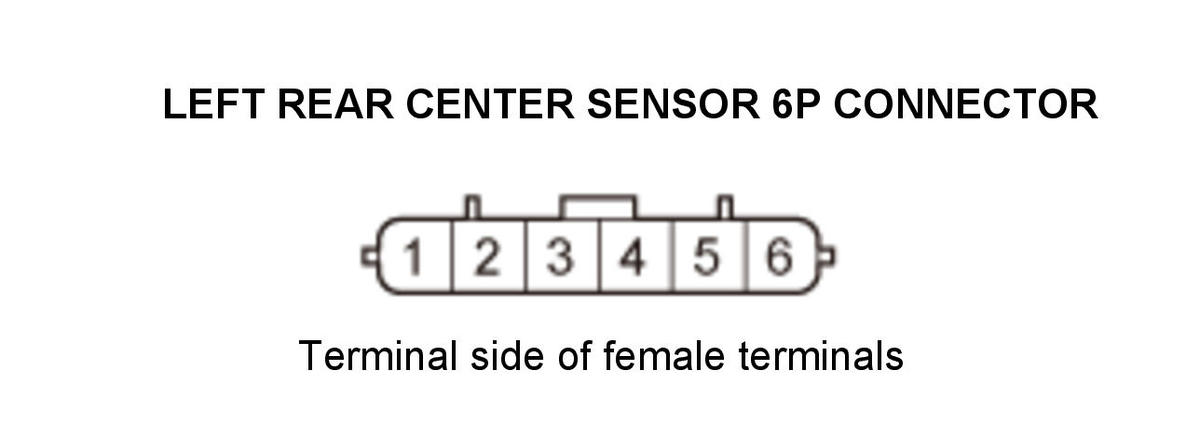

   Left rear center sensor 6P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Right rear center sensor 6P connector: disconnected Left rear center sensor 6P connector: disconnected
   Test point 1	Right rear center sensor 6P connector No. 6
   Test point 2	Left rear center sensor 6P connector No. 5

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open or high resistance in RR R CTR GND wire between the right rear center sensor and the left rear center sensor.

   NO

   Repair an open or high resistance in RR L CTR+ wire between the right rear center sensor and the left rear center sensor.

7. Open wire check (RR R CTR SIG, RR R CTR+ lines)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   Left rear center sensor 6P connector

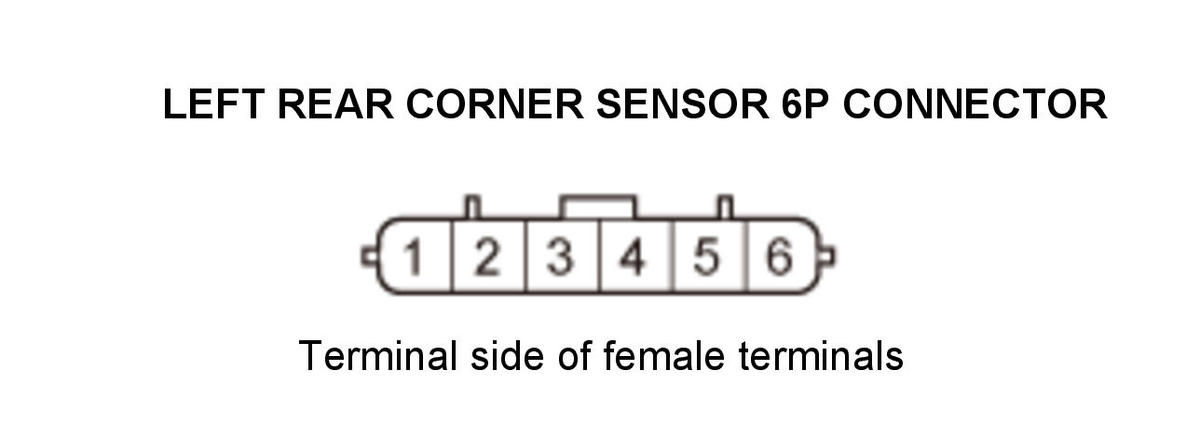

   Left rear corner sensor 6P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Left rear center sensor 6P connector: disconnected Left rear corner sensor 6P connector: disconnected
   Test point 1	Left rear center sensor 6P connector No. 6
   Test point 2	Left rear corner sensor 6P connector No. 5

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open or high resistance in RR R CTR+ wire between the left rear center sensor and the left rear corner sensor.

   NO

   Repair an open or high resistance in RR R CTR SIG wire between the left rear center sensor and the left rear corner sensor.

8. Open wire check (BOR L/RR L+, E2 L/RR L SIG lines)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   Parking and back-up sensor control unit 24P connector

   Left rear corner sensor 6P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 24P connector: disconnected Left rear corner sensor 6P connector: disconnected
   Test point 1	Parking and back-up sensor control unit 24P connector No. 14 - Refer to: Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs (2016 2017 2018) or Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs (2019 2020 2021) .
   Test point 2	Left rear corner sensor 6P connector No. 6

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open or high resistance in E2 L/RR L SIG wire between the parking and back-up sensor control unit and the left rear corner sensor.

   NO

   Repair an open or high resistance in BOR L/RR L+ wire between the parking and back-up sensor control unit and the left rear corner sensor.
