Parking And Back-Up Sensor Control Unit (2019 2020 2021)

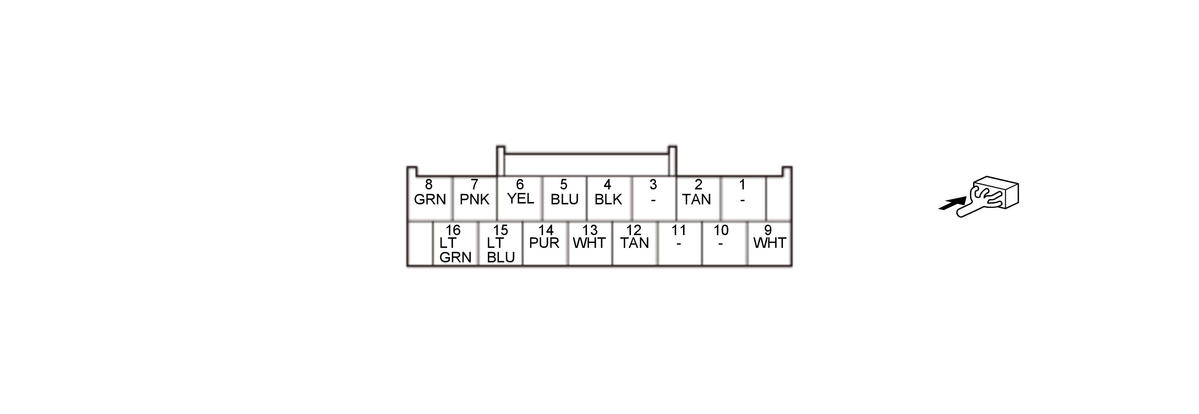

Parking and Back-Up Sensor Control Unit 16P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | - - - | - - - |
| 2 | B-CAN_L | Communication line | - - - |
| 3 | Not used | - - - | - - - |
| 4 | SGND | Ground for parking and back-up sensor control unit | Less than 0.2 V at all times |
| 5 | SW IND | Outputs SW IND signal | With parking and back-up sensor switch indicator OFF: about battery voltage With parking and back-up sensor switch indicator ON: less than 0.2 V |
| 6 | FSS L | Detects FSS L signal | - - - |
| 7 | FSP L | Power source for front sensors | With vehicle to ON mode: about battery voltage |
| 8 | IG1 METER | IG1 power source | With vehicle to ON or START mode: about battery voltage |
| 9 | B-CAN_H | Communication line | - - - |
| 10 | Not used | - - - | - - - |
| 11 | Not used | - - - | - - - |
| 12 | RSG L | Ground for rear sensors | Less than 0.2 V at all times |
| 13 | FSG L | Ground for front sensors | Less than 0.2 V at all times |
| 14 | RSS L | Detects RSS L signal | - - - |
| 15 | PARK SNSR SW | Detects PARK SNSR SW signal | With parking and back-up sensor switch ON: about battery voltage With parking and back-up sensor switch OFF: less than 0.2 V |
| 16 | RSP L | Power source for rear sensors | With vehicle to ON mode: about battery voltage |
