DTC U0296 (604)

DTC U0296  : F-CAN 4 Malfunction (Battery Charge Control Module - Battery Charger)

DTC (Electric Powertrain)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   U0296 F-CAN 4 Malfunction (Battery Charge Control Module - Battery Charger)

   Is DTC U0296 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the battery charger and the battery charge control module. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. CAN gateway system DTCs check

   -1. Check for CAN gateway system DTCs with the HDS.

   DTC Description	DTC

   DTC (CAN Gateway)

   Are any DTCs indicated?

   YES

   Go to the CAN gateway system DTC(s) troubleshooting .

   NO

   Go to step 3.

3. DTC check

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0AFA HV Battery Charging System Voltage Low

   Is DTC P0AFA indicated?

   YES

   Go to the DTC P0AFA troubleshooting .

   NO

   Go to step 4.

4. Open wire check (IGC/IG(CHGR) line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Do the 12 volt battery terminal disconnection procedure .

   -3. Disconnect the following connectors.

   Relay circuit board connector C (10P)

   Battery charger 8P connector

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Relay circuit board connector C (10P): disconnected
   	Battery charger 8P connector: disconnected

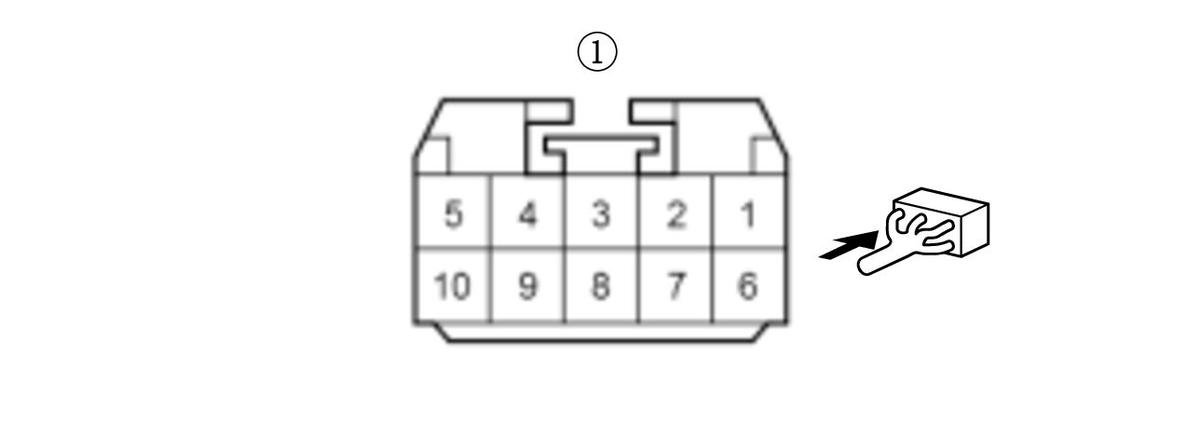

   Test point 1	Relay circuit board connector C (10P) (female terminals) No. 6:

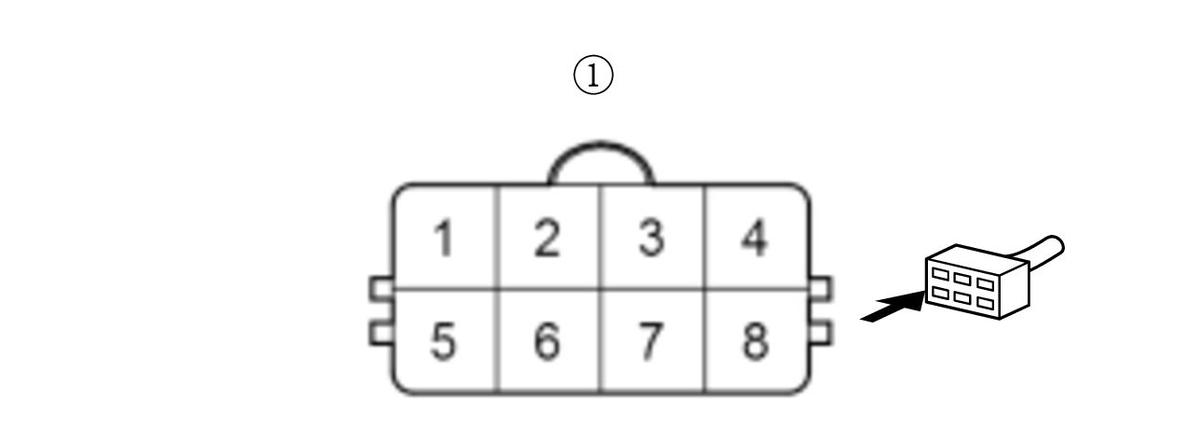

   Test point 2	Battery charger 8P connector (female terminals) No. 8:

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 5.

   NO

   Repair an open in the IGC/IG(CHGR) wire between the relay circuit board and the battery charger.

5. Open wire check (F-CAN D_H line, F-CAN D_L line)

   -1. Disconnect the following connector.

   Battery charge control module connector B (40P)

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Relay circuit board connector C (10P): disconnected
   	Battery charger 8P connector: disconnected
   	Battery charge control module connector B (40P): disconnected
   Test point 1	Battery charge control module connector B (40P) No. 3
   Test point 2	Battery charger 8P connector (female terminals) No. 4:

   Test point 1	Battery charge control module connector B (40P) No. 23
   Test point 2	Battery charger 8P connector (female terminals) No. 3:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the battery charger .

   NO

   Repair an open in the F-CAN D_H wire or the F-CAN D_L wire between the battery charger and the battery charge control module.
