DTC U0155 (106), U1207 (207), U1600 (103) (Battery Condition Monitor Module)

WARNING: This page is about a different variant/trim than selected.

DTC U0155 : F-CAN Malfunction (Battery Condition Monitor Module - Gauge Control Module)

DTC U1207 : F-CAN Malfunction (Battery Condition Monitor Module - Electric A/C Compressor)

DTC U1600 : F-CAN Malfunction (Battery Condition Monitor Module - PCM)

NOTE:

Before you troubleshoot, review the general troubleshooting information .
According to the detected DTC(s), check for the power circuit and the ground circuit of the control unit which cannot communicate with the battery condition monitor module.

DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
U0155 F-CAN Malfunction (Battery Condition Monitor Module - Gauge Control Module)
U1207 F-CAN Malfunction (Battery Condition Monitor Module - Electric A/C Compressor)
U1600 F-CAN Malfunction (Battery Condition Monitor Module - PCM)

DTC (Electric Powertrain)

CAN gateway system DTC check

-1. Turn the vehicle to the ON mode.

-2. Check for CAN gateway system DTCs with the HDS.

DTC Description	DTC

DTC (CAN GATEWAY)

Are any DTCs indicated?

YES

Go to the troubleshooting for CAN gateway system DTC(s) .

Go to step 2.

F-CAN circuit communication check (Receiving control unit)
-1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

F-CAN Bus Connected Unit Check

Does the battery condition monitor module detect the CAN gateway Bus channel A?

Bus A is Not Available

Go to step 3.

Bus A is Available

Go to step 4.

Open wire check (F-CAN A_H line, F-CAN A_L line)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Remove the service plug and the IPU cover .

-3. Disconnect the following connectors.

Battery condition monitor module connector E (32P)

CAN gateway 16P connector

-4. Measure the resistance between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	Battery condition monitor module connector E (32P): disconnected
	CAN gateway 16P connector: disconnected
Test point 1	Battery condition monitor module connector E (32P) No. 9
Test point 2	CAN gateway 16P connector (female terminals) No. 3:

Test point 1	Battery condition monitor module connector E (32P) No. 8
Test point 2	CAN gateway 16P connector (female terminals) No. 11:

Courtesy of HONDA, U.S.A., INC.

Is there 1.0 Ω or less?

YES

The F-CAN A_H wire and the F-CAN A_L wire are OK. Replace the battery condition monitor module .

Repair an open in the F-CAN A_H wire or the F-CAN A_L wire between the battery condition monitor module and the CAN gateway.

F-CAN circuit communication check (Transmitting control unit)

-1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

F-CAN Bus Connected Unit Check

According to the detected DTC on the following table, make sure that the transmitting control unit detects the CAN gateway Bus channel(s) normally.

DTC	Transmitting control unit	Detected CAN gateway Bus channel(s) at normal
U0155	Gauge control module	D
U1207	Electric A/C compressor	D
U1600	PCM	A, B

Is it detected normally?

U0155: Gauge control module is Not Available for Bus D

Go to step 7.

U1207: Electric A/C compressor is Not Available for Bus D

Go to step 7.

U1600: PCM is Not Available for Bus A

Go to step 5.

U1600: PCM is Not Available for Bus B

Go to step 6.

Detected normal

Intermittent failure. The system is OK at this time. Check for poor connections or loose terminals at the transmitting control unit, the battery condition monitor module, and the CAN gateway.

Open wire check (F-CAN A_H line, F-CAN A_L line)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. DTC U1600: Jump the SCS line with the HDS, and wait more than 1 minute.

-3. According to the detected DTC on the following table, disconnect the transmitting control unit connector(s).

DTC	Connector
-	CAN gateway 16P connector
U1600	PCM connector A (50P)

-4. Measure the resistance between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	CAN gateway 16P connector: disconnected
	Transmitting control unit connector(s) for indicated DTCs: disconnected

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal

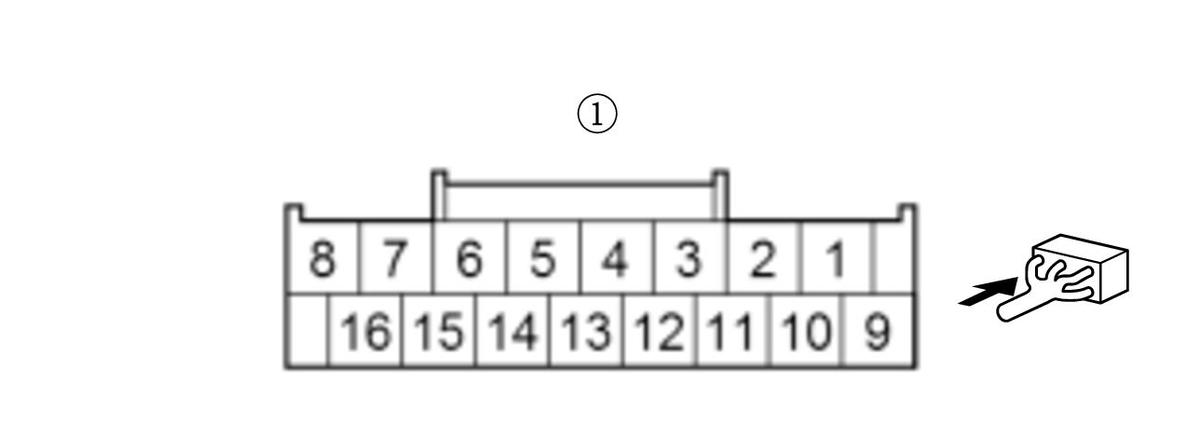

U1600	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	PCM connector A (50P)	No. 37
U1600	F-CAN A_L	CAN gateway 16P connector (female terminals):	No. 11	PCM connector A (50P)	No. 36

Courtesy of HONDA, U.S.A., INC.

Is there 1.0 Ω or less?

YES

The F-CAN A_H wire and the F-CAN A_L wire are OK.According to the detected DTC on the following table, update, substitute, or replace the correspond control unit.

DTC	Operation for transmitting control unit
U1600	Replace the PCM .

Repair an open in the F-CAN A_H wire or the F-CAN A_L wire between the transmitting control unit and the CAN gateway.

Open wire check (F-CAN B_H line, F-CAN B_L line)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. DTC U1600: Jump the SCS line with the HDS, and wait more than 1 minute.

-3. According to the detected DTC on the following table, disconnect the transmitting control unit connector(s).

DTC	Connector
-	CAN gateway 16P connector
U1600	PCM connector A (50P)

-4. Measure the resistance between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	CAN gateway 16P connector: disconnected
	Transmitting control unit connector(s) for indicated DTCs: disconnected

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal
U1600	F-CAN B_H	CAN gateway 16P connector (female terminals):	No. 6	PCM connector A (50P)	No. 39
U1600	F-CAN B_L	CAN gateway 16P connector (female terminals):	No. 14	PCM connector A (50P)	No. 38

Courtesy of HONDA, U.S.A., INC.

Is there 1.0 Ω or less?

YES

The F-CAN B_H wire and the F-CAN B_L wire are OK. According to the detected DTC on the following table, update, substitute, or replace the correspond control unit.

DTC	Operation for transmitting control unit
U1600	Replace the PCM .

Repair an open in the F-CAN B_H wire or the F-CAN B_L wire between the transmitting control unit and the CAN gateway.

Open wire check (F-CAN D_H line, F-CAN D_L line)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. According to the detected DTC on the following table, disconnect the transmitting control unit connector(s).

DTC	Connector
-	CAN gateway 16P connector
U0155	Gauge control module connector A (32P)
U1207	Electric A/C compressor 4P connector

-3. Measure the resistance between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	CAN gateway 16P connector: disconnected
	Transmitting control unit connector(s) for indicated DTCs: disconnected

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal
U0155	F-CAN D_H	CAN gateway 16P connector (female terminals):	No. 7	Gauge control module connector A (32P)	No. 19
U0155	F-CAN D_L	CAN gateway 16P connector (female terminals):	No. 15	Gauge control module connector A (32P)	No. 20

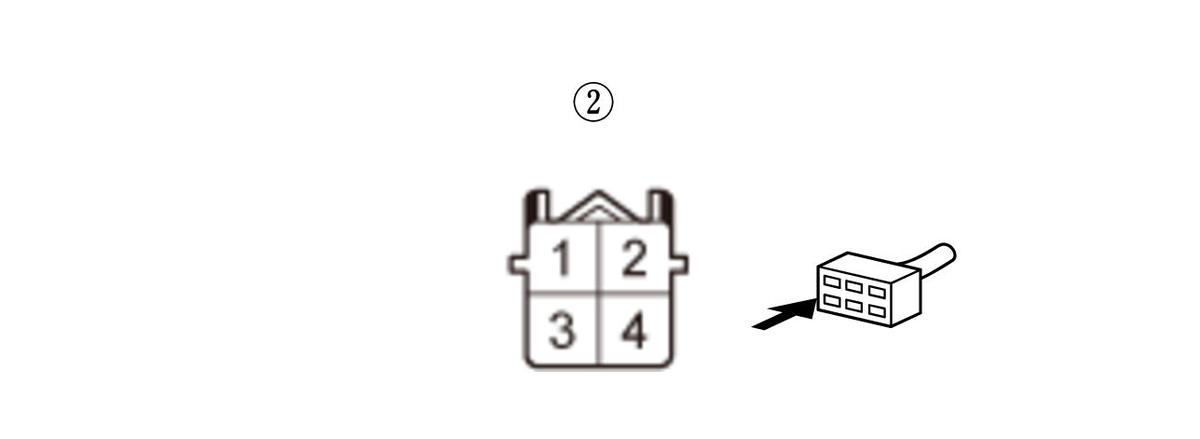

U1207	F-CAN D_H	CAN gateway 16P connector (female terminals):	No. 7	Electric A/C compressor 4P connector (female terminals):	No. 4
U1207	F-CAN D_L	CAN gateway 16P connector (female terminals):	No. 15	Electric A/C compressor 4P connector (female terminals):	No. 3

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Is there 1.0 Ω or less?

YES

The F-CAN D_H wire and the F-CAN D_L wire are OK.According to the detected DTC on the following table, update, substitute, or replace the correspond control unit.

DTC	Operation for transmitting control unit
U0155	Replace the gauge control module .
U1207	Replace the electric A/C compressor .

Repair an open in the F-CAN D_H wire or the F-CAN D_L wire between the transmitting control unit and the CAN gateway.
