Gauge Control Module Connector for Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

Connector Index
Gauge Control Module Connector A (32P)
Gauge Control Module Connector B (12P) (not used)
Gauge Control Module Connector C (3P) (display audio type)

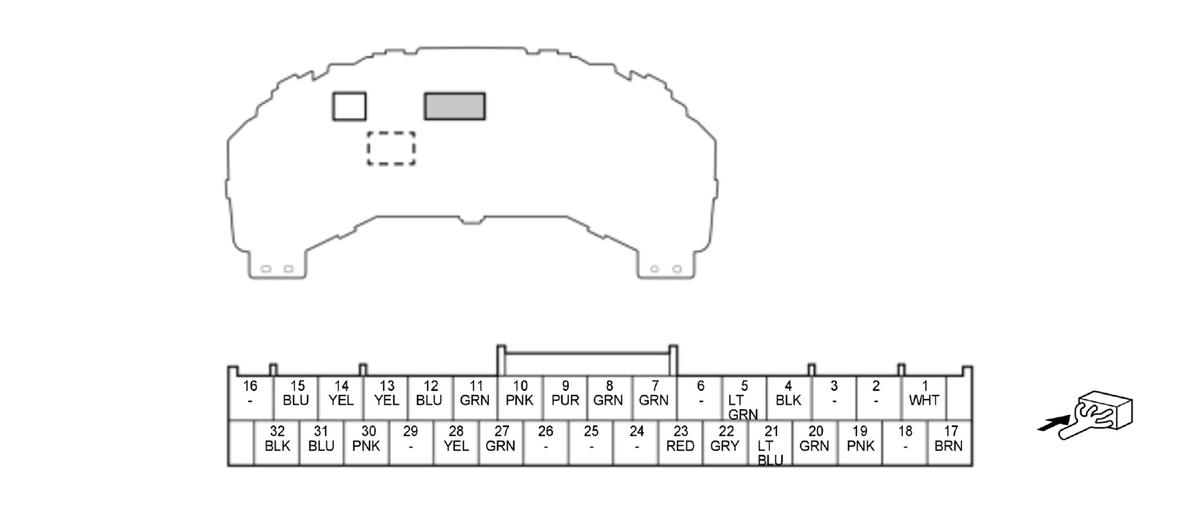

Gauge Control Module Connector A (32P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B_BACK_UP	+B power source	About battery voltage at all times
2	---	Not used	---
3	---	Not used	---
4	GND	Gauge control module ground	Less than 0.2 V at all times
5	CRUISE_GND	Ground for ACC combination switch	Less than 0.2 V at all times
6	---	Not used	---
7	CMBS_OFF_SW	Detects CMBS OFF switch signal	With vehicle in ON mode and CMBS OFF switch OFF: about battery voltage With vehicle in ON mode and CMBS OFF switch ON: less than 0.2 V
8	ECON_SW	Detects ECON switch signal	With vehicle in ON mode and ECON switch OFF: about battery voltage With vehicle in ON mode and ECON switch ON: less than 0.2 V
9	VSA_OFF_SW	Detects VSA OFF switch signal	With vehicle in ON mode and VSA OFF switch OFF: about battery voltage With vehicle in ON mode and VSA OFF switch ON: less than 0.2 V
10	PARK_LAMP	Detects VSA modulator-control unit (PARK_LAMP) signal	---
11	BRAKE_LEVEL_SW	Detects brake fluid level switch signal	With vehicle in ON mode and brake fluid level switch OFF: about battery voltage With vehicle in ON mode and brake fluid level switch ON: less than 0.2 V
12	BRAKE_HOLD	Detects electric parking brake/automatic brake hold switch signal	---

Terminal number	Terminal name	Description	Signal
13	EV SW	Detects EV switch signal	With vehicle in ON mode and EV switch OFF: about battery voltage With vehicle in ON mode and EV switch ON: less than 0.2 V
14	CRUISE SW	Detects ACC combination switch	With vehicle in ON mode: about 0.8-4.4 V (depending on ACC combination switch)
15	ILL-(LED)	Detects illumination signal	---
16	---	Not used	---
17	IG1_METER	IG1 power source	With vehicle in ON or START mode: about battery voltage
18	---	Not used	---
19	F-CAN D_H	Communication line	---
20	F-CAN D_L	Communication line	---
21	FUEL_GAUGE-	Ground for fuel gauge sending unit	Less than 0.2 V at all times
22	FUEL_GAUGE+	Detects fuel gauge sending unit signal	---
23	LIN(START_SW)	Communication line	---
24	---	Not used	---
25	---	Not used	---
26	---	Not used	---
27	SPORT_MODE_SW	Detects SPORT switch signal	With vehicle in ON mode and SPORT switch OFF: about battery voltage With vehicle in ON mode and SPORT switch ON: less than 0.2 V
28	DISTANCE SW	Detects ACC combination switch signal	With vehicle in ON mode: about 0.8-4.4 V (depending on ACC combination switch signal)
29	---	Not used	---
30	B-CAN_H	Communication line	---
31	B-CAN_L	Communication line	---
32	GND	Gauge control module ground	Less than 0.2 V at all times

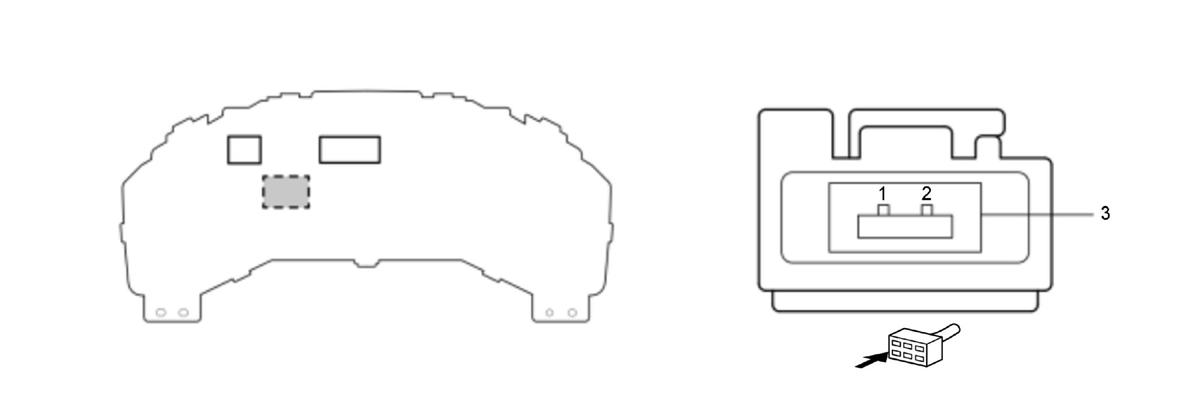

Gauge Control Module Connector C (3P) (female terminals) (display audio type)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	LVDS2+	Communication line	---

Terminal number	Terminal name	Description	Signal
2	LVDS2-	Communication line	---
3	LVDS2 SH	Shield for terminals No. 1 and No. 2	Less than 0.2 V at all times
