DTC P1D8A (295)

DTC P1D8A  : Generator Motor Inverter Gate Line Open

WARNING:

This procedure includes high voltage measurements with the electric powertrain system turned on. To avoid serious injury from electrical shocks while testing the high voltage cable, use insulated gloves, select a DC range of 500 V or more on your digital multimeter, and be careful not to contact each tester probes and not to contact any metal parts while you measure the high voltage cable.

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (Electric Powertrain)

1. Problem verification

   -1. Test-drive the vehicle in the range of the recorded freeze data parameters.

   Freeze Data

   -2. Monitor the OBD STATUS for DTC P1D8A in the DTCs MENU with the HDS.

   DTC Description	OBD STATUS
   P1D8A Generator Motor Inverter Gate Line Open

   Does the HDS indicate FAILED?

   YES

   Go to step 2.

   NO

   If the HDS indicates PASSED, the system is OK at this time but has an intermittent failure. If the HDS indicates NOT COMPLETED, keep test-driving until an indication comes on. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Generator motor motor rotor position sensor circuit check

   -1. Do the generator motor motor rotor position sensor circuit check .

   Is it OK?

   YES

   Go to step 3.

   NO

   Repair an open or short in the generator motor motor rotor position sensor circuit between the PCU and the generator motor motor rotor position sensor.

3. Generator motor check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the service plug .

   -3. Remove the PCU .

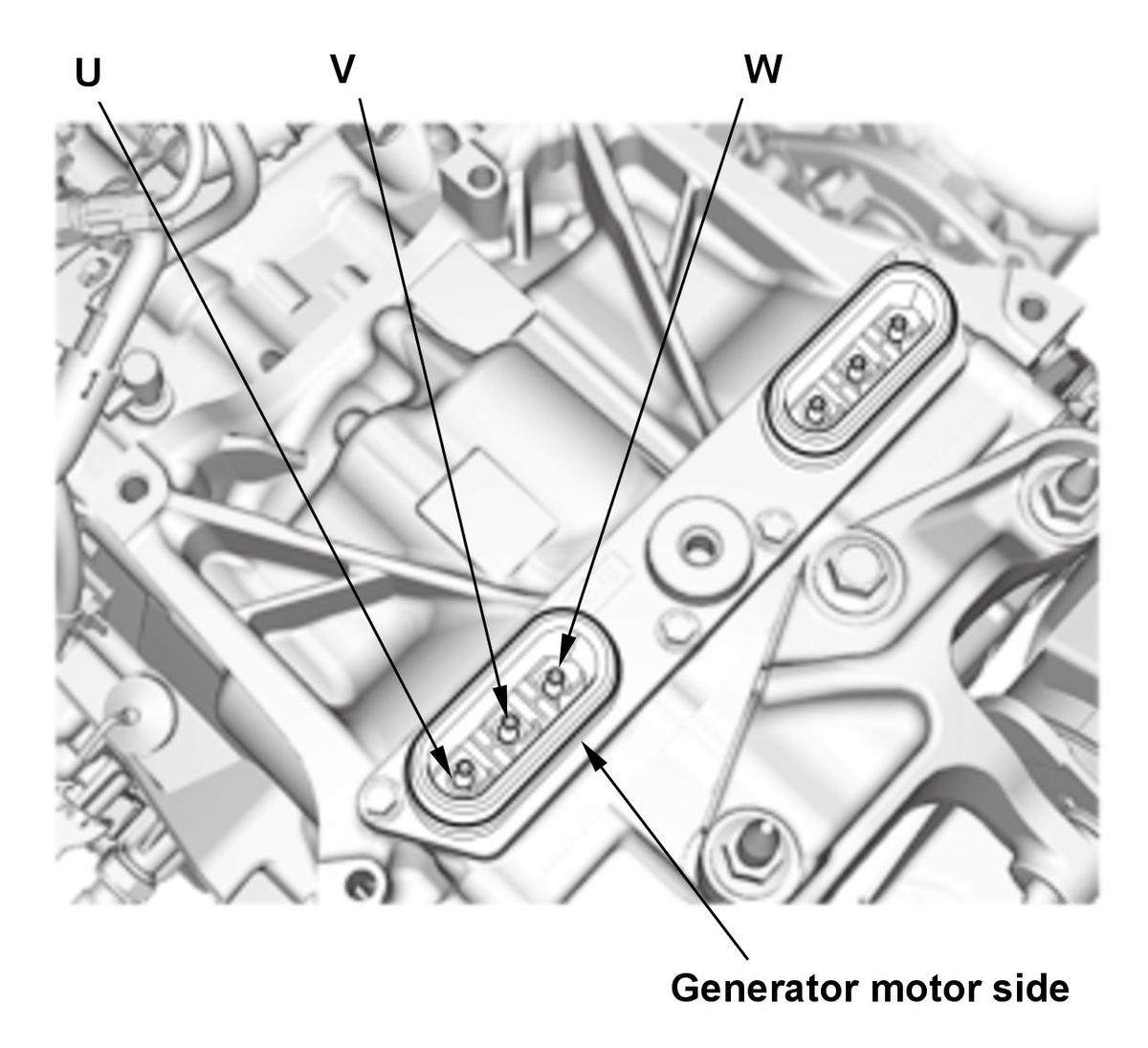

   -4. At the generator motor 3-phase terminals side, measure the resistance between the following test points individually.

   Test condition	Vehicle OFF (LOCK) mode
   	PCU: removed

   NOTICE:

   When measuring terminals, make sure to use an ohmmeter that is capable of measuring milli-ohm range. Make sure to take the measurement when the transmission temperature is about 68°F (20°C) (rated resistance value is at 68°F (20°C)) as the resistance figures may vary.

   Connector	Terminals	Value (mΩ)
   Generator motor high voltage terminals	U - V	About 31.7-33.7
   	U - W	About 31.7-33.7

   Courtesy of HONDA, U.S.A., INC.

   Is resistance value OK?

   YES

   Replace the PCU .

   NO

   Faulty generator motor. Replace the transmission (e-CVT) assembly .
