LaneWatch System Description - System Diagram

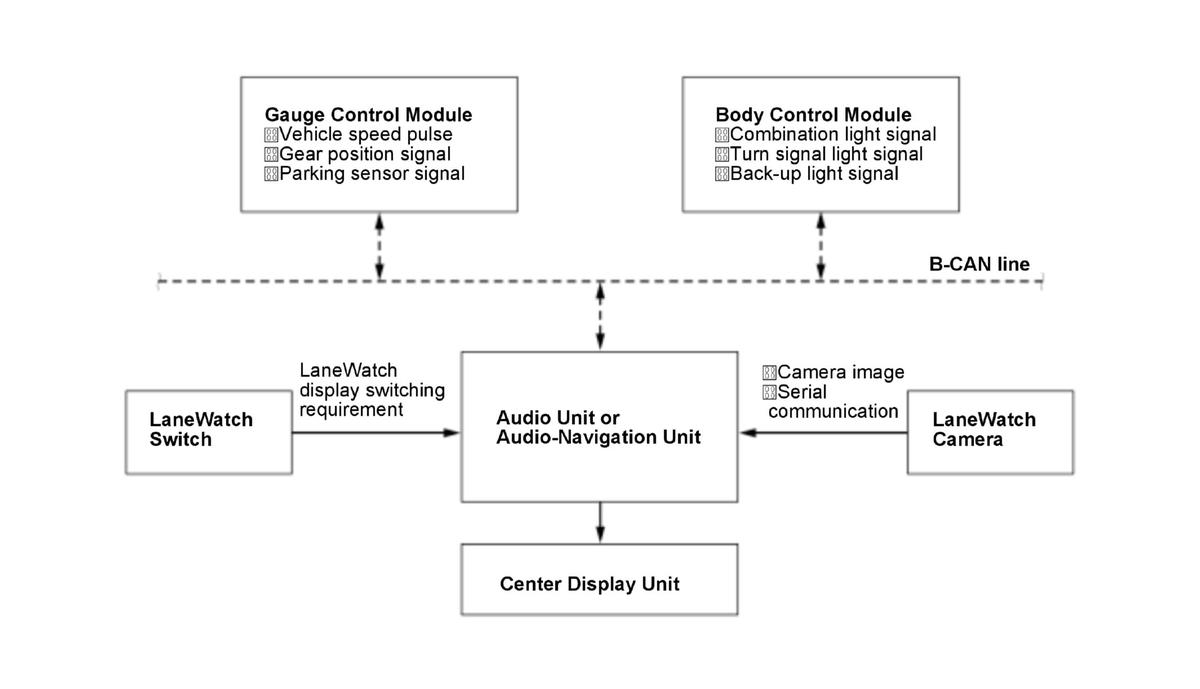

The system diagram of the LaneWatch system is shown below.

For locations of each component on the vehicle, refer to Component Location Index:

• Audio unit or Audio-navigation unit , Center display unit
• LaneWatch camera, LaneWatch switch
• Gauge control module
• Body control module

Courtesy of HONDA, U.S.A., INC.
