Blind Spot Information (BSI) System Description - System Diagram

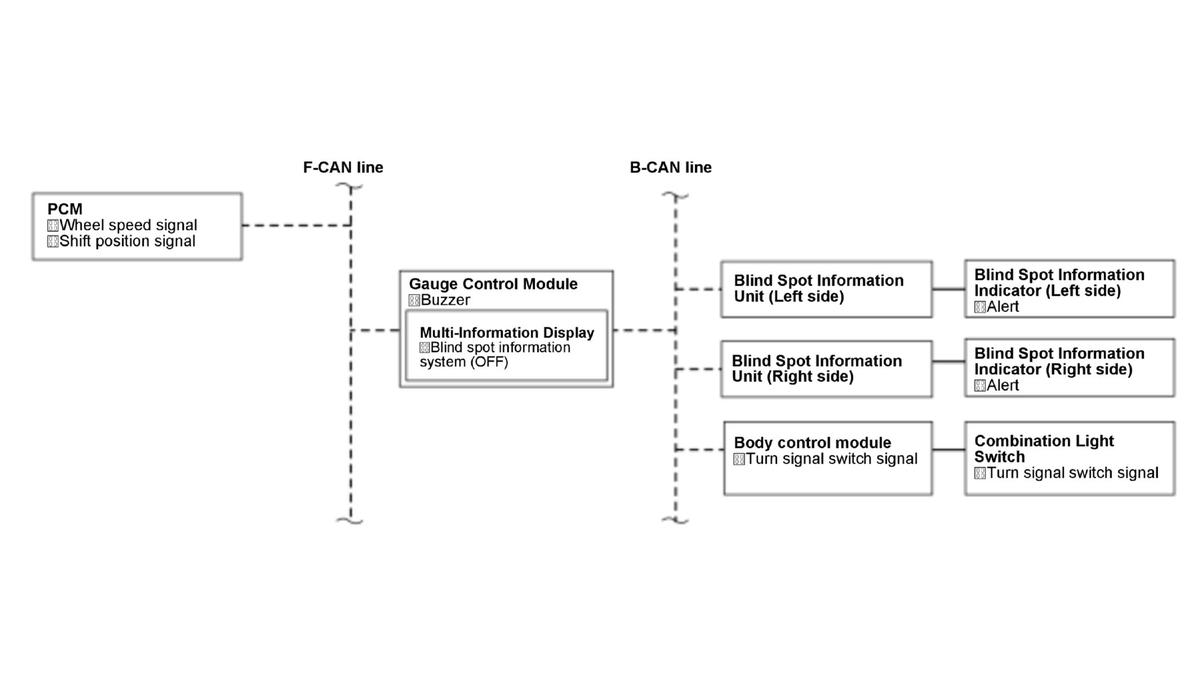

The system diagram of the BSI system is shown below.

For locations of each component on the vehicle, refer to Component Location Index:

• PCM
• Gauge control module
• Blind spot information units, Blind spot information indicators
• Body control module
• Combination Light Switch

Courtesy of HONDA, U.S.A., INC.
