RDM indicator (on the MID) does not go off
NOTE: *1: Without auto idle stop system *2: With auto idle stop system *3: CAN gateway 12P connector type *4: CAN gateway 16P connector type
- DTCs check
-1. Turn the vehicle to the ON mode.
-2. Check for DTCs with the HDS.
DTC Description DTC DTC (IDAS)
Are any DTCs indicated?
YES
Go to the indicated DTC's troubleshooting .
NO
Go to step 2.
- CAN gateway system DTC check
-1. Turn the vehicle to the ON mode.
-2. Check for DTCs with the HDS.
DTC Description DTC U0029-00 CAN Gateway F-CAN ch A Bus Off U0047-00 CAN Gateway F-CAN ch B Bus Off U3000-49 CAN Gateway Internal Failure Is DTC U0029-00, U0047-00, and/or U3000-49 indicated?
YES
Go to the indicated DTCs troubleshooting .
NO
Go to step 3.
- Fuse check1
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Check the following fuse.
Fuse No. D5 (10 A) *1No. F7 (7.5 A) *2 Location Under-dash fuse/relay box *1Auxiliary under-dash fuse/relay box *2 Is the fuse OK?
YES
The fuse is OK. Reinstall the fuse, then go to step 4.
NO
Replace the fuse. Turn the vehicle to the ON mode, then to the OFF (LOCK) mode. If the fuse blows again, repair the short to ground on the No. D5 (10 A) *1/F7 (7.5 A) *2 fuse circuit.
- Fuse check 2
-1. Check the following fuse.
Fuse No. D7 (10 A) *1No. F6 (5 A) *2 Location Under-dash fuse/relay box *1Auxiliary under-dash fuse/relay box *2 Is the fuse OK?
YES
The fuse is OK. Reinstall the fuse, then go to step 5.
NO
Replace the fuse. Turn the vehicle to the ON mode, then to the OFF (LOCK) mode. If the fuse blows again, repair the short to ground on the No. D7 (10 A) *1/F6 (5 A) fuse circuit.
- Gauge control module operation check
-1. Turn the vehicle to the ON mode.
-2. Check if all of the gauge indicators come on for a few seconds.
Do the indicators come on?
YES
Go to step 6.
NO
- Open wire check (IG1 OPTION *1/IG1 EBB *2 line):-1.
Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.
Millimeter wave radar 8P connector -3. Turn the vehicle to the ON mode.
-4. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Millimeter wave radar 8P connector: disconnected Test point 1 Millimeter wave radar 8P connector No. 1 Test point 2 Body ground Is there battery voltage?
YES
The IG1 OPTION *1/IG1 EBB *2 wire is OK. Go to step 7.
NO
Repair an open in the wire between the millimeter wave radar and the under-dash fuse/relay box *1/auxiliary under-dash fuse/relay box *2.
- Open wire check (GND line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Millimeter wave radar 8P connector: disconnected Test point 1 Millimeter wave radar 8P connector No. 8 Test point 2 Body ground Is there continuity?
YES
The GND wire is OK. Go to step 8.
NO
Repair an open in the wire between the millimeter wave radar and the body ground (G251).
- F-CAN circuit communication check
-1. Reconnect the following connector.
Millimeter wave radar 8P connector -2. Turn the vehicle to the ON mode.
-3. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.
F-CAN Bus Connected Unit Check
Which result is indicated?
Gauge control module (Bus A) is Not Available
Go to step 9.
Millimeter wave radar (Bus B) is Not Available
Go to step 10.
Millimeter wave radar and gauge control module are Detected
Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting .
- Open wire check (F-CAN A_H, F-CAN A_L lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connectors.

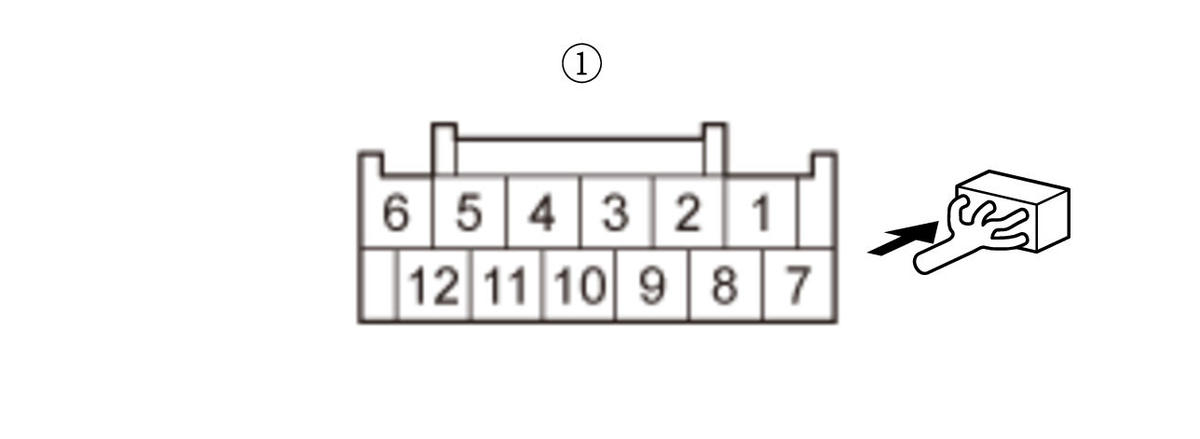

CAN gateway 12P connector *3CAN gateway 16P connector *4 Gauge control module connector A (32P) -3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode CAN gateway 12P connector *3: disconnectedCAN gateway 16P connector *4: disconnected Gauge control module connector A (32P): disconnected Test point 1 CAN gateway 12P connector *3 (female terminals) No. 3: CAN gateway 16P connector *4 (female terminals) No. 3:
Test point 2 Gauge control module connector A (32P) No. 19 Test point 1 CAN gateway 12P connector *3 (female terminals) No. 9: CAN gateway 16P connector *4 (female terminals) No. 11:
Test point 2 Gauge control module connector A (32P) No. 20 Is there continuity?
YES
Check for loose terminals in the CAN gateway 12P *3/16P *4 connector and gauge control module connector A (32P). If they are OK, substitute a known-good gauge control module , then retest. If the indicators come on then go off after substitution, replace the original gauge control module .
NO
Repair an open in the wire between the gauge control module and the CAN gateway.
- Open wire check (F-CAN B_H, F-CAN B_L lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connectors.

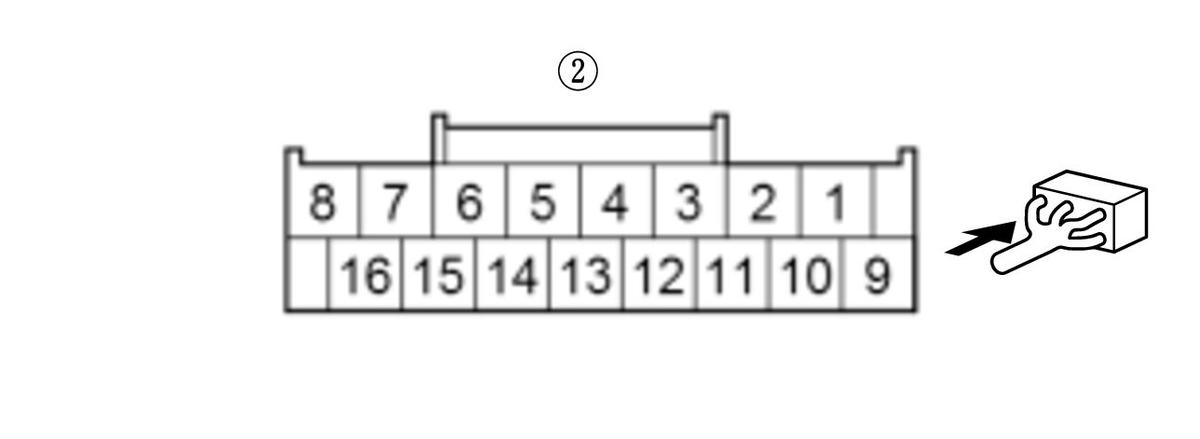

CAN gateway 12P connector *3CAN gateway 16P connector *4 Millimeter wave radar 8P connector -3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode CAN gateway 12P connector *3: disconnectedCAN gateway 16P connector *4: disconnected Millimeter wave radar 8P connector: disconnected Test point 1 CAN gateway 12P connector *3 (female terminals) No. 12: CAN gateway 16P connector *4 (female terminals) No. 6:
Test point 2 Millimeter wave radar 8P connector No. 7 Test point 1 CAN gateway 12P connector *3 (female terminals) No. 5: CAN gateway 16P connector *4 (female terminals) No. 14:
Test point 2 Millimeter wave radar 8P connector No. 6 Is there continuity?
YES
Check for loose terminals and poor connections in the millimeter wave radar 8P connector. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting. If they are OK, replace millimeter wave radar .
NO
Repair an open in the wire between the millimeter wave radar and the CAN gateway.
