Gauge Control Module Connector for Inputs and Outputs
| Connector Index |
|---|
| Gauge Control Module Connector A (32P) (with multi-information display and with auto idle stop system) |
| Gauge Control Module Connector A (32P) (with multi-information display and without auto idle stop system) |
| Gauge Control Module Connector A (32P) (without multi-information display) |
| Gauge Control Module Connector B (12P) (not used) |
| Gauge Control Module Connector C (3P) (display audio type) |

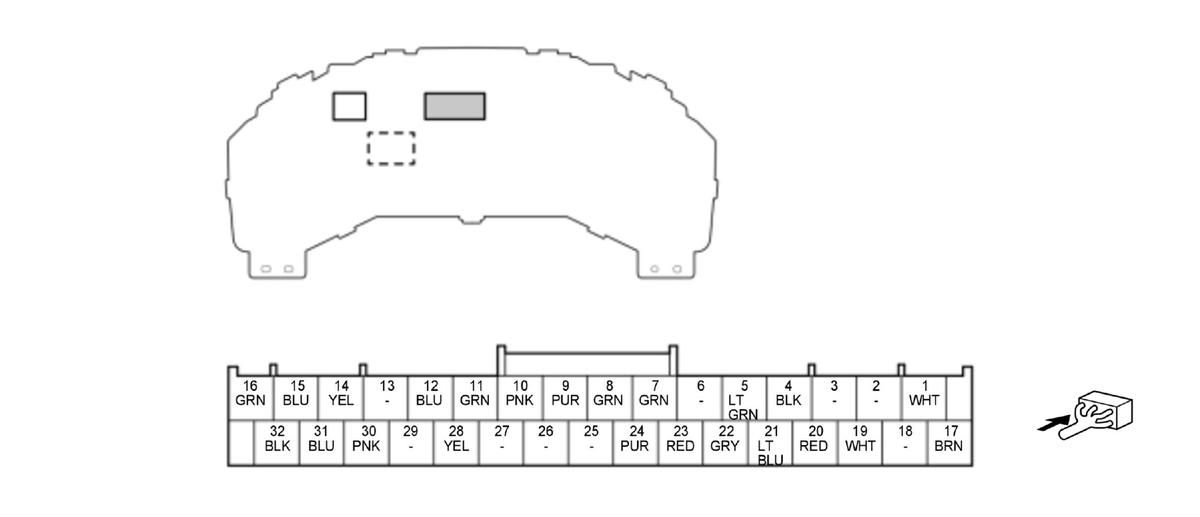

Gauge Control Module Connector A (32P) (female terminals) (with multi-information display and with auto idle stop system)
Gauge Control Module Connector A (32P) (female terminals) (with multi-information display and without auto idle stop system)
Gauge Control Module Connector A (32P) (female terminals) (without multi-information display)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B BACK UP | +B power source | About battery voltage at all times |
| 2 | --- | Not used | --- |
| 3 | --- | Not used | --- |
| 4 | GND | Gauge control module ground | Less than 0.2 V at all times |
| 5 | CRUISE GND | Ground for cruise control* 7 / ACC* 6 combination switch | Less than 0.2 V at all times |
| 6 | --- | Not used | --- |
| 7* 8 | CMBS OFF SW | Detects CMBS OFF switch signal | With vehicle in ON mode and CMBS OFF switch OFF: about battery voltage With vehicle in ON mode and CMBS OFF switch ON: less than 0.2 V |
| 8 | ECON SW | Detects ECON switch signal | With vehicle in ON mode and ECON switch OFF: about battery voltage With vehicle in ON mode and ECON switch ON: less than 0.2 V |
| 9 | VSA OFF SW | Detects VSA off switch signal | With vehicle in ON mode and VSA off switch OFF: about battery voltage With vehicle in ON mode and VSA off switch ON: less than 0.2 V |
| 10 | PARK LAMP | Detects VSA modulator-control unit (PARK LAMP) signal | --- |
| 11 | BRAKE LEVEL SW | Detects brake fluid level switch signal | With vehicle in ON mode and brake fluid level switch OFF: about battery voltage With vehicle in ON mode and brake fluid level switch ON: less than 0.2 V |
| 12 | BRAKE HOLD | Detects electric parking brake/automatic brake hold switch signal | --- |
| 13* 9 | IDLE STOP OFF | Detects idle stop OFF switch signal | With vehicle in ON mode and idle stop OFF switch OFF: about battery voltage With vehicle in ON mode and idle stop OFF switch ON: less than 0.2 V |
| 14 | CRUISE SW | Detects cruise control* 7 / ACC* 6 combination switch | With vehicle in ON mode: about 0.8-4.4 V (depending on cruise control combination switch) |
| 15 | ILL-(LED) | Detects illumination signal | --- |
*1: With CAN gateway*2: Without CAN gateway*3: With multi-information display*4: With TPMS*5: With washer fluid level switch*6: With ACC*7: Without ACC*8: With CMBS*9: With auto idle stop system*10: Without auto idle stop system
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 16 | ILLUMI-(BULB) | Detects illumination signal | --- |
| 17 | IG1 VST* 9IG1 METER* 10 | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 18 | --- | Not used | --- |
| 19 | F-CAN A_H* 1 | Communication line | --- |
| F-CAN_H* 2 | |||
| 20 | F-CAN A_L* 1 | Communication line | --- |
| F-CAN_L* 2 | |||
| 21 | FUEL GAUGE- | Ground for fuel gauge sending unit | --- |
| 22 | FUEL GAUGE+ | Detects fuel gauge sending unit signal | --- |
| 23 | LIN(START SW)* 3 | Communication line | --- |
| TPMS SW* 4 | Detects TPMS switch signal | --- | |
| 24* 5 | WASHER LEVEL SNSR | Detects washer fluid level switch signal | With vehicle in ON mode and washer fluid level switch OFF: about battery voltage With vehicle in ON mode and washer fluid level switch ON: less than 0.2 V |
| 25 | --- | Not used | --- |
| 26 | --- | Not used | --- |
| 27 | --- | Not used | --- |
| 28* 6 | DISTANCE SW | Detects ACC combination switch signal | With vehicle in ON mode: about 0.8-4.4 V (depending on cruise control combination switch) |
| 29 | --- | Not used | --- |
| 30 | B-CAN_H | Communication line | --- |
| 31 | B-CAN_L | Communication line | --- |
| 32 | GND | Gauge control module ground | Less than 0.2 V at all times |
*1: With CAN gateway*2: Without CAN gateway*3: With multi-information display*4: With TPMS*5: With washer fluid level switch*6: With ACC*7: Without ACC*8: With CMBS*9: With auto idle stop system*10: Without auto idle stop system

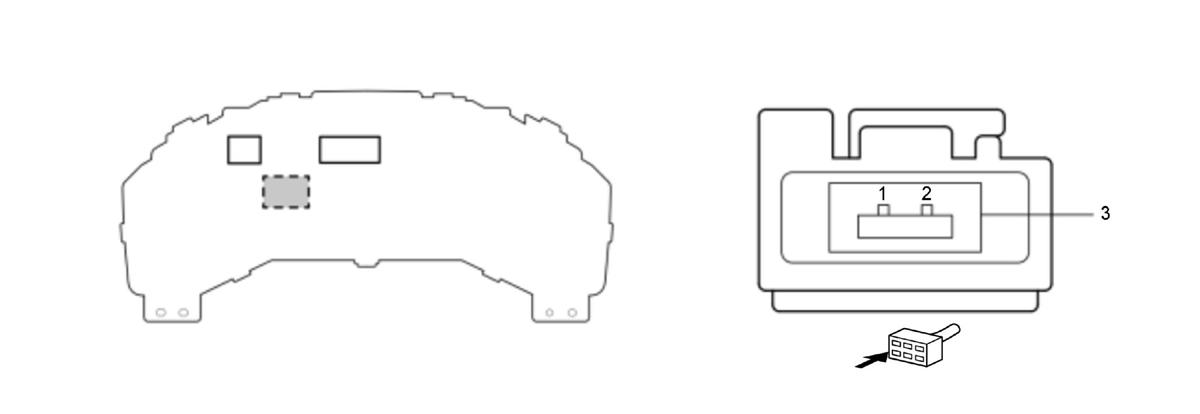

Gauge Control Module Connector C (3P) (female terminals) (display audio type)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | LVDS2+ | Communication line | --- |
| 2 | LVDS2- | Communication line | --- |
| 3 | LVDS2 SH | Shield for terminals No. 1 and No. 2 | Less than 0.2 V at all times |
