Millimeter Wave Radar Connector for Inputs and Outputs

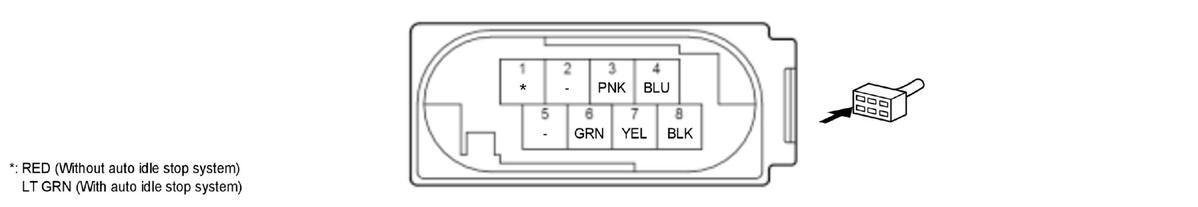

Millimeter Wave Radar 8P Connector (female terminals)
| Terminal number | Terminal name | Description |
| 1 | IG1 OPTION *1IG1 EBB *2 | Power source for the millimeter wave radar |
| 2 | Not used | - |
| 3 | ACC CAN-L | ACC CAN communication (low) circuit |
| 4 | ACC CAN-H | ACC CAN communication (high) circuit |
| 5 | Not used | - |
| 6 | F-CAN B_L | F-CAN B communication (low) circuit |
| 7 | F-CAN B_H | F-CAN B communication (high) circuit |
| 8 | GND | Ground circuit for the millimeter wave radar |
*1: Without auto idle stop system*2: With auto idle stop system
