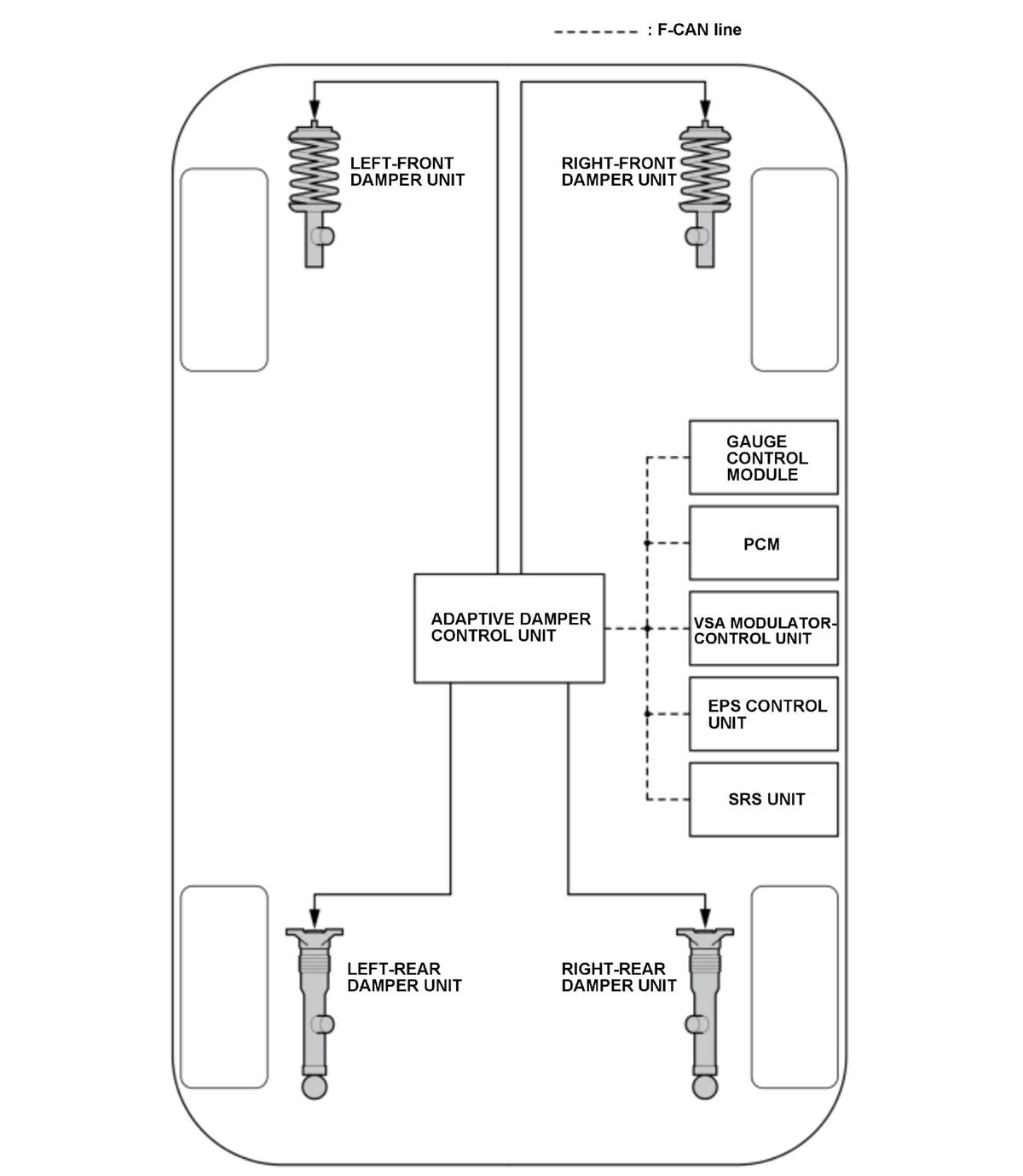

Adaptive Damper System Description - System Diagram

The adaptive damper system controller uses information from the PCM, the VSA modulator-control unit, the EPS control unit, and the SRS unit.When a malfunction is detected, the multi-information display will show a warning to inform the driver about the malfunction in the system.

For locations of each component on vehicle, refer to Component Location Index:

Adaptive damper control unit, Adaptive damper unit
PCM
VSA modulator-control unit
Gauge control module
EPS control unit
SRS unit

Courtesy of HONDA, U.S.A., INC.

F-CAN Communication Data

Adaptive Damper Control Unit Receiving Signal

Transmitting Unit	Signal Name
PCM	Engine torque signal Sport mode signal
VSA modulator-control unit	Master cylinder pressure signal Wheel speed signal ABS/TCS/VSA operating status
EPS control unit	Steering angle signal

Transmitting Unit	Signal Name
SRS unit	Yaw rate signal Lateral acceleration signal Longitudinal acceleration signal

Adaptive Damper Control Unit Transmitting Signal

Transmitting Unit	Signal Name
Adaptive damper control unit	System warning indication signal Fail safe action status
