Roof Opening Panel Glass: Installation

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

NOTE: This step will allow the initialization procedure to automatically align the roof opening panel glass.

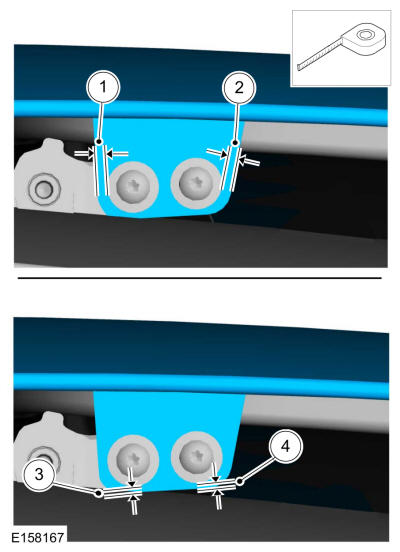

On both sides. If installing a new roof opening panel glass, make sure dimensions 1 and 2 are equal and dimensions 3 and 4 are equal.

GFD104801

Courtesy of FORD MOTOR COMPANY

3.

Initialize the power roof opening panel. REFER to: Power Roof Opening Panel Initialization - Vehicles With: Panoramic Roof Opening Panel.

4.

Verify the panel height at all 4 corners is within specifications. If glass panel height is not within specifications, align the roof opening panel. REFER to: Roof Opening Panel Alignment - Vehicles With: Panoramic Roof Opening Panel.
