Rear Lifter Arm: Installation

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

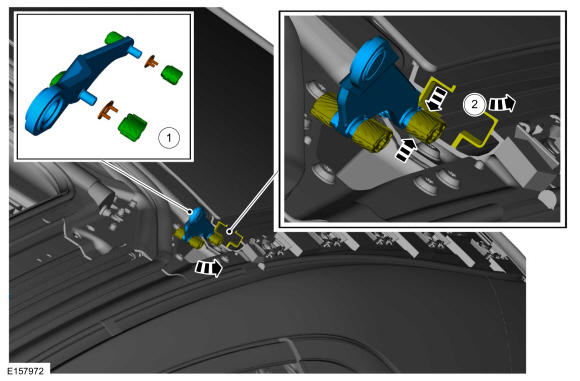

1. 1.

  Assemble the rear lifter arm.
1. 2.

  Install the rear lifter arm.

GFD104826

Courtesy of FORD MOTOR COMPANY

3.

Install the rear cam and the retainers.
Material

: Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque

: 44 lb.in (5 Nm)

GFD104827

Courtesy of FORD MOTOR COMPANY

4.

Refer to: Roof Opening Panel Alignment - Vehicles With: Panoramic Roof Opening Panel.

5.

Initialize the roof opening panel. REFER to: Power Roof Opening Panel Initialization - Vehicles With: Panoramic Roof Opening Panel.
