D-Pillar Trim

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Fig 1: Identifying D-Pillar Trim With Related Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

1. Remove these items:
   • Tailgate weatherstrip, as needed (see TAILGATE WEATHERSTRIP REPLACEMENT )
   • Rear side trim panel (see REAR SIDE TRIM PANEL  )
   • Cargo area light (see REAR INDIVIDUAL MAP LIGHT TEST/REPLACEMENT )
   • With power tailgate: Left tailgate side trim (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA  )
2. With power tailgate: Remove the pivot bracket mounting bolts, then push the power tailgate rod (A) in the D-pillar trim (B).
   Fig 2: Pushing Power Tailgate Rod In D-Pillar Trim With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Release the hooks (A) and the tabs (B) from the both D-pillar trims (C), and pull the rear roof trim (D) down by hand to detach the clips, then pass the seat belt (E) through the hole (F) in the trim.
   Fig 3: Identifying Hooks, Tabs, D-Pillar Trims, Rear Roof Trim, Clips, Seat Belt And Hole

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Pry off the lid (A), then remove the bolt from the D-pillar trim (B).
   Fig 4: Lid And D-Pillar Trim With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Hit the surface of the D-pillar trim (A) with a rubber mallet. The clip is located in the top of the D-pillar about 15mm behind the "SIDE CURTAIN AIRBAG" mark (B). Hitting the trim surface breaks the projections (C) on the pin (D) and pushes it into the grommet (E) on the body (F).
   NOTE: The clip must be replaced with a new one when the D-pillar trim is reinstalled.
   Fig 5: Hitting Surface Of D-Pillar Trim With Rubber Mallet

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the D-pillar trim (A).
   1. Detach the tabs (B) and the hooks (C) from the upper quarter window trim (D).
   2. Pull the D-pillar trim back by hand to detach the clips.
   3. With power tailgate: Disconnect the satellite speaker connector (E).

   Without power tailgate

   Fig 6: Identifying D-Pillar Trim With Related Components (Without Power Tailgate)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   With power tailgate

   Fig 7: Identifying D-Pillar Trim With Related Components (With Power Tailgate)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. If the side curtain airbag has deployed, replace the D-pillar trim and all of its clips.
8. If the side curtain airbag has not deployed, remove the upper clip (A) from the removed D-pillar trim (B) and discard it. Then check the trim and note the following:
   • To prevent the side curtain airbags from deploying, improperly and possibly causing injury, inspect the D-pillar trim and replace it if it has any of the following damage:
     • Any cracks, deformations, or stress-whitened areas in the D-pillar trim or rear roof trim (C)
     • Any cracks or stress-whitened areas in the clip seating surfaces (D)
   • If the clips (E) are damaged or stress-whitened, replace them with new ones.
   • Replace the upper clip with a new one.

   D-pillar trim

   Fig 8: Identifying Upper Clip, D-Pillar Trim, Clip Seating Surfaces And Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Rear roof trim

   Fig 9: Identifying Rear Roof Trim, Clip Seating Surface And Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Before installing the D-pillar trim (A), whether replaced or reinstalled, temporarily remove the new clip (B).
   Fig 10: Installing D-Pillar Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Check the overlap between the headliner and D-pillar trim, and if necessary, adjust it (see CHECKING AND ADJUSTING THE HEADLINER/PILLAR TRIM OVERLAP ).
11. Carefully reinstall the new upper clip (A) to the D-pillar trim (B). Make sure that the grommet (C) is nearest to the top of the pin (D) as shown.
    Fig 11: Installing Upper Clip To D-Pillar Trim

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Reinstall the D-pillar trim (A).
    1. Place the trim over the D-pillar (B), fit the upper clip (C), and all of the other clips into holes (D) in the body, then lightly push the trim into place.
    2. With power tailgate: Reconnect the satellite speaker connector (E).
       • Make sure the side curtain airbag isn't tucked under the clips or trim ribs.
       • Push lightly on the upper clip. If you push too hard, the clip will be damaged, and it will not hold the trim properly.

       Without power tailgate

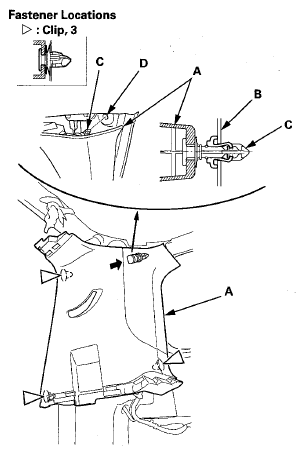

       Fig 12: Identifying D-Pillar Trim With Related Components (Without Power Tailgate)

       Courtesy of AMERICAN HONDA MOTOR CO., INC.

       With power tailgate

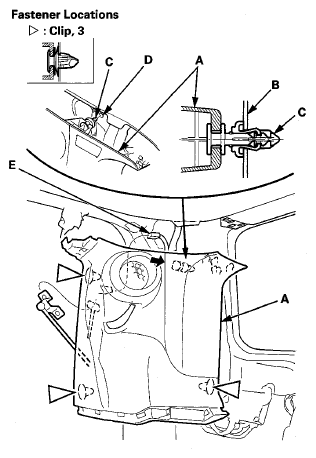

       Fig 13: Identifying D-Pillar Trim With Related Components (With Power Tailgate)

       Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. With power tailgate: Fasten the pivot bracket (A) on the tailgate.
    Fig 14: Pivot Bracket On Tailgate With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Reinstall all of the removed parts.
