Disconnecting System Connectors

Turn the ignition switch to LOCK(O). Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
Driver's Airbag
Remove the access panel (A) from the steering wheel, then disconnect the driver's airbag inflator 4P connector (B) on the cable reel harness.

Fig 1: Locating Access Panel And 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Front Passenger's Airbag
Remove the glove box (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
Disconnect the front passenger's airbag inflator 4P connector (A) on the dashboard wire harness.

Fig 2: Identifying Front Passenger's Airbag Inflator 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Side Airbag
Disconnect the driver's and the front passenger's side airbag inflator 2P connector (A) on the floor wire harness.

Fig 3: Identifying Front Passenger's Side Airbag Inflator 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Side Curtain Airbag
Remove the rear side trim panel (see step 11 on TRIM REMOVAL/INSTALLATION - CARGO AREA ).
Disconnect the left and right side curtain airbag inflator 2P connector (A) on the driver's side or floor wire harness.

Fig 4: Identifying Left And Right Side Curtain Airbag Inflator 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Seat Belt Tensioner
Remove the rear side trim panel (see step 11 on TRIM REMOVAL/INSTALLATION - CARGO AREA ).
Disconnect the driver's and the front passenger's seat belt tensioner 4P connector (A) on the floor wire harness.

Fig 5: Identifying Front Passenger's Seat Belt Tensioner 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SRS Unit
Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect SRS unit connectors A (39P) and B (39P) from the SRS unit.

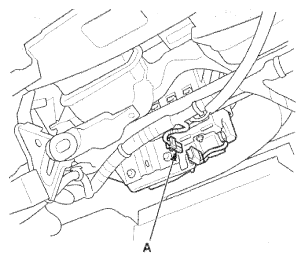

Fig 6: Identifying SRS Unit Connectors A (39P) And B (39P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
