Passenger's Dashboard Undercover Removal/Installation

NOTE: Take care not to scratch the dashboard or the related parts.

Remove the passenger's dashboard undercover (A).
1. Gently pull down the front edge of the cover to detach the clips.
2. Disconnect the footwell light connector (B) and detach the harness clip (C), if equipped.
3. Pull the cover away to release the pins (D), from the holders (E).

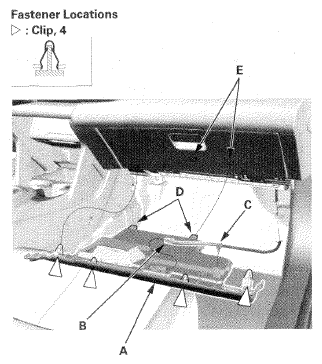

  Fig 1: Identifying Passenger's Dashboard Undercover, Footwell Light Connector, Harness Clip, Pins And Holders
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the pins into place securely.
- Make sure the foot light connector is plugged in properly, if equipped.
