Clutch Pedal Assembly Replacement

WARNING: This page is about a different variant/trim than selected.
NOTE: Put on gloves to protect your hands.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Disconnect the clutch pedal position switch connectors (A).
    Fig 1: Identifying Clutch Pedal Position Switch Connectors, Lock, Clevis Pins, Master Cylinder And Clutch Pedal Mounting Nuts
    G06950588Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pry out the lock pin (B), and pull the clevis pin (C) out of the clevis.
  4. Remove the master cylinder mounting nuts (D) and clutch pedal mounting nut (E).
  5. Remove the clutch pedal assembly (F).
  6. Remove clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C from the clutch pedal assembly (D).
    Fig 2: Identifying Clutch Pedal Position Switches Of Clutch Pedal Assembly
    G06950589Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Loosely install clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C to the clutch pedal assembly (D).
    NOTE:
    • Do not let the clutch pedal position switch contact the clutch pedal.
    • Make sure the installation position of each clutch pedal position switch is correct.

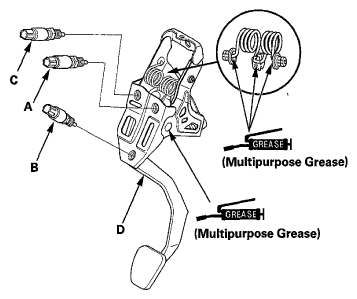

      Fig 3: Identifying Clutch Pedal Position Switches Of Clutch Pedal Assembly
      G06950590Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the clutch pedal assembly (A).
    NOTE:
    • Connect the clevis (B) to the clutch pedal, then apply multipurpose grease between the clutch pedal and the clevis.
    • Wipe off any excess grease.

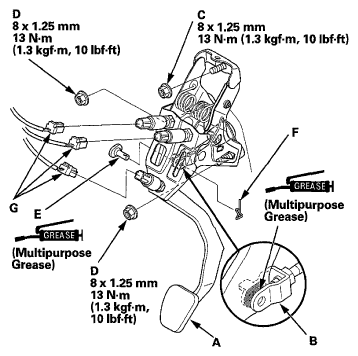

      Fig 4: Clutch Pedal Assembly With Torque Specifications
      G06950591Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the clutch pedal mounting nut (C) and master cylinder mounting nuts (D).
  10. Apply multipurpose grease to the clevis pin (E). Slide the clevis pin into the clevis, then install a lock pin (F).
  11. Connect the clutch pedal position switch connectors (G).
  12. Adjust the clutch pedal, clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C (see CLUTCH PEDAL AND CLUTCH PEDAL POSITION SWITCH ADJUSTMENT  ).
  13. Check the clutch operation.
  14. Install the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
