Clutch Pedal and Clutch Pedal Position Switch Adjustment

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • For a shift indicator operation problem, check clutch pedal position switch C (see SHIFT INDICATOR LAMP TROUBLESHOOTING ).
  • For a cruise control problem, check clutch pedal position switch B (see CRUISE CONTROL COMBINATION SWITCH TEST/REPLACEMENT ).
  • For a clutch interlock operation problem, check clutch pedal position switch A (see CLUTCH PEDAL POSITION SWITCH A TEST ).
  • If there is no clearance between the master cylinder piston and the push rod, the release bearing will be held against the diaphragm spring, which can result in clutch slippage or other clutch problems.
  • Before adjusting the clutch pedal and the clutch pedal position switch, check the clutch pedal and the clutch master cylinder are installed correctly and not damaged.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Disconnect the clutch pedal position switch B connector.
  3. Loosen the locknut (A) of clutch pedal position switch B, and back off clutch pedal position switch B until it no longer touches the clutch pedal (C).
    Fig 1: Clutch Pedal With Clutch Pedal Position Switch Locknut With Torque Specifications
    G06950583Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Pull the clutch pedal by hand, then turn clutch pedal position switch B until it contacts the clutch pedal.
  5. Turn in clutch pedal position switch B an additional 3/4 to 1 turn. Make sure the clutch pedal height did not change.
  6. While holding clutch pedal position switch B, tighten the locknut.
  7. Connect the clutch pedal position switch B connector.
  8. Measure the clutch pedal stroke (A).
    • If the clutch pedal stroke is within the standard, go to step  10.
    • If the clutch pedal stroke is not within the standard, go to step  9.

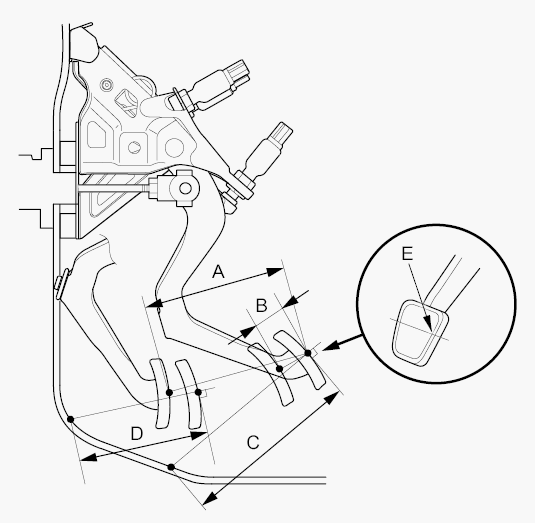

      Fig 2: Identifying Clutch Pedal Stroke, Clutch Pedal Height And Clutch Pedal Free Play
      G06950584Courtesy of AMERICAN HONDA MOTOR CO., INC.
      1. Clutch Pedal Stroke: 120-130 mm (4.72-5.12 in)
      2. Clutch Pedal Free Play (Reference): 4.5-18.5 mm (0.177-0.728 in)
      3. Clutch Pedal Height (Reference)*:
        CLUTCH PEDAL HEIGHT SPECIFICATIONS

        With clutch pedal pad cover 203.3 mm (8.004 in)
        Without clutch pedal pad cover 201.5 mm (7.933 in)
      4. Clutch Pedal Disengagement Height Specifications (Minimum to the floor) (Reference)*:
        CLUTCH PEDAL DISENGAGEMENT HEIGHT SPECIFICATIONS

        With clutch pedal pad cover 117.5 mm (4.626 in)
        Without clutch pedal pad cover 115.7 mm (4.555 in)

        *: Measure the clutch pedal height from right side middle of the clutch pedal cover or the clutch pedal pad cover (E) to the floor without the insulation.

  9. Inspect the length of the clutch master cylinder push rod (see CLUTCH MASTER CYLINDER REPLACEMENT  ).

    If the clutch master cylinder push rod was adjusted, go to step  2.

  10. Loosen the locknut (B) of clutch pedal position switch A.

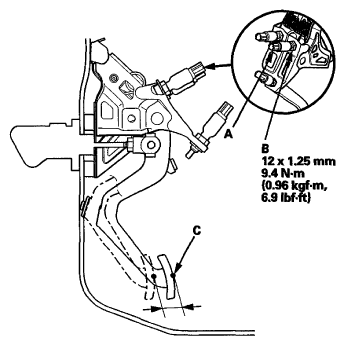

    Fig 3: Clutch Pedal Position Switch With Locknut With Torque Specifications
    G06950586Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Connect the Honda diagnostic system (HDS) to the data link connector (DLC) (see step 10 on TRANSMISSION FLUID INSPECTION AND REPLACEMENT ).
  12. Turn the ignition switch to ON (II).
  13. Make sure the HDS communicates with the vehicle. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  14. Fully press the clutch pedal to the floor, then release the clutch pedal 15-20 mm (0.59-0.79 in) and hold it there.
    NOTE: Measure the clutch pedal height from middle of the clutch pedal cover or the clutch pedal pad cover (C).
  15. Check the CLUTCH PEDAL POSITION SWITCH A in the PGM-FI DATA LIST with the HDS.
  16. Adjust clutch pedal position switch A when the HDS screen indicates CLOSE to OPEN.
    NOTE: Be careful not to twist the wire.
  17. While holding clutch pedal position switch A, tighten the locknut.
  18. Loosen the locknut (A) of clutch pedal position switch C.

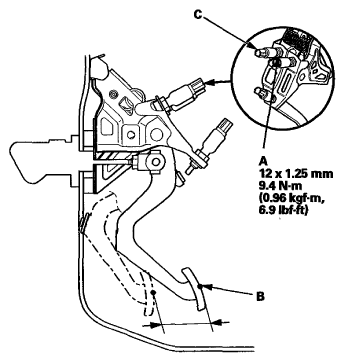

    Fig 4: Clutch Pedal Position Switch With Locknut With Torque Specifications
    G06950585Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Fully press the clutch pedal to the floor, then release the clutch pedal 48-53 mm (1.89-2.09 in) and hold it there.
    NOTE: Measure the clutch pedal height from middle of the clutch pedal cover or the clutch pedal pad cover (B).
  20. Check the CLUTCH PEDAL POSITION SWITCH A (C) in the PGM-FI DATA LIST with the HDS.
  21. Adjust clutch pedal position switch C when the HDS screen indicates CLOSE to OPEN.
    NOTE: Be careful not to twist the wire.
  22. While holding clutch pedal position switch C, tighten the locknut.
  23. Check the clutch pedal does not contact to clutch pedal position switch A body and the clutch pedal position switch C body when fully pressing the clutch pedal to the floor.
  24. Check the clutch operation.
  25. Check the shift indicator operation and the clutch interlock operation.
  26. Check the auto idle stop system (see AUTO IDLE STOP SYSTEM INSPECTION ).
  27. Install the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
