Camshaft Removal

  1. Remove the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
    NOTE: Plug the water bypass hoses.
  2. Remove the intake manifold/chamber assembly (see REMOVAL ).
  3. Disconnect the following engine wire harness connectors and wire harness clamps from the cylinder head:
    • Four injector connectors
    • Rocker arm oil control valve connector
    • Rocker arm oil pressure switch connector
    • ECT sensor 1 connector
    • CMP sensor connector
    • A/F sensor connector
    • Secondary HO2S connector
    • Oil pressure switch connector
    • Knock sensor connector

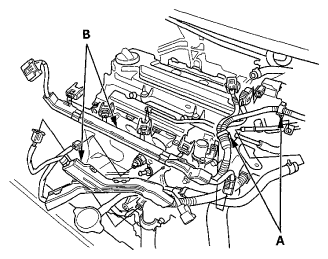

      Fig 1: Locating Harness Clamps And Harness Holders
      G06949452Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the harness clamps (A) with the harness holders (B).
  5. Remove the heater hose bracket (A) and the ground cable bolt (B).

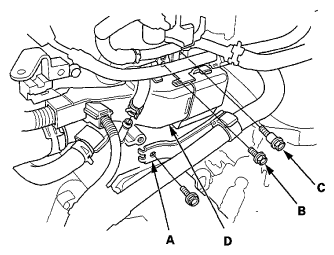

    Fig 2: Locating Harness Holder Bolt And Harness Holder
    G06949453Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the harness holder bolt (C), then remove the harness holder (D) from the bracket.
  7. Remove the camshaft sprocket (see CAMSHAFT SPROCKET REMOVAL  ).
  8. Remove the rocker arm assembly (see ROCKER ARM ASSEMBLY REMOVAL  ).
  9. Remove the CMP sensor (see CMP SENSOR REPLACEMENT ).
  10. Remove the camshaft thrust cover (A), then remove the camshaft (B).

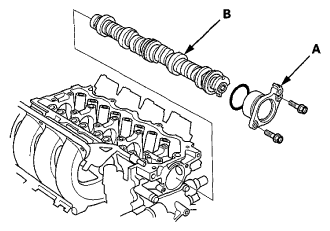

    Fig 3: Locating Camshaft Thrust Cover And Camshaft
    G06949454Courtesy of AMERICAN HONDA MOTOR CO., INC.
