Intake Manifold/Chamber Assembly Removal and Installation: Removal

Remove the engine cover.

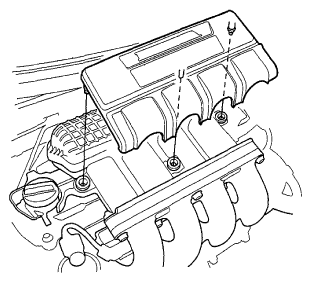

Fig 1: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Remove the engine wire harness connectors and wire harness clamps from the intake manifold chamber.
- Throttle actuator connector
- MAP sensor connector
Disconnect the brake booster vacuum hose (A).

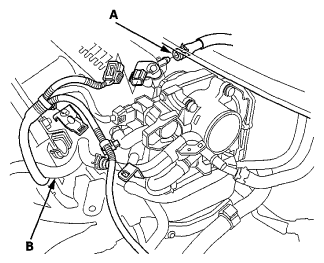

Fig 2: Identifying Brake Booster Vacuum Hose And Water Bypass Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the water bypass hose (B) from the clamp.
Remove the throttle body (A) without disconnecting the water bypass hoses.

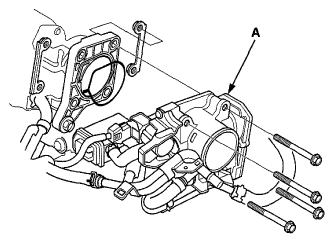

Fig 3: Identifying Throttle Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake manifold bracket mounting bolts.

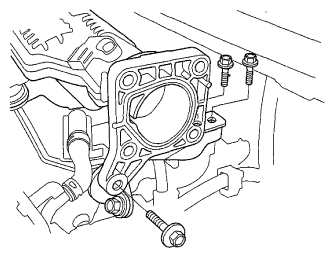

Fig 4: Identifying Intake Manifold Bracket Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the EGR valve connector (A) and the PCV hose (B).

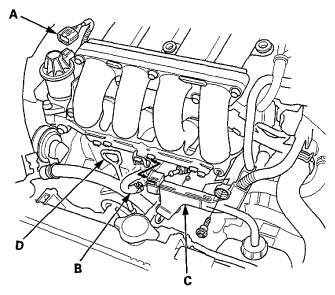

Fig 5: Identifying EGR Valve Connector And PCV Hose, Engine Wire Harness Holder And Dipstick
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the engine wire harness holder (C) and the dipstick (D).
Remove the intake manifold/chamber assembly from the cylinder head.

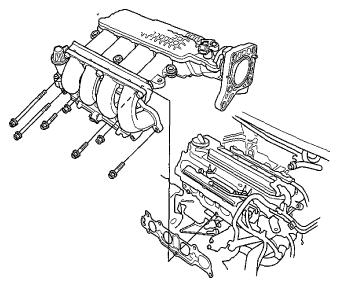

Fig 6: Identifying Intake Manifold/Chamber Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disassemble the intake manifold/chamber assembly.
NOTE: Refer to the EXPLODED VIEW if needed during this procedure.
