Rocker Arm Assembly Removal

  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  )
  2. Loosen the rocker arm adjusting screws (A).

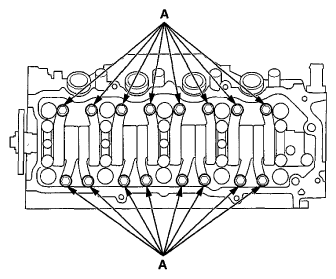

    Fig 1: Locating Rocker Arm Adjusting Screws
    G06949444Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Unscrew the rocker shaft mounting bolts two turns at a time, in the sequence below.
    NOTE: Bundle the intake rocker arms with rubber bands (A) to keep them together as a set.

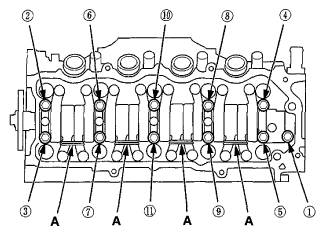

    Fig 2: Identifying Rocker Shaft Mounting Bolts Tightening Sequence
    G06949445Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the rocker shaft mounting bolts, then remove the rocker arm assembly (A).

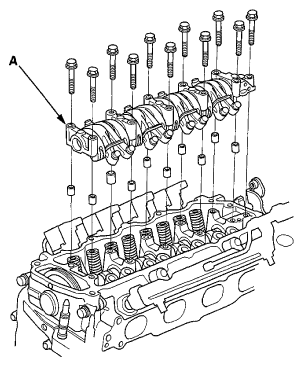

    Fig 3: Locating Rocker Shaft Mounting Bolts And Rocker Arm Assembly
    G06949446Courtesy of AMERICAN HONDA MOTOR CO., INC.
