Exploded View

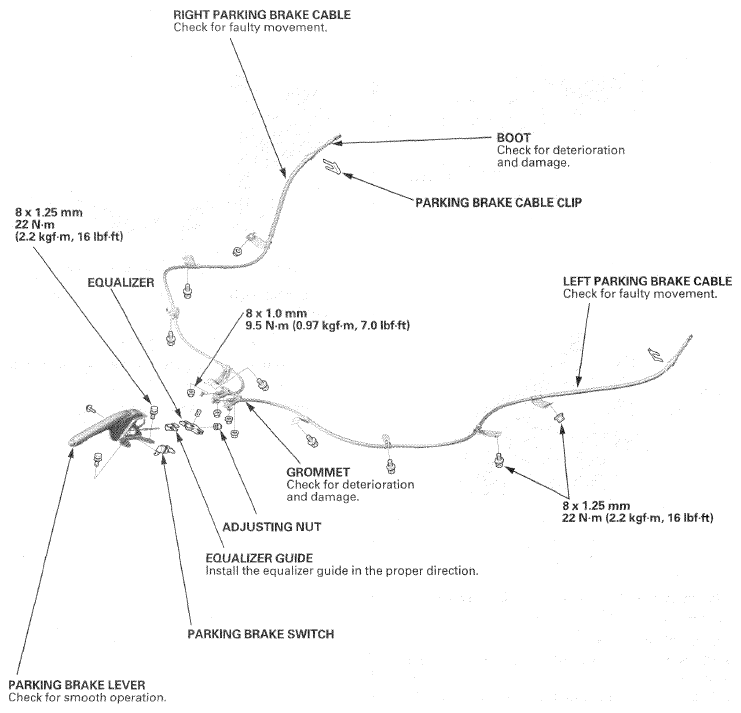

Fig 1: Exploded View Of Parking Brake Cable With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature cable failure.
Refer to the EXPLODED VIEW as needed during this procedure.

Release the parking brake lever fully.
Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Loosen the parking brake adjusting nut.
Disconnect the parking brake cables (A) from the equalizer (B).

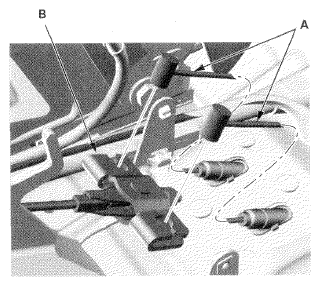

Fig 2: Identifying Parking Brake Cables And Equalizer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the middle floor undercover (see MIDDLE FLOOR UNDERCOVER REPLACEMENT ).
Remove the parking brake cable grommets (A), and pull out the parking brake cable from the body floor.

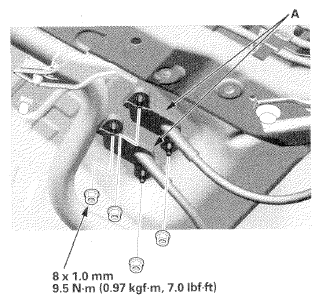

Fig 3: Parking Brake Cable Grommets With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the parking brake cable clip (A) from the parking brake cable (B).

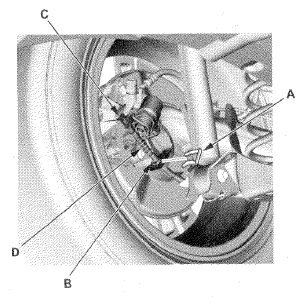

Fig 4: Identifying Parking Brake Cable Clip, Parking Brake Cable And Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the parking brake cable from the lever (C).
Remove the parking brake cable mounting hardware, then remove the cable.
Install the parking brake cable in the reverse order of removal, and note these items:
- Be careful not to bend or distort the cable, and boot (D).
- Make sure the parking brake cable clip is fully seated on the cable housing.
- Adjust the parking brake (see ADJUSTMENT ).
