Middle Floor Undercover Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrapped it with protective tape to prevent damage.

Remove the bolts and clips, then remove the middle floor undercover (A).
NOTE: To release the clips, pry up on the center pin at the notch (B).

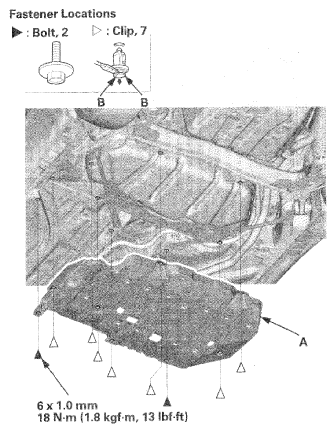

Fig 1: Middle Floor Undercover And Notch With Bolts And Clips With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the middle floor undercover in the reverse order of removal.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
