Brake Booster Replacement

  1. Remove the master cylinder (see MASTER CYLINDER REPLACEMENT  ).
  2. Disconnect the brake booster vacuum hose (A) from the brake booster.
    Fig 1: Brake Booster Vacuum Hose And IMA Motor Power Cable Bracket With Torque Specifications
    G06953137Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the IMA motor power cable bracket (B).
  4. Remove the brake lines (A) from the clamp (B).
    Fig 2: Identifying Brake Lines And Clamp
    G06953138Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the engine wire harness clamps (A) from the engine wire harness bracket (B).

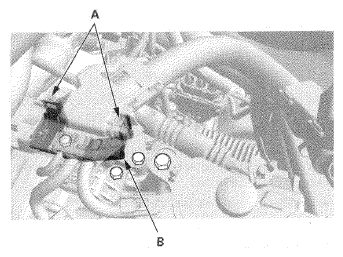

    Fig 3: Identifying Engine Wire Harness Clamps And Engine Wire Harness Bracket
    G06953139Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the engine wire harness clamp (A) from the engine wire harness bracket (B), then remove the engine wire harness bracket.

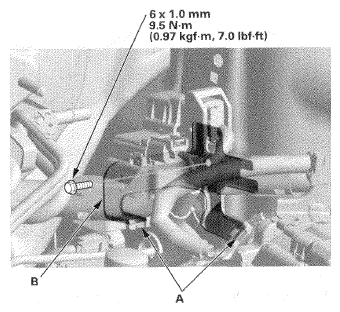

    Fig 4: Engine Wire Harness Clamp And Engine Wire Harness Bracket With Torque Specifications
    G06953140Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  8. Remove the lock pin (A) and the clevis pin (B), then disconnect the clevis from the brake pedal.
    NOTE: During installation, apply multipurpose grease to the clevis pin in the brake pedal.

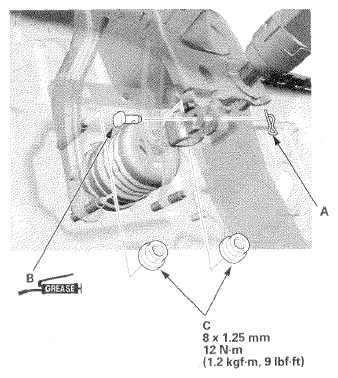

    Fig 5: Multipurpose Grease Applying Area On Clevis Pin In Brake Pedal With Torque Specifications
    G06953141Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the brake booster/brake pedal mounting nuts (C).
  10. Remove the brake booster (A) from the engine compartment.
    NOTE:
    • Be careful not to damage the booster surfaces and threads of the booster stud bolts.
    • Be careful not to bend or damage the brake lines or other components hoses and lines.
    NOTE: Use a new booster gasket (B) during reassembly.

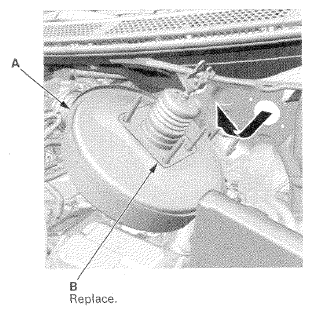

    Fig 6: Identifying Brake Booster And Booster Gasket
    G06953142Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the brake booster in the reverse order of removal, and note these items:
