Hood Opener Cable Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body or the related parts.
  • Take care not to kink the hood opener cable.
  1. Remove these items:
  2. Disconnect the hood opener cable (A) from the hood latch (B), and disconnect the hood opener cable from the hood release handle (C).

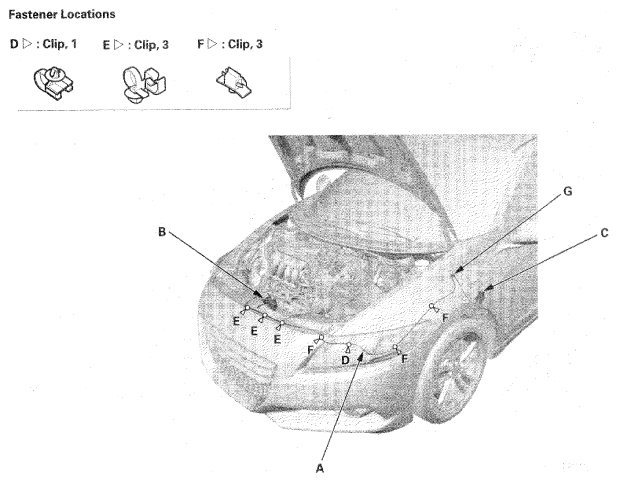

    Fig 1: Identifying Hood Opener Cable, Hood Latch, Hood Release Handle, Clips And Grommet
    G06953519Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Detach the clips (D, E, F) with a clip remover, and remove the grommet (G) from the body.
  4. Install the cable in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Make sure the cable is connected properly.
    • Make sure the hood opens properly and locks securely.
    • Push the clips into place securely.
