Front Inner Fender Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrapped it with protective tape to prevent damage.

Remove the front wheel.
Remove the front inner fender (A).
1. Canada models: On the back of the wheel arch, remove the screws (B) and the clip (C), then remove the front splash guard (D).
2. From under the front bumper (E), remove the screws (F) that secure the front bumper, the splash shield (G), the front bulkhead lower cover (H), and the front inner fender to the body.
3. Remove the clips (I), that secure the front bumper and the front inner fender.
4. From the wheel arch, remove the clip (J) that secure the splash shield and the front inner fender.
5. From the wheel arch, remove the clips (K, L, M) and the screws (N).
6. Release the hook (0) of the splash shield, then pull out the front inner fender.
  NOTE: To release the clips (C, I, J), pry up on the center pin at the notch (P).

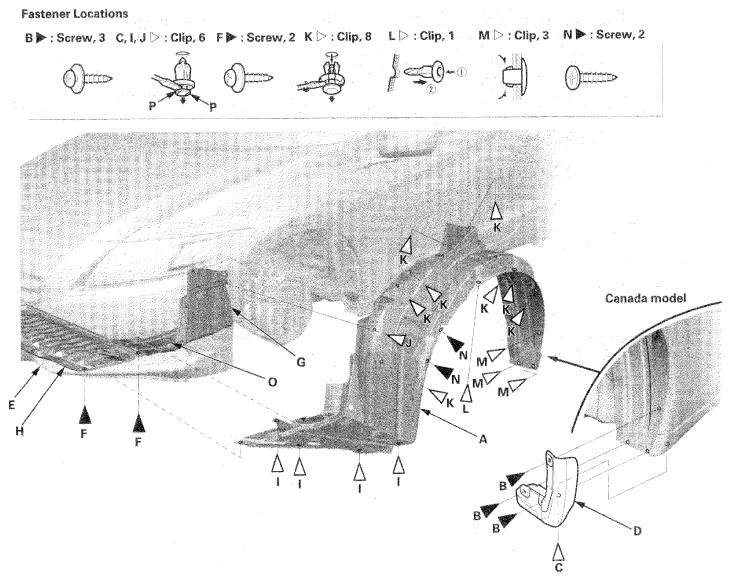

  Fig 1: Identifying Front Inner Fender, Front Bumper, Front Splash Guard, Front Bulkhead Lower Cover, Clips, Hooks, Screws And Nut
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the front inner fender in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hook into place securely.
Reinstall the front wheel.
