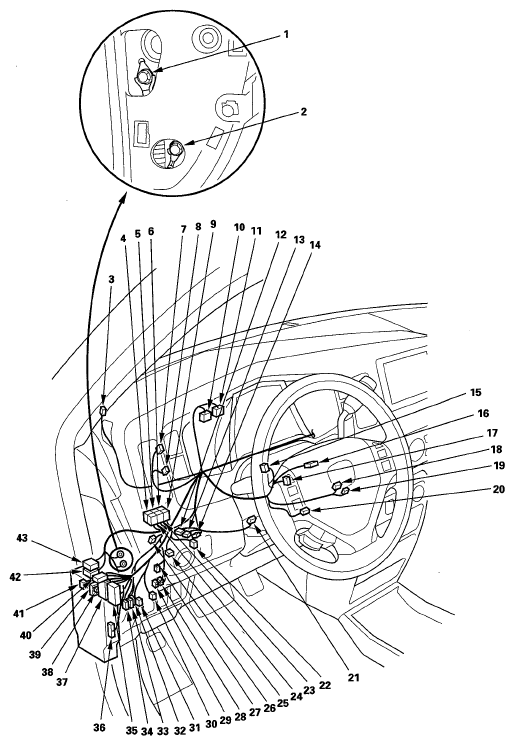

| Brake pedal position switch |
14 |
4 |
Under left side of dash |
|
|
| Cable reel connector A |
16 |
13 |
In steering column cover |
|
|
| Cargo area light relay |
23 |
4 |
Under left side of dash |
|
|
| Cargo area light switch |
22 |
5 |
Under left side of dash |
|
|
| Combination switch |
17 |
12 |
In steering column cover |
|
|
| Condenser (Brake light) |
26 |
2 |
Under left side of dash |
|
|
| D3 switch/park pin switch/shift lock solenoid |
15 |
6 |
In steering column cover |
|
|
| Dash lights brightness controller |
7 |
6 |
Under left side of dash |
|
|
| Daytime running lights relay |
4 |
5 |
Under left side of dash |
|
|
| Driver's airbag inflator |
21 |
4 |
Under left side of dash |
|
|
| Fog light switch |
31 |
5 |
Under left side of dash |
|
|
| Front accessory power socket relay |
5 |
4 |
Under left side of dash |
|
|
| Gauge control module connector A |
11 |
20 |
Behind gauge control module |
|
|
| Gauge control module connector B |
10 |
14 |
Behind gauge control module |
|
|
| Headlight switch |
25 |
6 |
Under left side of dash |
|
|
| Ignition key switch |
19 |
6 |
In steering column cover |
|
|
| Immobilizer control unit-receiver |
18 |
7 |
In steering column cover |
|
|
| Left tweeter |
3 |
2 |
Under left side of dash |
|
|
| Moonroof switch |
8 |
6 |
Under left side of dash |
|
|
| Parking brake switch |
28 |
1 |
Under left side of dash |
|
|
| Steering angle sensor |
20 |
5 |
In steering column cover |
|
|
| TPMS control unit connector A |
12 |
20 |
Under left side of dash |
|
|
| TPMS control unit connector B |
13 |
14 |
Under left side of dash |
|
|
| Trailer electric brake connector |
27 |
4 |
Under left side of dash |
|
|
| Trailer lighting relay 1 |
9 |
4 |
Under left side of dash |
|
|
| Trailer lighting relay 2 |
6 |
4 |
Under left side of dash |
|
|
| Under-dash fuse/relay box connector N (see
UNDER-DASH FUSE/RELAY BOX
) |
37 |
45 |
Left kick panel |
|
|
| Under-dash fuse/relay box connector P (MICU) (see
UNDER-DASH FUSE/RELAY BOX
) |
36 |
30 |
Left kick panel |
|
|
| Under-dash fuse/relay box connector R (see
UNDER-DASH FUSE/RELAY BOX
) |
38 |
2 |
Left kick panel |
|
|
| Under-dash fuse/relay box connector S (see
UNDER-DASH FUSE/RELAY BOX
) |
39 |
2 |
Left kick panel |
|
|
| Under-dash fuse/relay box connector X (see
UNDER-DASH FUSE/RELAY BOX
) |
35 |
39 |
Left kick panel |
|
|
| VSA OFF switch |
30 |
10 |
Under left side of dash |
|
|
| VTM-4 relay |
24 |
4 |
Under left side of dash |
|
|
| C204 |
34 |
34 |
Under left side of dash |
Right engine compartment wire harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
|
| C205 |
33 |
14 |
Under left side of dash |
Right engine compartment wire harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
|
| C206 |
41 |
3 |
Under left side of dash |
Right engine compartment wire harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
|
| C301 |
29 |
4 |
Under left side of dash |
Left engine compartment wire harness (see
LEFT ENGINE COMPARTMENT WIRE HARNESS ) |
|
| C302 |
32 |
23 |
Under left side of dash |
Left engine compartment wire harness (see
LEFT ENGINE COMPARTMENT WIRE HARNESS ) |
|
| C401 |
40 |
23 |
Under left side of dash |
Roof wire harness (see
ROOF WIRE HARNESS ) |
|
| C402 |
42 |
24 |
Under left side of dash |
Floor wire harness (see
FLOOR WIRE HARNESS (LEFT BRANCH) ) |
|
| C403 |
43 |
14 |
Under left side of dash |
Floor wire harness (see
FLOOR WIRE HARNESS (LEFT BRANCH) ) |
|
| G401 |
1 |
|
Under left side of dash |
Body ground, via dashboard wire harness |
|
| G403 |
2 |
|
Under left side of dash |
Body ground, via dashboard wire harness |
|
