Right Engine Compartment Wire Harness

RIGHT ENGINE COMPARTMENT WIRE HARNESS CONNECTOR REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
Auxiliary under-dash fuse holder 1 19 2 Under left side of dash
A/C condenser fan motor 27 2 Behind middle of front bumper
A/C condenser fan relay 33 5 Right side of engine compartment
A/C pressure switch 49 4 Right side of engine compartment
Accelerator pedal position sensors 1 and 2(APP1, APP2) 12 6 Right side of engine compartment
Diode (for A/C) 11 4 Under right side of dash
Fan control relay 32 5 Right side of engine compartment
Fog light relay 31 4 Behind right side of engine compartment
Horn (high) 35 1 Behind middle of front bumper
Left front initiator 22 3 Left side of engine compartment
Optional connector (for fog light) 39 2 Behind middle of front bumper
Outside air temperature sensor 29 2 Behind middle of front bumper
PCM connector A 45 49 Right side of engine compartment
Power steering pressure (PSP) switch 51 2 Right side of engine compartment
Radiator fan motor 25 2 Behind middle of front bumper
Radiator fan relay 30 4 Right side of engine compartment
Right daytime running light 41 2 Behind right side of bumper
Right fog light 38 2 Behind right side of bumper
Right front initiator 52 3 Right side of engine compartment
Right front turn signal/parking light 43 3 Behind right headlight
Right front wheel sensor 50 2 Right side of engine compartment
Right headlight 42 3 Behind right headlight
SRS right front impact sensor 36 2 Behind middle of front bumper
Security hood switch 28 2 Behind middle of front bumper   (1)
Under-dash fuse/relay box connector B (see UNDER-DASH FUSE/RELAY BOX ) 17 6 Under left side of dash
Under-dash fuse/relay box connector C (see UNDER-DASH FUSE/RELAY BOX ) 16 12 Under left side of dash
Under-dash fuse/relay box connector D (see UNDER-DASH FUSE/RELAY BOX ) 18 17 Under left side of dash
Under-hood fuse/relay box connector A (ELD unit) (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 9 3 Right side of engine compartment
Under-hood fuse/relay box connector B (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 1 1 Right side of engine compartment
Under-hood fuse/relay box connector C (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 2 2 Right side of engine compartment
Under-hood fuse/relay box connector D (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 10 9 Right side of engine compartment
Under-hood fuse/relay box connector E (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 3 16 Right side of engine compartment
Under-hood fuse/relay box connector F (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 4 20 Right side of engine compartment
Under-hood fuse/relay box connector G (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 8 2 Right side of engine compartment
Under-hood fuse/relay box connector H (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 7 18 Right side of engine compartment
Under-hood fuse/relay box connector J (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 5 10 Right side of engine compartment
Under-hood fuse/relay box connector K (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 6 5 Right side of engine compartment
Washer fluid level switch 37 2 Behind middle of front bumper
Windshield washer motor 40 2 Behind middle of front bumper
Windshield wiper motor 13 5 Left side of engine compartment
C101 47 23 Right side of engine compartment Engine wire harness (see ENGINE WIRE HARNESS )
C102 46 2 Right side of engine compartment Engine wire harness (see ENGINE WIRE HARNESS )
C201 53 12 Under right side of dash Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) )
C202 54 4 Under right side of dash Dashboard wire harness (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) )
C203 21 18 Under left side of dash Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS )
C204 15 34 Under left side of dash Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) )
C205 14 14 Under left side of dash Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) )
C206 20 3 Under left side of dash Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) )
C207 24 2 Left side of engine compartment Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS )
C208 (Junction connector) 34 4 Behind right headlight
C251 23 2 Left side of engine compartment ECT sensor subharness
G201 44   Right side of engine compartment Body ground, via right engine compartment wire harness
G202 48   Right side of engine compartment Body ground, via right engine compartment wire harness
(1) RTS, RTL, and EXL models

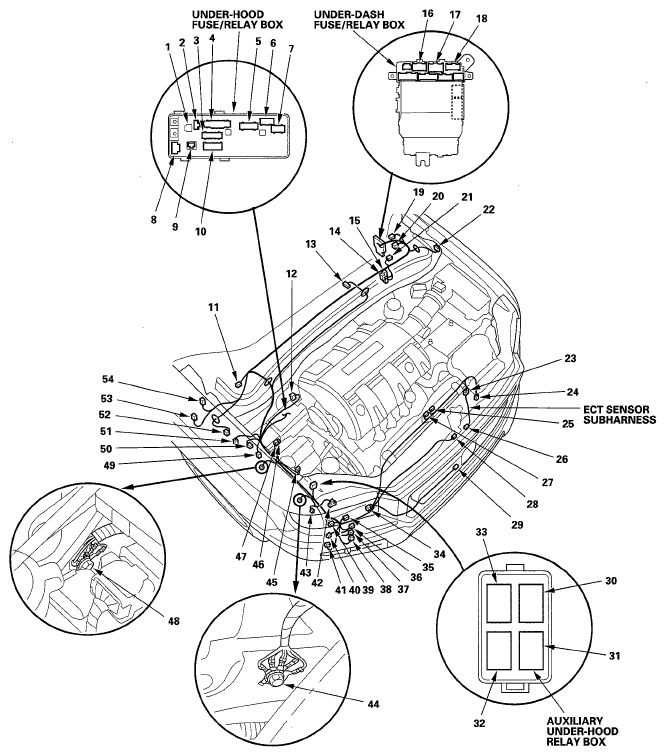

Fig 1: Identifying Under-Hood Fuse/Relay Box, Under-Dash Fuse/Relay Box, Ect Sensor Subharness And Auxiliary Under-Hood Relay Box
G05968595Courtesy of AMERICAN HONDA MOTOR CO., INC.
