Rear Wire Harness (N)

REAR WIRE HARNESS REFERENCE CHART

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

BSI control unit

Left rear side trim panel

⁽¹⁰⁾

Cargo area accessory power socket

Left rear side trim panel

Left BSI radar unit

Behind left side of rear bumper

⁽¹⁰⁾

Left rear turn signal light

Behind left taillight

Left satellite speaker

Left D-pillar

⁽¹⁾

Left side maker/taillight/brake light

Behind left taillight

Power tailgate control unit connector A

Left rear side trim panel

⁽⁸⁾

Power tailgate control unit connector B

Left rear side trim panel

⁽⁸⁾

Power tailgate control unit connector C

Left rear side trim panel

⁽⁸⁾

Power tailgate drive unit connector A

Left rear side trim panel

⁽⁸⁾

Power tailgate drive unit connector B

Left rear side trim panel

⁽⁸⁾

Power tailgate inside beeper

Behind left side of rear bumper

⁽⁸⁾

Rear fuse box connector A (see PASSENGER'S UNDER-DASH FUSE/RELAY BOX )

Left rear side trim panel

Right rear turn signal light

Behind right taillight

Right side maker/taillight/brake light

Behind right taillight

C609

Left rear side trim panel

Left side wire harness (left rear branch) (see Left Side Wire Harness (Left Rear Branch) (L) )

⁽¹⁾

C609

Left rear side trim panel

Left side wire harness (left rear branch) (see Left Side Wire Harness (Left Rear Branch) (L) )

⁽⁴⁾

C609

Left rear side trim panel

Left side wire harness (left rear branch) (see Left Side Wire Harness (Left Rear Branch) (L) )

⁽⁵⁾

C654

Right rear side trim panel

Right side wire harness (right rear branch) (see Right Side Wire Harness (Right Rear Branch) (M) )

⁽⁶⁾

C654

Right rear side trim panel

Right side wire harness (right rear branch) (see Right Side Wire Harness (Right Rear Branch) (M) )

⁽⁷⁾

C701

Left rear of roof

Roof wire harness:

With moonroof (see Roof Wire Harness (With Moonroof) (J) )
Without moonroof (see Roof Wire Harness (Without Moonroof) (J) )

⁽¹⁾

C701

Left rear of roof

Roof wire harness:

With moonroof (see Roof Wire Harness (With Moonroof) (J) )
Without moonroof (see Roof Wire Harness (Without Moonroof) (J) )

⁽²⁾

C701

Left rear of roof

Roof wire harness:

With moonroof (see Roof Wire Harness (With Moonroof) (J) )
Without moonroof (see Roof Wire Harness (Without Moonroof) (J) )

⁽³⁾

C801

Left rear of roof

Tailgate wire harness (see Tailgate Wire Harness (P) )

⁽⁸⁾

C801

Left rear of roof

Tailgate wire harness (see Tailgate Wire Harness (P) )

⁽⁶⁾, ⁽⁹⁾

C801

Left rear of roof

Tailgate wire harness (see Tailgate Wire Harness (P) )

⁽⁷⁾, ⁽⁹⁾

C802

Left rear of roof

Tailgate wire harness (see Tailgate Wire Harness (P) )

⁽⁸⁾

C802

Left rear of roof

Tailgate wire harness (see Tailgate Wire Harness (P) )

⁽⁹⁾

C803 (junction connector)

Behind left side of rear bumper

⁽¹⁰⁾

C804

Behind left side of rear bumper

Rear bumper subharness (see Rear Bumper Subharness (AG) )

⁽¹⁰⁾

C804

Behind left side of rear bumper

Rear bumper subharness (see Rear Bumper Subharness (AG) )

⁽¹¹⁾

G801

Behind right rear side trim panel

Body ground, via rear wire harness

G802

Behind right rear side trim panel

Body ground, via rear wire harness

⁽¹⁾	With ultrawide RES

⁽²⁾

With RES

⁽³⁾	With rear entertainment

⁽⁴⁾	With RES and with parking and back-up sensor system

⁽⁵⁾	Without rear entertainment, or with RES and with parking and back-up sensor system

⁽⁶⁾	With rearview camera

⁽⁷⁾	Without rearview camera

⁽⁸⁾	With power tailgate

⁽⁹⁾	Without power tailgate

⁽¹⁰⁾

With BSI

⁽¹¹⁾	Without BSI

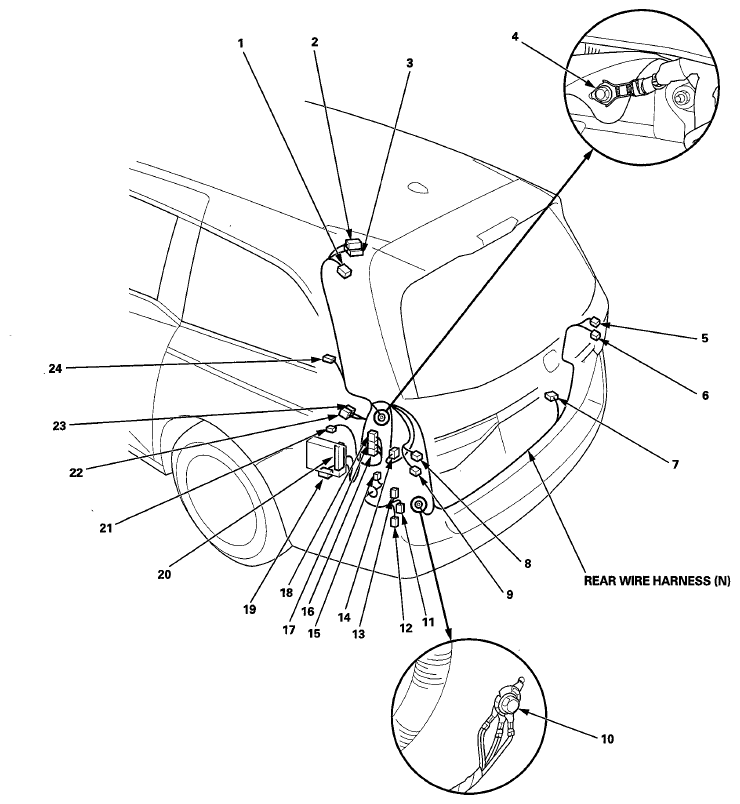

Fig 1: Identifying Rear Wire Harness

Courtesy of AMERICAN HONDA MOTOR CO., INC.
