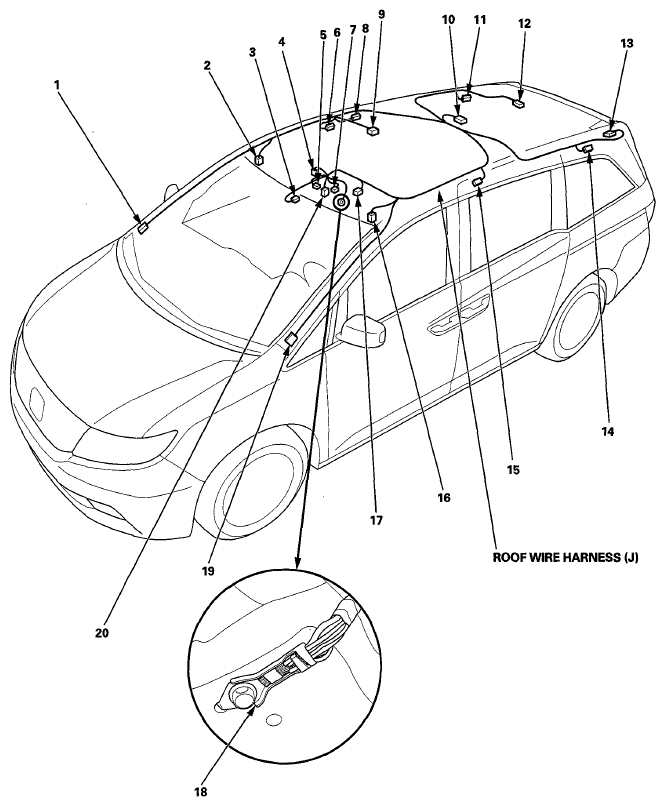

Roof Wire Harness (Without Moonroof) (J)
ROOF WIRE HARNESS (WITHOUT MOONROOF) REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Automatic dimming inside mirror |
3 |
7 |
Front of roof |
|
|
| Driver's vanity mirror light |
2 |
2 |
Left front of roof |
|
|
| Electrical compass unit |
10 |
6 |
Middle of roof |
|
|
| Front active noise cancellation (ANC) microphone |
5 |
3 |
Front of roof |
|
|
| Front HFL-ANC microphone |
5 |
7 |
Front of roof |
|
|
| Front Individual map lights |
4 |
3 |
Front of roof |
|
|
| HomeLink unit |
20 |
5 |
Front of roof |
|
|
| Left rear individual map light (2nd) |
15 |
3 |
Left middle of roof |
|
|
| Left rear individual map light (3rd) |
14 |
3 |
Left rear of roof |
|
|
| Optional connector (for automatic |
17 |
6 |
Front of roof dimming inside mirror) |
|
|
| Passenger's vanity mirror light |
16 |
2 |
Right front of roof |
|
|
| Rear A/C control panel |
6 |
5 |
Right middle of roof |
|
|
| Rear active noise cancellation (ANC) microphone |
12 |
3 |
Rear of roof |
|
|
| Rear controller and screen |
9 |
24 |
Middle of roof |
|
|
| Right rear individual map light (2nd) |
8 |
3 |
Right middle of roof |
|
|
| Right rear individual map light (3rd) |
11 |
3 |
Right rear of roof |
|
|
| Roof console |
7 |
12 |
Front of roof |
|
|
| C405 |
19 |
13 |
Under left side of dash |
Dashboard wire harness (view of driver's side) (see Dashboard Wire Harness (View of Driver's Side) (H) ) |
|
| C505 |
1 |
34 |
Under right side of dash |
Audio wire harness:
|
|
| C505 |
1 |
16 |
Under right side of dash |
Audio wire harness:
|
|
| C701 |
13 |
6 |
Left rear of roof |
Rear wire harness (see Rear Wire Harness (N) ) |
|
| C701 |
13 |
2 |
Left rear of roof |
Rear wire harness (see Rear Wire Harness (N) ) |
|
| G701 |
18 |
|
Front of roof |
Body ground, via roof wire harness |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
