Front Passenger's Door Wire Harness

CONNECTOR TERMINAL REFERENCE

Connector or Terminal	Ref	Cavities	Location	Connects to
Front passenger's door lock actuator	5	2	Front passenger's door
Front passenger's door speaker	6	2	Front passenger's door
Front passenger's power window motor	4	2	Front passenger's door
Front passenger's power window switch	3	5	Front passenger's door
Right power mirror	2	8	Front passenger's door
C781	1	14	Under right side of dash	Dashboard wire harness A '07-08 models (see DASHBOARD WIRE HARNESS A (RIGHT BRANCH) ('07-08 MODELS) ) '09 model with navigation system (see DASHBOARD WIRE HARNESS A (RIGHT BRANCH) ('09 MODEL WITH NAVIGATION SYSTEM) ) '09 model without navigation system (see DASHBOARD WIRE HARNESS A (RIGHT BRANCH) ('09 MODEL WITHOUT NAVIGATION SYSTEM) )

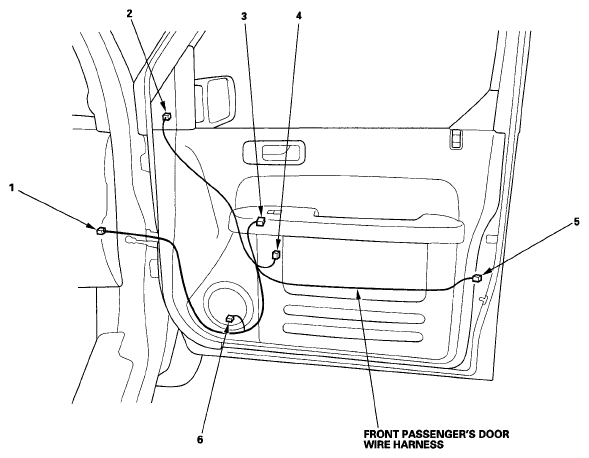

Fig 1: Identifying Front Passenger's Door Wire Harness Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
