Gauge Assembly Replacement

  1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ), then remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Place a clean shop towel under the gauge assembly to prevent scratching the steering column or dashboard.
  3. Remove the three mounting screws from the gauge assembly (A).

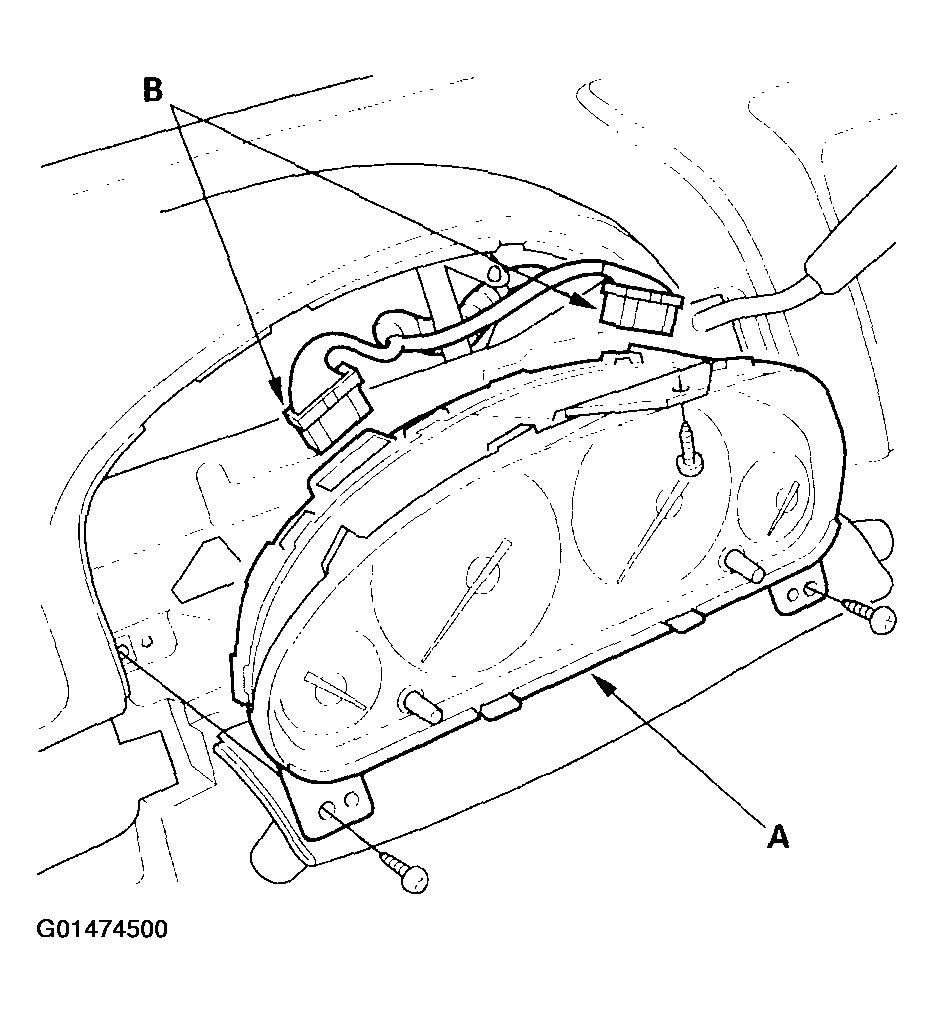

    Fig 1: Removing Three Mounting Screws From Gauge Assembly
    G01474500Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors (B), and remove the gauge assembly.
  5. Install the gauge assembly in the reverse order of removal.
