Instrument Panel Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the driver's dashboard lower cover (see Driver's Dashboard Lower Cover Removal/Installation ).
Remove the steering column upper cover (see STEERING COLUMN REMOVAL AND INSTALLATION ).
Gently pull out the instrument panel (A) along the bottom to release the clips.

Fig 1: Pulling Out Instrument Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the instrument panel (A).
1. Gently pull out the upper portion of the instrument panel to release the clips (B, C) and hooks (D, E, F, G).
2. Gently pull out on the panel being careful not to bend the trip/reset (H) and dash lights brightness controller (for some models).
3. On A/T model, slip the shift knob (I) through the hole in the instrument panel.

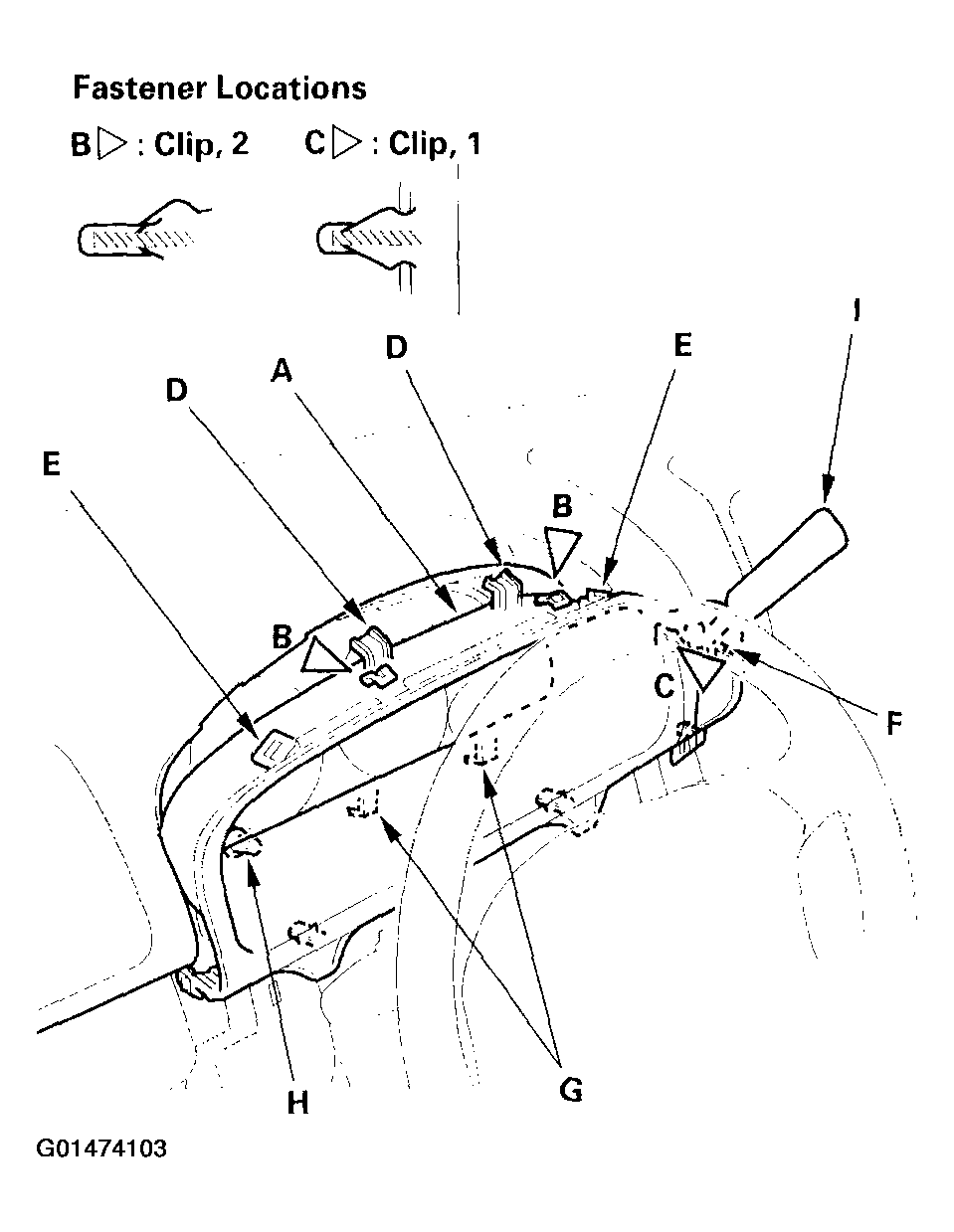

  Fig 2: Removing Instrument Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips and hooks into place securely.
