Driver's Dashboard Lower Cover Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Take care not to scratch the dashboard and related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Remove the screws (A) from the driver's dashboard lower cover (B).
1. Pull out the bottom of the fuse lid (C) to release the clips (D), and pull it down to release the hooks (E).
2. Remove the screw from the fuse lid opening.
3. Open the pocket, then remove the screw.

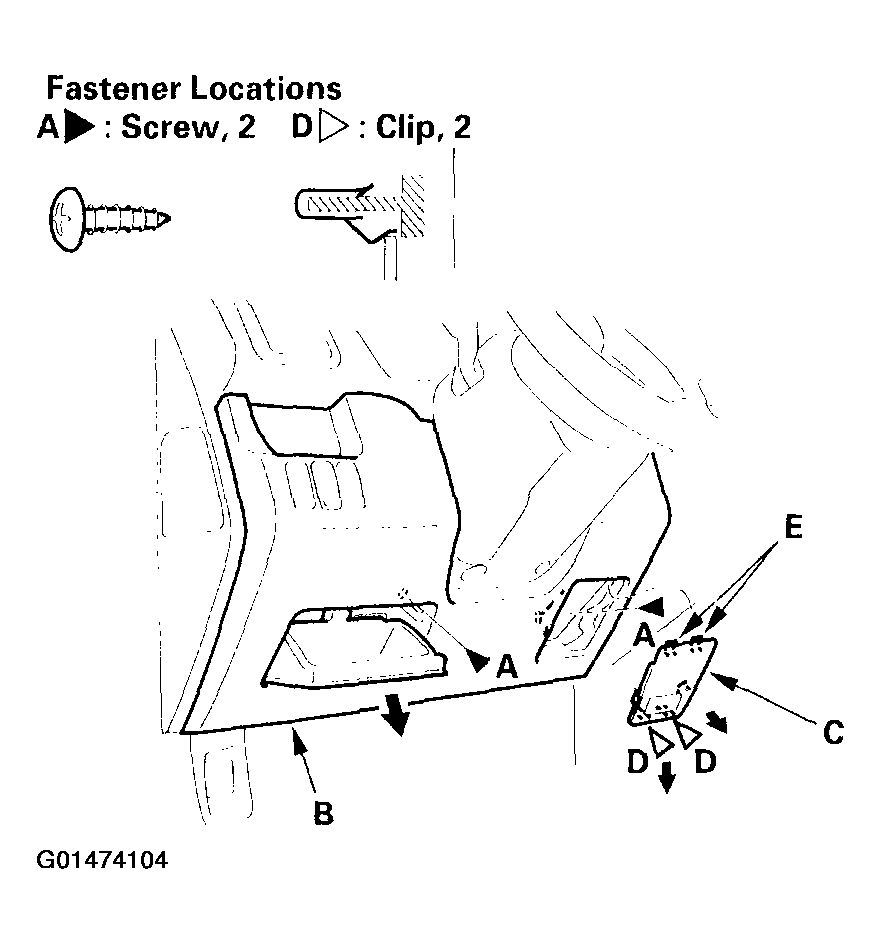

  Fig 1: Removing Screws From Driver's Dashboard Lower Cover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull out the bottom of the driver's dashboard lower cover (A) to release the clips.

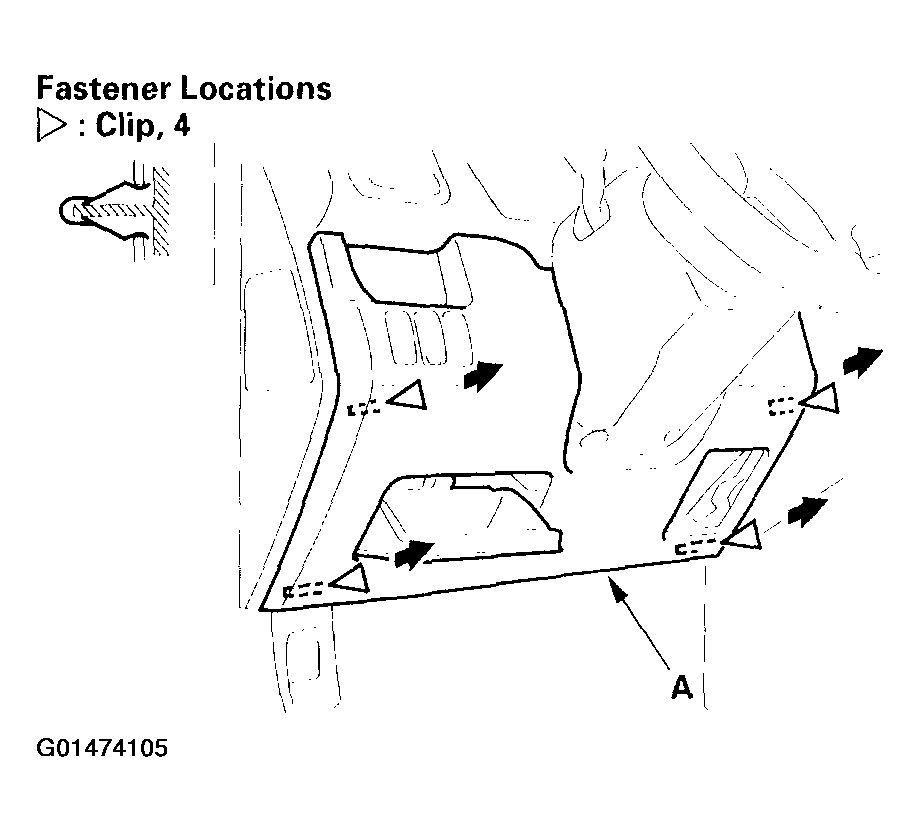

Fig 2: Pulling Out Bottom Of Driver's Dashboard Lower Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the driver's dashboard lower cover (A).
1. Pull out the upper portions of the cover to release the clips.
2. If equipped, disconnect the cruise control main switch connector (B), moonroof switch connector (C), in-car temperature sensor connector (D), air hose (E), and seat heater switch connector (F).

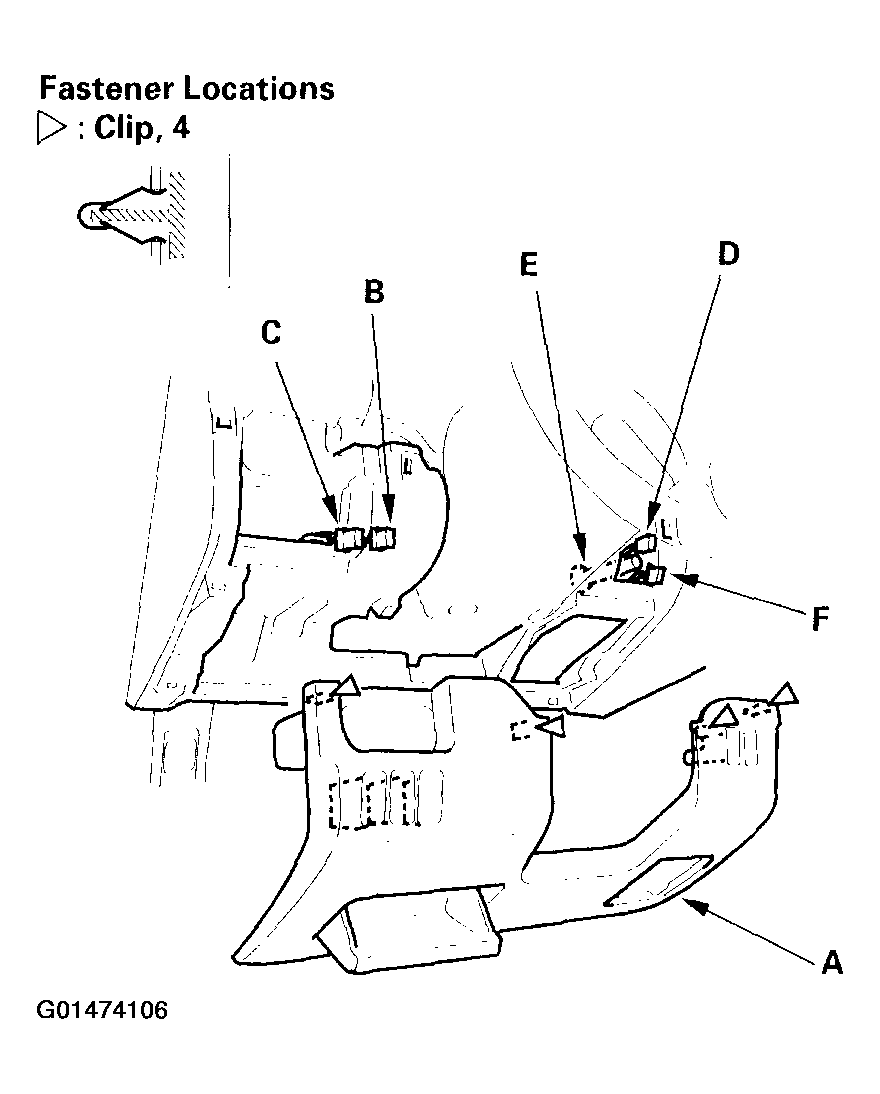

  Fig 3: Removing Driver's Dashboard Lower Cover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- Make sure that each connector is plugged in properly, and the air hose is connected properly.
- Replace any damaged clips.
- Push the clips into place securely.
