Dashboard Wire Harness B (right branch)

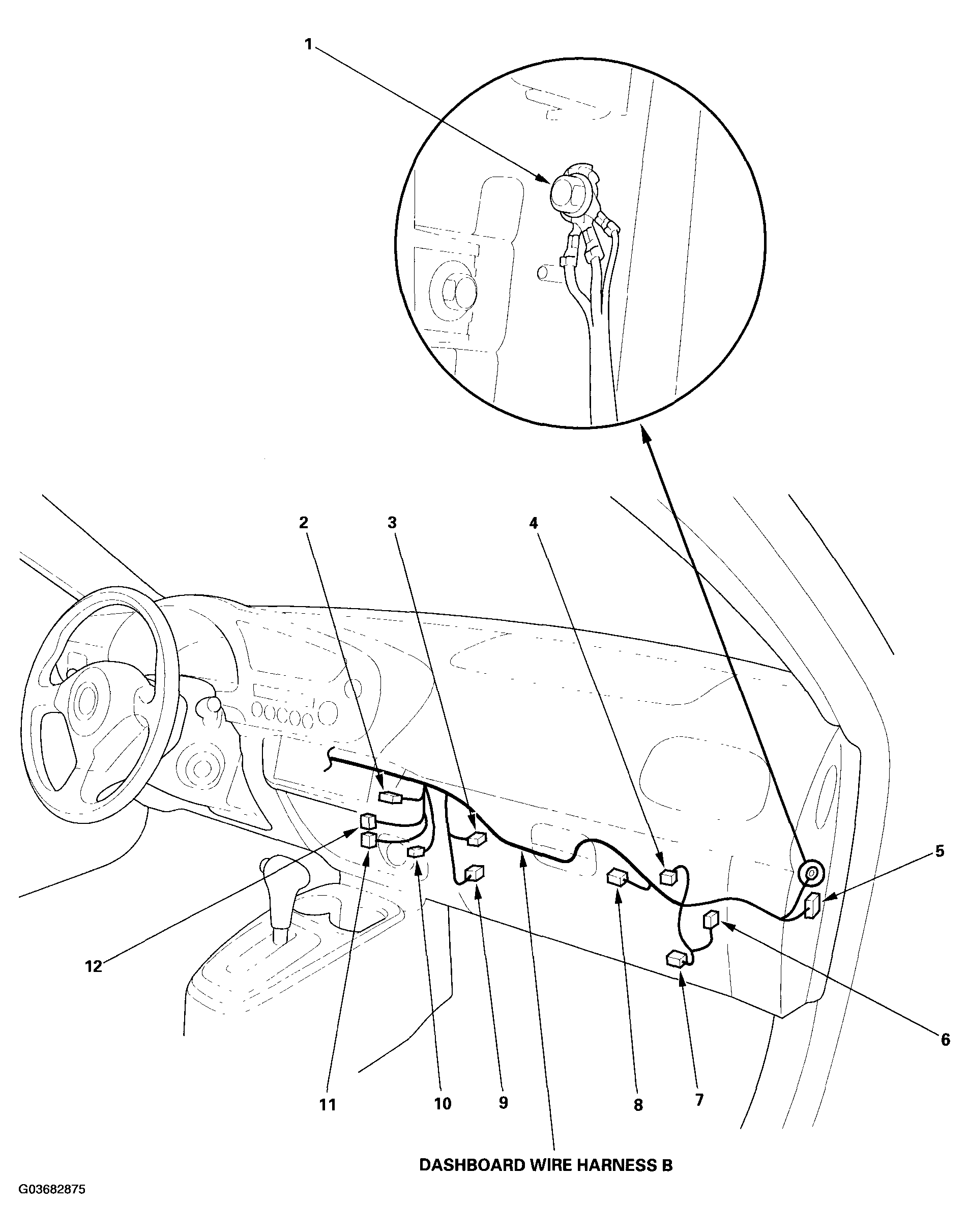

CONNECTOR TO HARNESS INDEX (DASHBOARD WIRE HARNESS B (RIGHT BRANCH))
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Accessory power socket | 10 | 2 | Behind accessory power socket | ||
| Air mix control motor | 9 | 5 | Behind glove box | ||
| Audio unit | 2 | 20 | Behind audio unit | ||
| Blower motor | 6 | 2 | Behind glove box | ||
| Blower motor high relay | 7 | 4 | Behind glove box | ||
| Evaporator temperature sensor | 3 | 2 | Behind glove box | ||
| Power transistor | 4 | 3 | Behind glove box | ||
| Recirculation control motor | 8 | 4 | Behind glove box | ||
| C408 | 11 | 16 | Behind center lower cover | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A ) | |
| C409 | 5 | 12 | Under right side of dash | Passenger's door wire harness (see PASSENGER'S DOOR WIRE HARNESS ) | |
| C410 | 12 | 10 | Behind center lower cover | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A ) | CTV |
| G404 | 1 | Under right side of dash | Body ground via dashboard wire harness B |
