Removal and Installation

  1. Disconnect the battery negative terminal from the trunk room.
  2. Remove the engine cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

  3. Remove the engine room under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

  4. Remove the LH and RH air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  5. Disconnect the water cooled intercooler outlet hose and then drain the water cooled intercooler coolant.

    (Refer to Cooling System - "WATER COOLED INTERCOOLER COOLANT ")

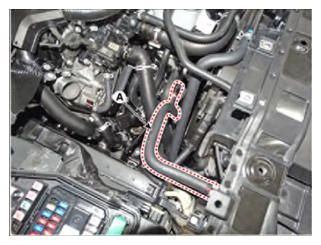

  6. Disconnect the water cooled intercooler inlet hose (A).
    G14728329Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the water cooled intercooler coolant reservoir tank and bracket.

    (Refer to Cooling System - "WATER COOLED INTERCOOLER COOLANT RESERVOIR TANK ")

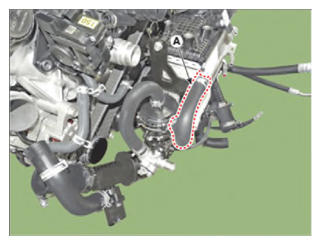

  8. Disconnect the electric water pump (EWP) hose (A).
    G14728330Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the ATF warmer.

    (Refer to Automatic Transmission System - "ATF WARMER ")

  10. Remove the electric water pump (EWP) and bracket.

    (Refer to Cooling System - "ELECTRIC WATER PUMP (EWP) ")

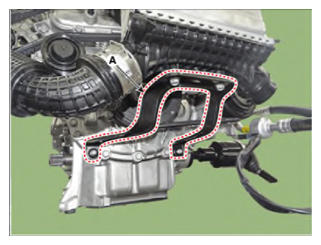

  11. Remove the water cooled intercooler mounting bracket (A).

    Tightening torque:

    Bolt: 21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

    Nut: 49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

    G14728331Courtesy of HYUNDAI MOTOR AMERICA

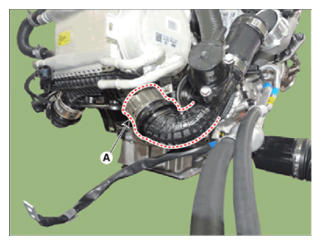

  12. Remove the water cooled intercooler LH inlet pipe (A).
    G14728332Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • When separate the intercooler inlet pipe, pull out the quick connector clamp (A) in the direction of the arrow as shown in the illustration below.
    G14728333Courtesy of HYUNDAI MOTOR AMERICA

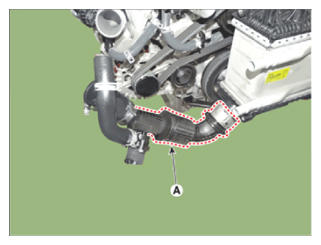

  13. Remove the water cooled intercooler RH inlet pipe (A).
    G14728334Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • When separate the intercooler inlet pipe, pull out the quick connector clamp (A) in the direction of the arrow as shown in the illustration below.
    G14728335Courtesy of HYUNDAI MOTOR AMERICA

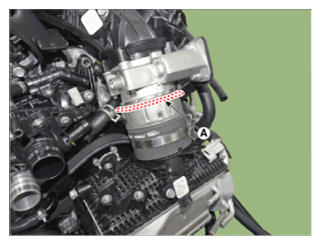

  14. Separate the intercooler outlet hose quick clamp (A).
    G14728336Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • When separate the intercooler outlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown in the illustration below.
    G14728337Courtesy of HYUNDAI MOTOR AMERICA

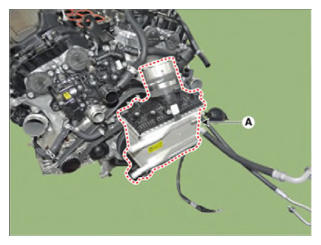

  15. Remove the water cooled intercooler (A) with the intercooler outlet hose.
    G14728338Courtesy of HYUNDAI MOTOR AMERICA
  16. Install in the reverse order of removal.
  17. Fill the water cooled intercooler coolant.

    (Refer to Cooling System - "WATER COOLED INTERCOOLER COOLANT ")

    NOTE:
    • The water cooled intercooler coolant must be injected according to the electric water pump (EWP) coolant filling method.
  18. Recheck coolant level.
