Installation Procedure

  1. GM5821220Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the hood. (2)

    2. CAUTION:

    Refer to Fastener Caution .

  2. Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications
  3. GM5810337Courtesy of GENERAL MOTORS COMPANY

    Hood Center Molding (1) - Install

  4. GM5810336Courtesy of GENERAL MOTORS COMPANY

    Hood Center Molding Nut (1) - Install and tighten [14x] - Fastener Specifications

  5. GM5821176Courtesy of GENERAL MOTORS COMPANY

    Hood Front Bumper (1) - Install [6x]

  6. GM5821177Courtesy of GENERAL MOTORS COMPANY

    Hood Front Weatherstrip (1) - Install

  7. GM5810924Courtesy of GENERAL MOTORS COMPANY

    Front Decorative Lamp (1) - Install

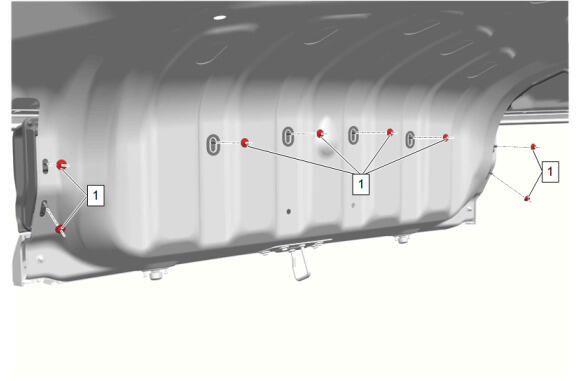

  8. GM5810923Courtesy of GENERAL MOTORS COMPANY

    Front Decorative Lamp Nut (1) - Install and tighten [8x] - Fastener Specifications

  9. Connect the electrical connector.
  10. Engage the 12 wiring harness retainers.
  11. GM6012793Courtesy of GENERAL MOTORS COMPANY

    Front Decorative Lamp Bolt (1) - Install and tighten [4x] - Fastener Specifications

  12. GM5816551Courtesy of GENERAL MOTORS COMPANY

    Hood Front Molding (2) - Install

  13. Hood Front Molding Nut (1) - Install and tighten [2x] - Fastener Specifications
  14. Adjust if necessary. Hood Adjustment
