Fastener Specifications

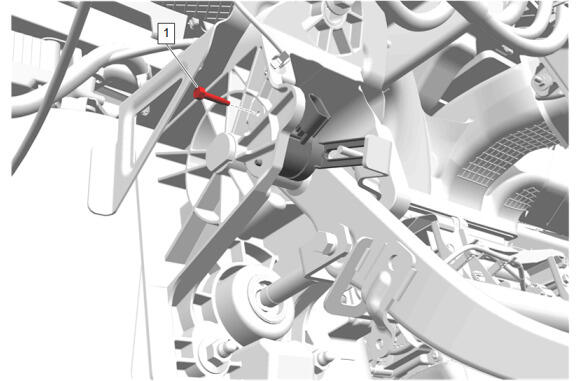

GM5939088Courtesy of GENERAL MOTORS COMPANY
Brake Pedal Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Brake Pedal Position Sensor Bolt - - 3 N.m (27 lb in) Brake Pedal Position Sensor Replacement
GM5899959Courtesy of GENERAL MOTORS COMPANY
Front Decorative Lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Decorative Lamp Nut [8x] - - 4.7 N.m (42 lb in) Front Decorative Lamp Replacement
GM6012793Courtesy of GENERAL MOTORS COMPANY
Front Decorative Lamp Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Decorative Lamp Bolt [4x] - - 2.5 N.m (22 lb in) Front Decorative Lamp Replacement

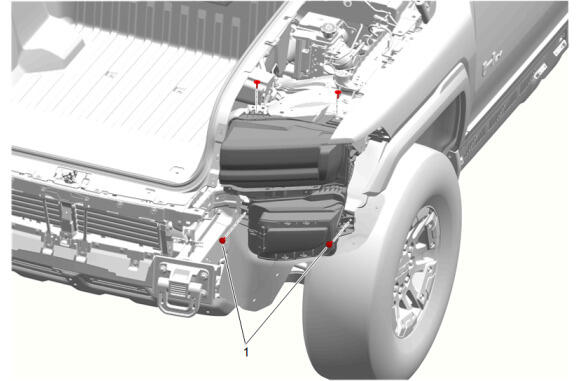

GM5899955Courtesy of GENERAL MOTORS COMPANY
Front Headlamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Headlamp Bolt [4x] - - 9 N.m (80 lb in) Front Headlamp Replacement

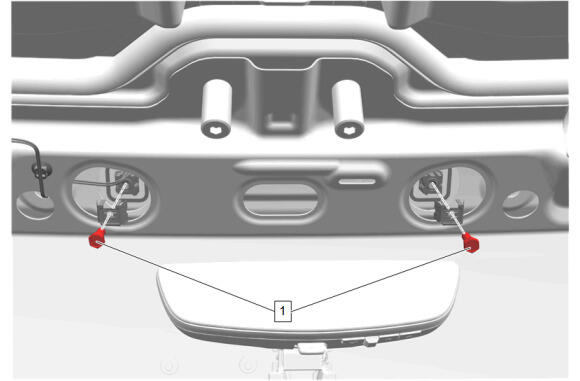

GM5900075Courtesy of GENERAL MOTORS COMPANY
Front Identification Lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Identification Lamp Bolt [2x] - - 9 N.m (80 lb in) Front Identification Lamp Replacement

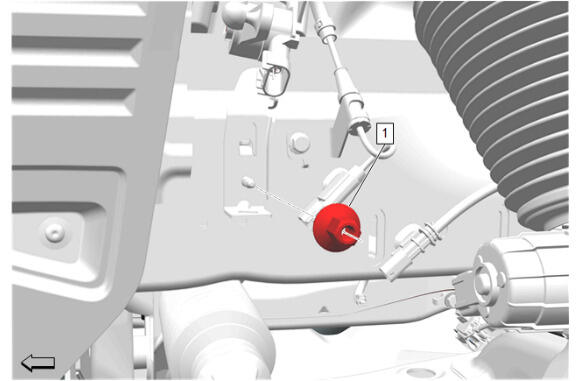

GM6014586Courtesy of GENERAL MOTORS COMPANY
Front Suspension Automatic Forward Lighting Position Sensor Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Suspension Automatic Forward Lighting Position Sensor Nut - - 9 N.m (80 lb in) Front Suspension Automatic Forward Lighting Position Sensor Replacement

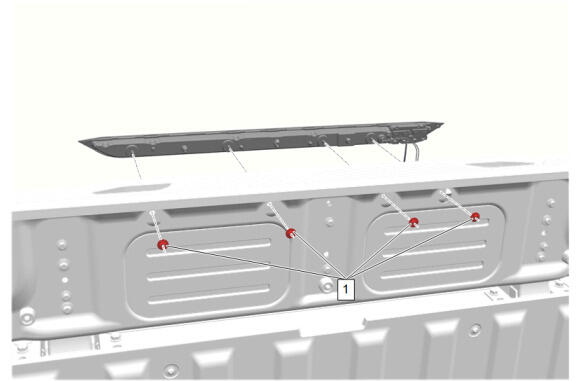

GM5900077Courtesy of GENERAL MOTORS COMPANY
High Mount Stop Lamp (GQH / GQI / GQO)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Signal Lamp Nut [4x] - - 1.2 N.m (11 lb in) High Mount Stop Lamp Replacement (GQH / GQI / GQO)

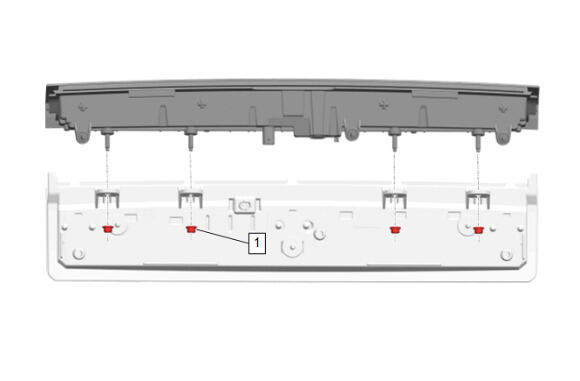

GM6178337Courtesy of GENERAL MOTORS COMPANY
High Mount Stop Lamp (GQ2 / GQB / GQC)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Mount Stop Lamp Nut [4x] - - 4.7 N.m (42 lb in) High Mount Stop Lamp Replacement (GQ2 / GQB / GQC)

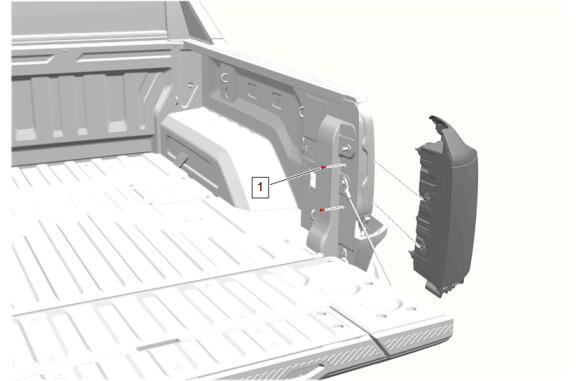

GM5899960Courtesy of GENERAL MOTORS COMPANY
Rear Body Structure Stop Lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Body Structure Stop Lamp Bolt [2x] - - 2.5 N.m (22 lb in) Rear Body Structure Stop Lamp Replacement (GQH / GQI / GQO)

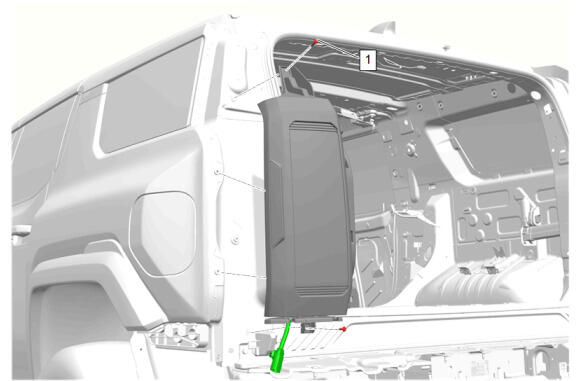

GM6152601Courtesy of GENERAL MOTORS COMPANY
Rear Body Structure Stop Lamp - Left Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Body Structure Stop Lamp Bolt [2x] - - 2.5 N.m (22 lb in) Rear Body Structure Stop Lamp Replacement - Left Side (GQ2 / GQB / GQC)

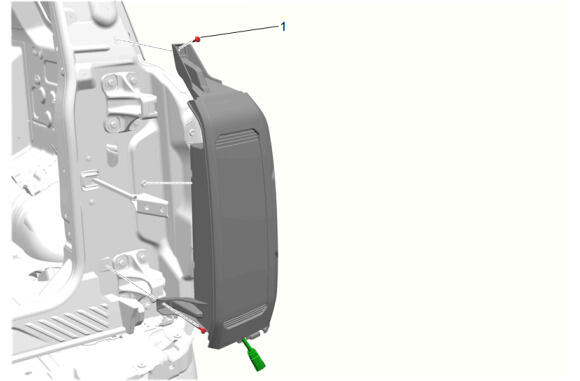

GM6152604Courtesy of GENERAL MOTORS COMPANY
Rear Body Structure Stop Lamp - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Body Structure Stop Lamp Bolt [2x] - - 2.5 N.m (22 lb in) Rear Body Structure Stop Lamp Replacement - Right Side (GQ2 / GQB / GQC)

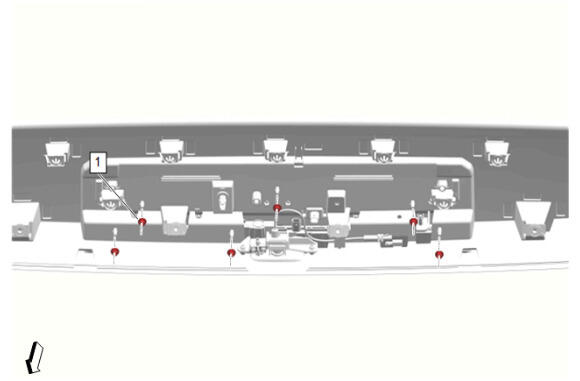

GM6176008Courtesy of GENERAL MOTORS COMPANY
Rear Identification lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear End Spoiler Nut [6x] - - 9 N.m (80 lb in) Rear Identification Lamp Replacement (GQH / GQI / GQO) , or Rear Identification Lamp Replacement (GQ2 / GQB / GQC)

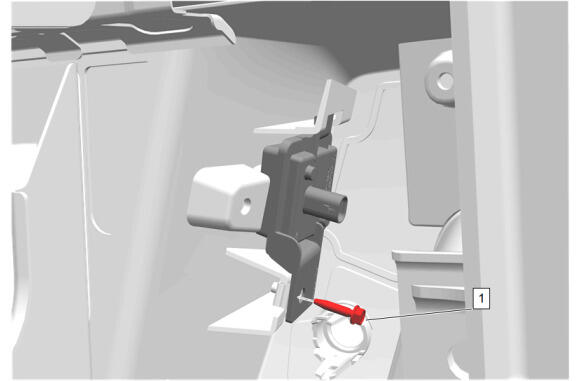

GM6046315Courtesy of GENERAL MOTORS COMPANY
Rear License Plate Lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear License Plate Lamp Bolt - - 2.5 N.m (22 lb in) Rear License Plate Lamp Replacement

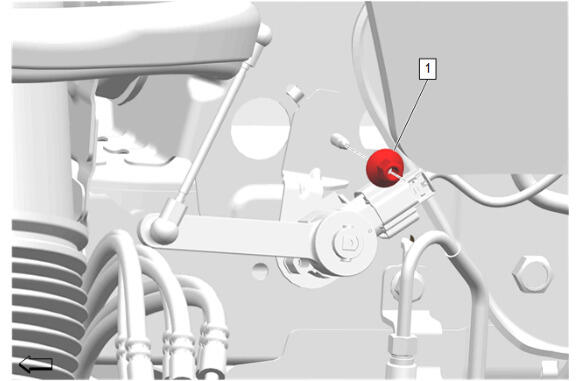

GM6014763Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut - - 12 N.m (106 lb in) Rear Suspension Automatic Forward Lighting Leveling Position Sensor Replacement
