Fastener Specifications

GM5810340Courtesy of GENERAL MOTORS COMPANY
Body Side Upper Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Body Side Upper Front Applique Bolt - - 9 N.m (80 lb in) Body Side Upper Front Applique Replacement
GM6013451Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [2x] - - 2.5 N.m (22 lb in) Front License Plate Bracket Replacement
GM5830443Courtesy of GENERAL MOTORS COMPANY
Front Fender Ornamentation Vent

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fender Ornamentation Vent Bolt - - 2.5 N.m (22 lb in) Front Fender Ornamentation Vent Replacement
GM5810299Courtesy of GENERAL MOTORS COMPANY
Front Fender Paint Protector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fender Paint Protector Bolt [3x] - - 2.5 N.m (22 lb in) Front Fender Paint Protector Replacement
GM5840318Courtesy of GENERAL MOTORS COMPANY
Front Grille

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Grille Bolt [2x] - - 2.5 N.m (22 lb in) Front Grille Replacement
GM5810336Courtesy of GENERAL MOTORS COMPANY
Hood Center Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Center Molding Nut [14x] - - 4.7 N.m (42 lb in) Hood Center Molding Replacement
GM5830438Courtesy of GENERAL MOTORS COMPANY
Hood Front Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Front Molding Nut [2x] - - 4.7 N.m (42 lb in) Hood Front Molding Replacement
GM6147015Courtesy of GENERAL MOTORS COMPANY
Liftgate Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Applique Bolt [2x] - - 2.5 N.m (22 lb in) Liftgate Applique Replacement

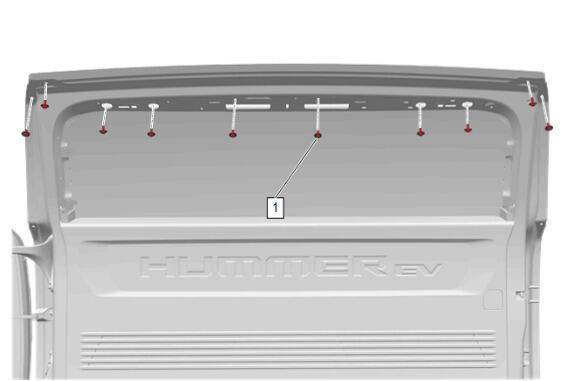

GM6147958Courtesy of GENERAL MOTORS COMPANY
Rear End Spoiler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear End Spoiler Bolt [10x] - - 9 N.m (80 lb in) Rear End Spoiler Replacement
GM5831304Courtesy of GENERAL MOTORS COMPANY
Roof Rear Spoiler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Rear Spoiler Bolt [4x] - - 9 N.m (80 lb in) Roof Rear Spoiler Replacement
2 Roof Rear Spoiler Nut [14x] - - 9 N.m (80 lb in) Roof Rear Spoiler Replacement
GM5810319Courtesy of GENERAL MOTORS COMPANY
Rear Tire Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Tire Front Air Deflector Bolt [3x] - - 2.5 N.m (22 lb in) Rear Tire Front Air Deflector Replacement

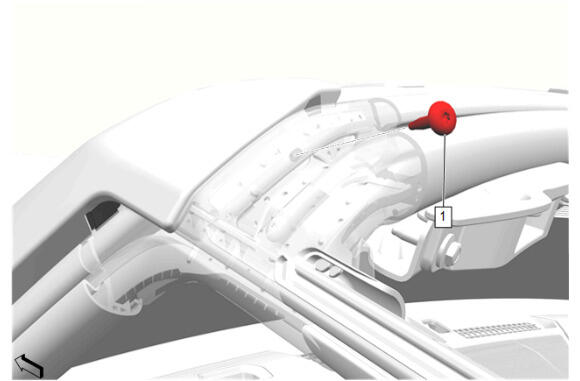

GM6104590Courtesy of GENERAL MOTORS COMPANY
Windshield Frame Weatherstrip Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Frame Weatherstrip Bolt - - 2.5 N.m (22 lb in) Body Side Upper Front Applique Replacement
