Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the liftgate. (2)

CAUTION:

Liftgate Hinge Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the clip is fully seated when the rod is reinstalled. If the clip cannot be fully seated, a new rod should be installed.

{ If equipped } Liftgate Strut (1) - Install
{ If equipped } Install the 2 metal clips to the end of the liftgate strut (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the clip is fully seated when the rod is reinstalled. If the clip cannot be fully seated, a new rod should be installed.

Liftgate Power Assist Actuator (2) - Install
First install the liftgate end of the liftgate power assist actuator (2) and then install the body side.
Install the 2 metal clips to each end of the liftgate power assist actuator (2).
Install the liftgate power assist actuator harness grommet (1).
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Body Rear Corner Upper Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Body Rear Corner Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the rear washer hose.

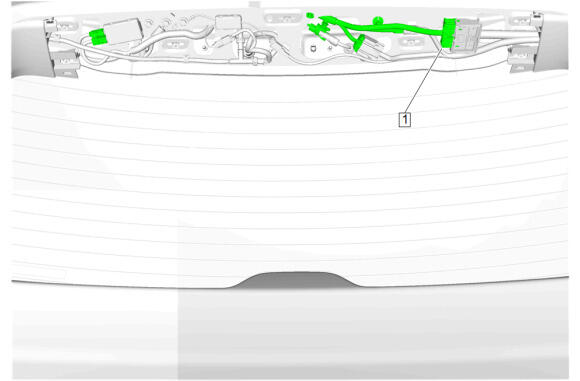

Connect the electrical connectors. (1)
Courtesy of GENERAL MOTORS COMPANY

Liftgate Upper Center Trim Finish Panel (1) - Install
