Fastener Specifications

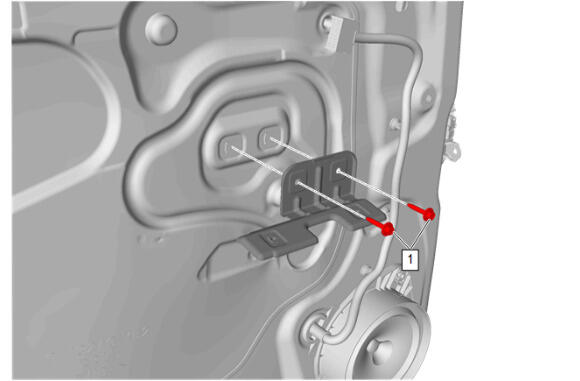

GM6480264Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Pull Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Bracket Bolt [4x] - - 2.5 N.m (22 lb in) Rear Side Door Armrest Pull Cup Bracket Replacement

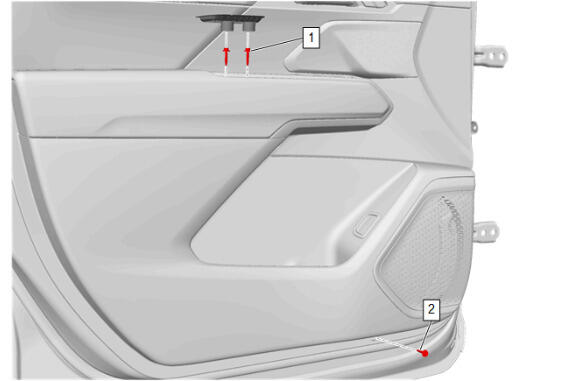

GM6480268Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Pull Cup Bolt [4x] - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation
2 Front Side Door Trim Panel Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation

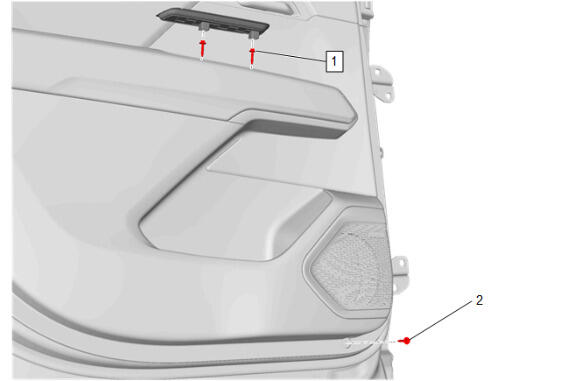

GM6480263Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Pull Cup Bolt [4x] - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation
2 Rear Side Door Trim Panel Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation

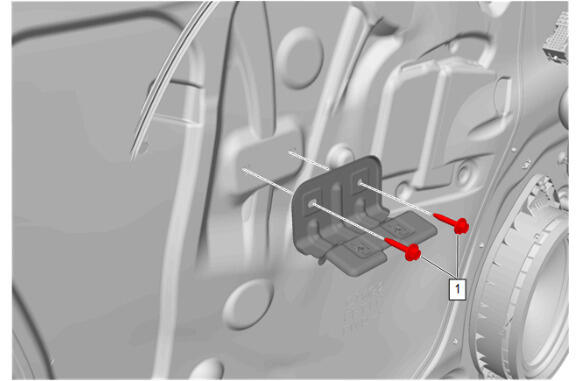

GM6480269Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Bracket Bolt [4x] - - 2.5 N.m (22 lb in) Front Side Door Armrest Bracket Replacement

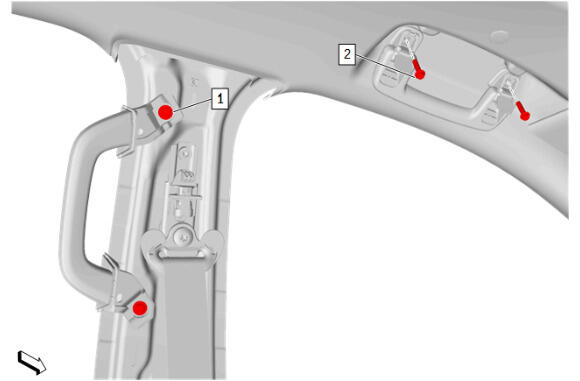

GM6480267Courtesy of GENERAL MOTORS COMPANY
Center Pillar Assist Handle & Roof Rail Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Center Pillar Assist Handle Bolt [4x] - - 9 N.m (80 lb in) Center Pillar Assist Handle Replacement
2 Roof Rail Assist Handle Bolt [4x] - - 9 N.m (80 lb in) Roof Rail Assist Handle Replacement

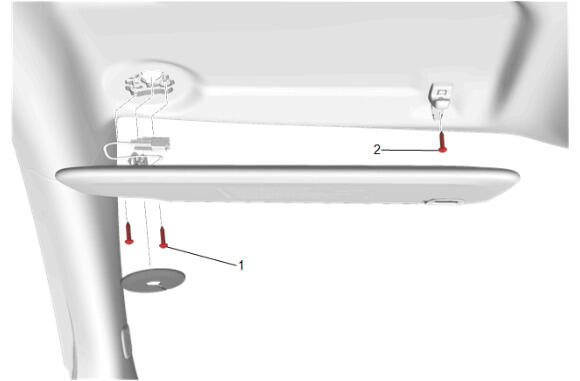

GM6480261Courtesy of GENERAL MOTORS COMPANY
Sunshade & Sunshade Support

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Bolt [4x] - - 2 N.m (18 lb in) Sunshade Replacement
2 Sunshade Support Bolt [2x] - - 2.5 N.m (22 lb in) Sunshade Support Replacement

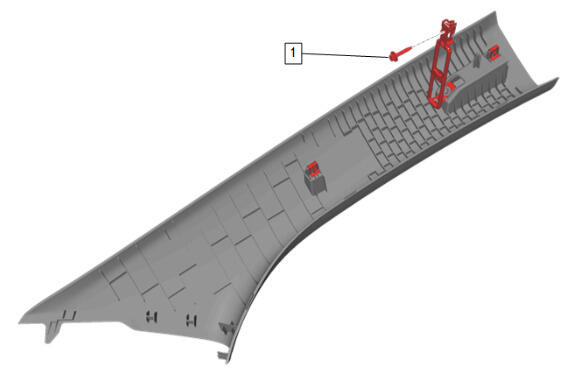

GM6480260Courtesy of GENERAL MOTORS COMPANY
Windshield Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Garnish Molding Bolt [2x] - - 2.5 N.m (22 lb in) Windshield Garnish Molding Replacement

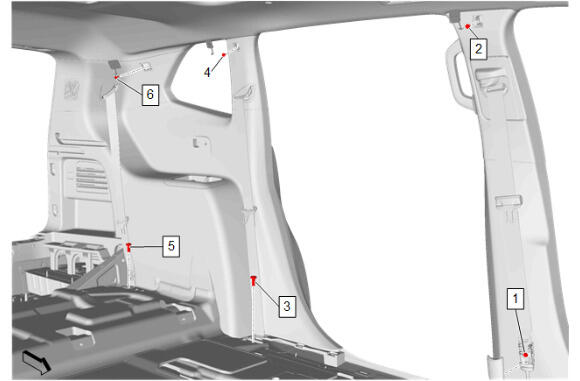

GM6480262Courtesy of GENERAL MOTORS COMPANY
Body Rear Corner Upper Garnish Molding & Center Pillar Upper Trim Panel & Quarter Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Anchor Plate Tensioner Bolt [2x] - - 5 N.m (44 lb in) Center Pillar Upper Trim Panel Replacement
2 Center Pillar Upper Garnish Molding Bolt [2x] - - 2.5 N.m (22 lb in) Center Pillar Upper Trim Panel Replacement
3 Rear Seat Belt Anchor Plate Bolt [2x] - - 45 N.m (33 lb ft) Quarter Upper Trim Panel Replacement
4 Quarter Window Trim Finish Panel Bolt [2x] - - 2.5 N.m (22 lb in) Quarter Upper Trim Panel Replacement
5 3rd Row Seat Belt Anchor Bolt [2x] - - 45 N.m (33 lb ft) Body Rear Corner Upper Garnish Molding Replacement
6 Body Rear Corner Upper Garnish Molding Bolt [2x] - - 2.5 N.m (22 lb in) Body Rear Corner Upper Garnish Molding Replacement

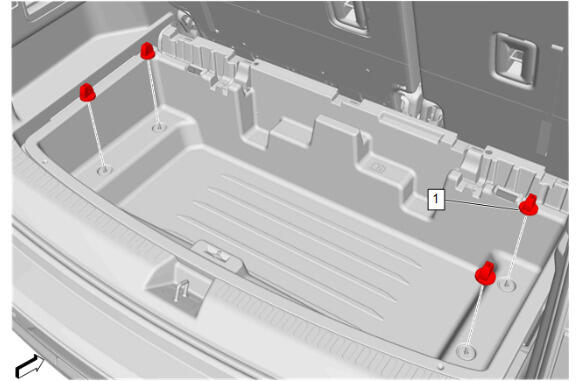

GM6465269Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Floor Stowage Compartment Divider

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Floor Stowage Compartment Divider Retainer [4x] - - 2.5 N.m (22 lb in) Rear Compartment Floor Stowage Compartment Divider Replacement

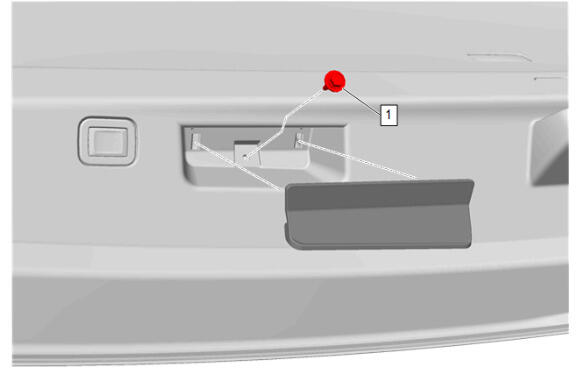

GM6480266Courtesy of GENERAL MOTORS COMPANY
Liftgate Lower Trim Finish Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Lower Trim Finish Panel Bolt - - 2.5 N.m (22 lb in) Liftgate Lower Trim Finish Panel Replacement

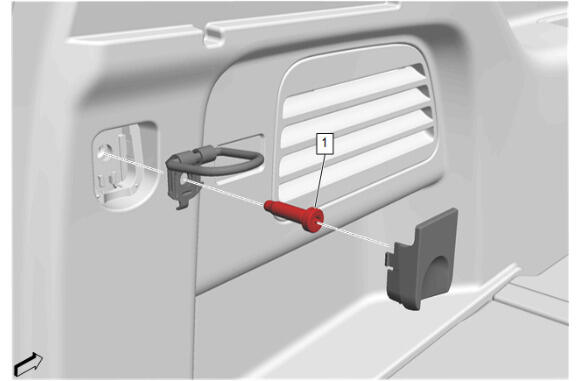

GM6480270Courtesy of GENERAL MOTORS COMPANY
Cargo Tie Down Loop

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cargo Tie Down Loop Bolt [4x] - - 15 N.m (11 lb ft) Cargo Tie Down Loop Replacement
