Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

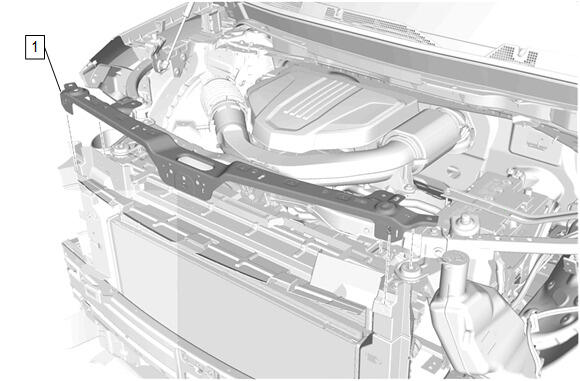

Hood Front Bumper Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

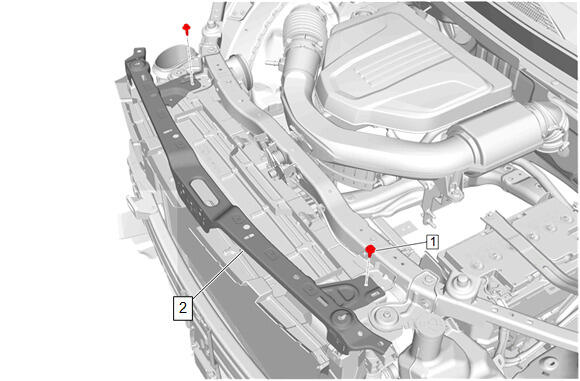

Hood Front Bumper Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

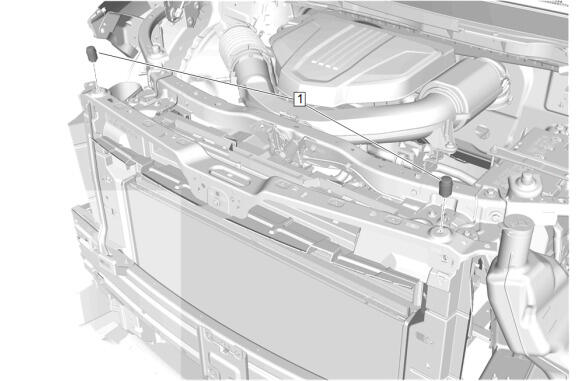

Hood Front Bumper (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Hood Secondary Latch Release Cable (3) - Install
Hood Secondary Latch Release Handle Bolt (2) - Install and tighten [2x] - Fastener Specifications
Hood Primary Latch Release Cable (3) @ Hood Secondary Latch Release Cable Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

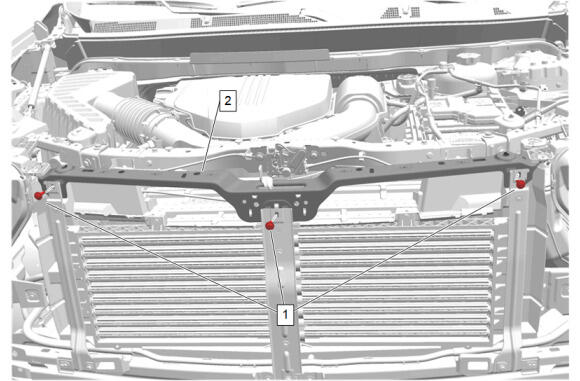

Hood Front Bumper Bracket Support Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

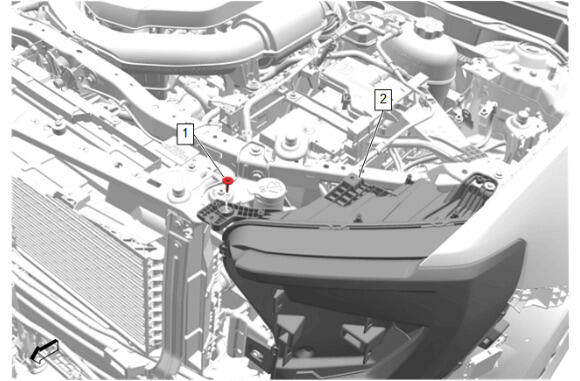

Headlamp Bolt- Left Side and Right Side (1) @ Hood Front Bumper Bracket - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)
