Installation Procedure

  1. GM6467043Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument panel (1) in the vehicle.

  2. Instrument Panel (1) - Install
  3. Connect the electrical connectors and install the wiring harness retainers as necessary.
  4. GM6467042Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Windshield Defroster Outlet Duct Bolt (1) - Install and tighten [3x] - Fastener Specifications

  5. GM6478732Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  6. Instrument Panel Airbag Bolt (2) - Install and tighten - Fastener Specifications
  7. Instrument Panel Bolt (1) - Install and tighten [2x] - Fastener Specifications
  8. GM6467040Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications

  9. Instrument Panel Bolt (1) - Install and tighten [5x] - Fastener Specifications
  10. GM6467039Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [3x] - Fastener Specifications

  11. GM6467038Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [3x] - Fastener Specifications

  12. Steering Column Assembly - Install - Steering Column Removal and Installation
  13. GM6475077Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  14. Dimmer Switch (1) - Install
  15. GM6467061Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (2) - Install

  16. Instrument Panel Trim Pad Bolt (1) - Install and tighten [3x] - Fastener Specifications
  17. GM6467060Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Bolt (1) - Install and tighten [8x] - Fastener Specifications

  18. GM6467053Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install

  19. Instrument Panel Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
  20. GM6467052Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [3x] - Fastener Specifications

  21. GM6467066Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Right Side (2) - Install

  22. Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [3x]
  23. GM6467059Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (2) - Install

  24. Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] - Fastener Specifications
  25. GM6467058Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (3) - Install

  26. Data Link Connector (2) - Install
  27. Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  28. GM6467063Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Quantity of retainers may vary based on option content.

    Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install

  29. Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [4x]
  30. GM6467037Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Air Outlet Bezel - Right Side (2) - Install

  31. Instrument Panel Air Outlet Bezel Bolt (1) - Install and tighten [4x] - Fastener Specifications
  32. GM6467068Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Install

  33. GM6467036Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Air Outlet Bezel - Left Side (2) - Install

  34. Instrument Panel Air Outlet Bezel Bolt (1) - Install and tighten [4x] - Fastener Specifications
  35. GM6467067Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  36. GM6467044Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (2) - Install

  37. Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [4x] - Fastener Specifications

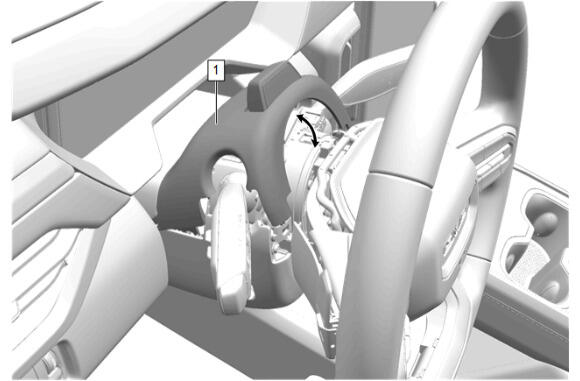

  38. GM6472501Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Upper Trim Cover (1) - Install

  39. GM6455254Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  40. Instrument Panel Cluster Control Module (2) - Install
  41. Instrument Cluster Bolt (1) - Install and tighten [2x] - Fastener Specifications
  42. GM6467086Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  43. Instrument Panel Trim Plate Applique - Right Side (1) - Install
  44. GM6467084Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (1) - Install

  45. GM6467085Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Left Side (1) - Install

  46. GM6467083Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install

  47. GM6467087Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Bracket (2) - Install

  48. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [10x] - Fastener Specifications
  49. GM6463571Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  50. Radio Control (2) - Install
  51. Radio Control Bolt (1) - Install and tighten [4x] - Fastener Specifications
  52. Front Floor Console - Install - Front Floor Console Removal and Installation
  53. GM6467055Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Connect the electrical connector.

  54. Instrument Panel Instrument Cluster Hood (2) - Install
  55. Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [5x] - Fastener Specifications
  56. GM6455252Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  57. Radio Front Center Speaker (2) - Install
  58. Radio Front Center Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications
  59. GM6455253Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install

  60. GM6467054Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  61. Instrument Panel Extension (1) - Install
  62. GM6457489Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  63. Radio Front Speaker - Left Side and Right Side (2) - Install [2x]
  64. Radio Front Speaker Bolt - Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
  65. GM6457488Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Grille - Left Side and Right Side (1) - Install [2x]

  66. GM6465288Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  67. Windshield Garnish Molding Bolt - Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  68. Align the retainer clips with the slots in the A pillar and press the windshield garnish moldings (1) into place.
  69. Windshield Garnish Molding - Left Side and Right Side (1) - Install [2x]
  70. Enable the SIR System. SIR Disabling and Enabling
